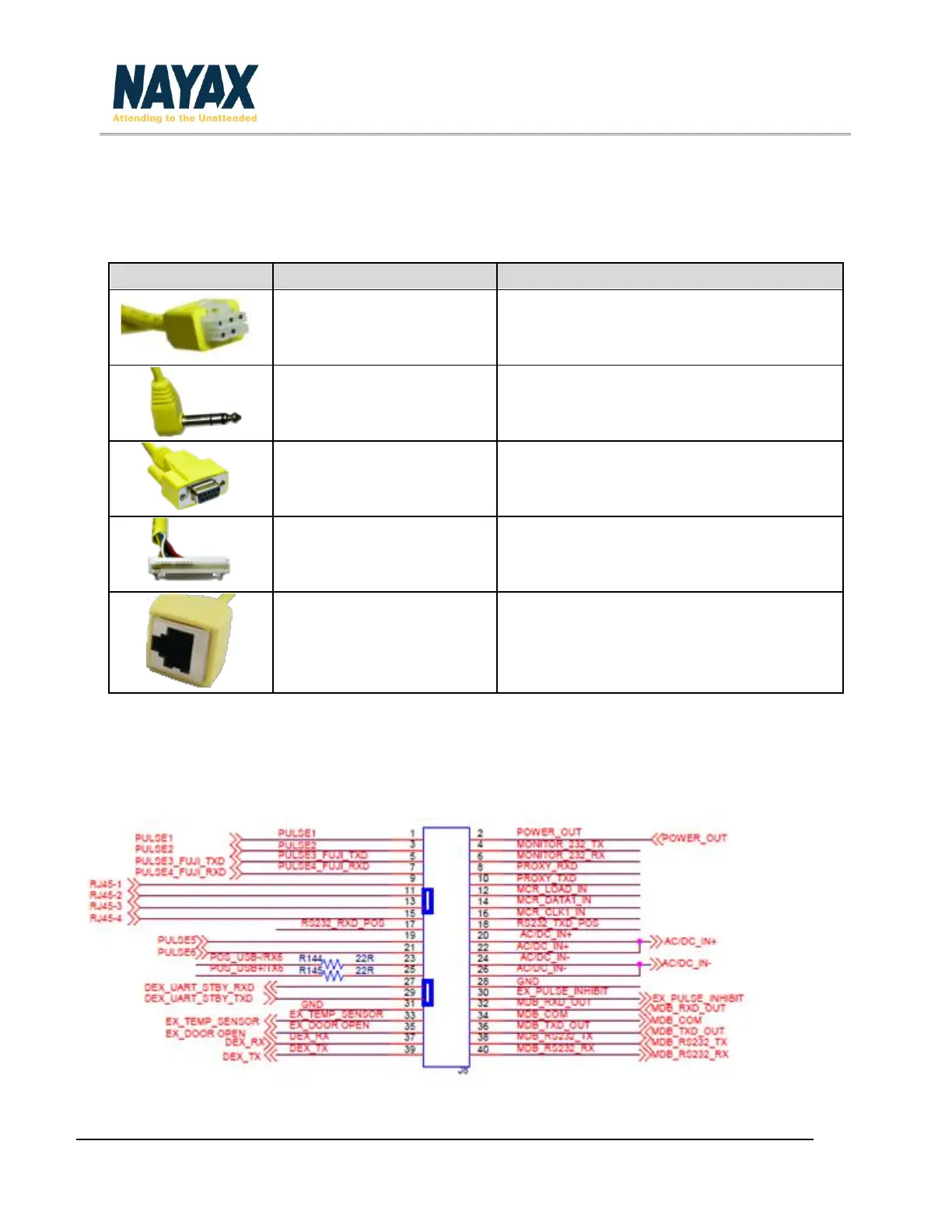

Device Cables
Nayax provides different configuration cables to suit different machines. The below table refers to
each cable and its configuration.
Connector
Connect to
MDB
MDB at vending machines
DEX
DEX
RS232 DB9 Female Output
Serial
Device 40-pin
Nayax Onyx
LAN
LAN cable
Device Connector Scheme (40-Pin)
