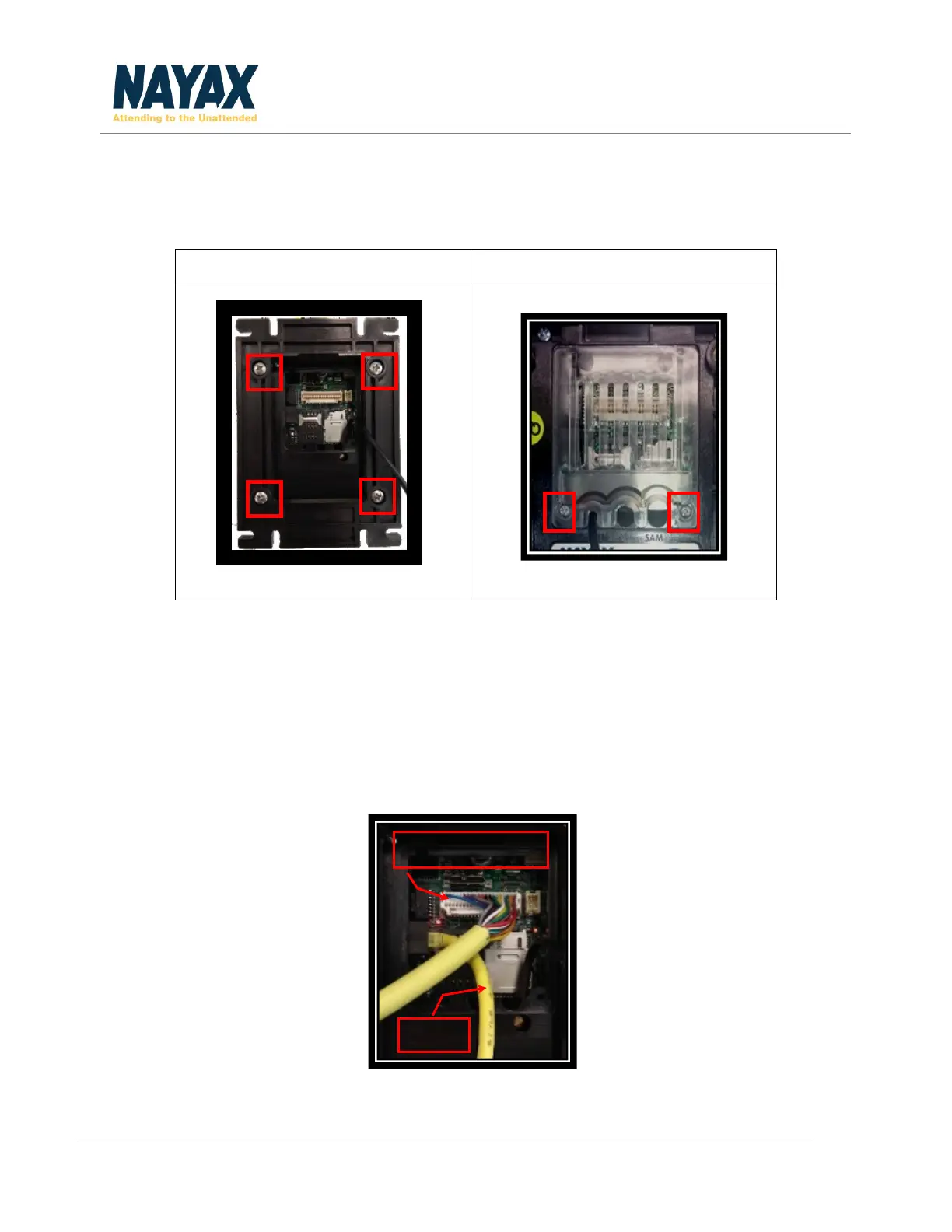

VPOS Touch Installation Guide VPOS_Touch_Installation_Guide.docx Page 8
*The above image refers to an older version of the VPOS Touch model
Step 2. Connect VPOS Touch cables
Connect the 40-pin connector plug to the VPOS Touch
In case a coin mechanism is connected to the machine:
a. Disconnect the coin mechanism connector from the machine
b. Connect the coin mechanism connector to the VPOS Touch cable
Connect MDB/JVMA/Fuji connector to the machine’s connector
Image 1 – Back plate + Screws
Image 2 - Rear plastic closure + Screws*
Device Connector
LAN
