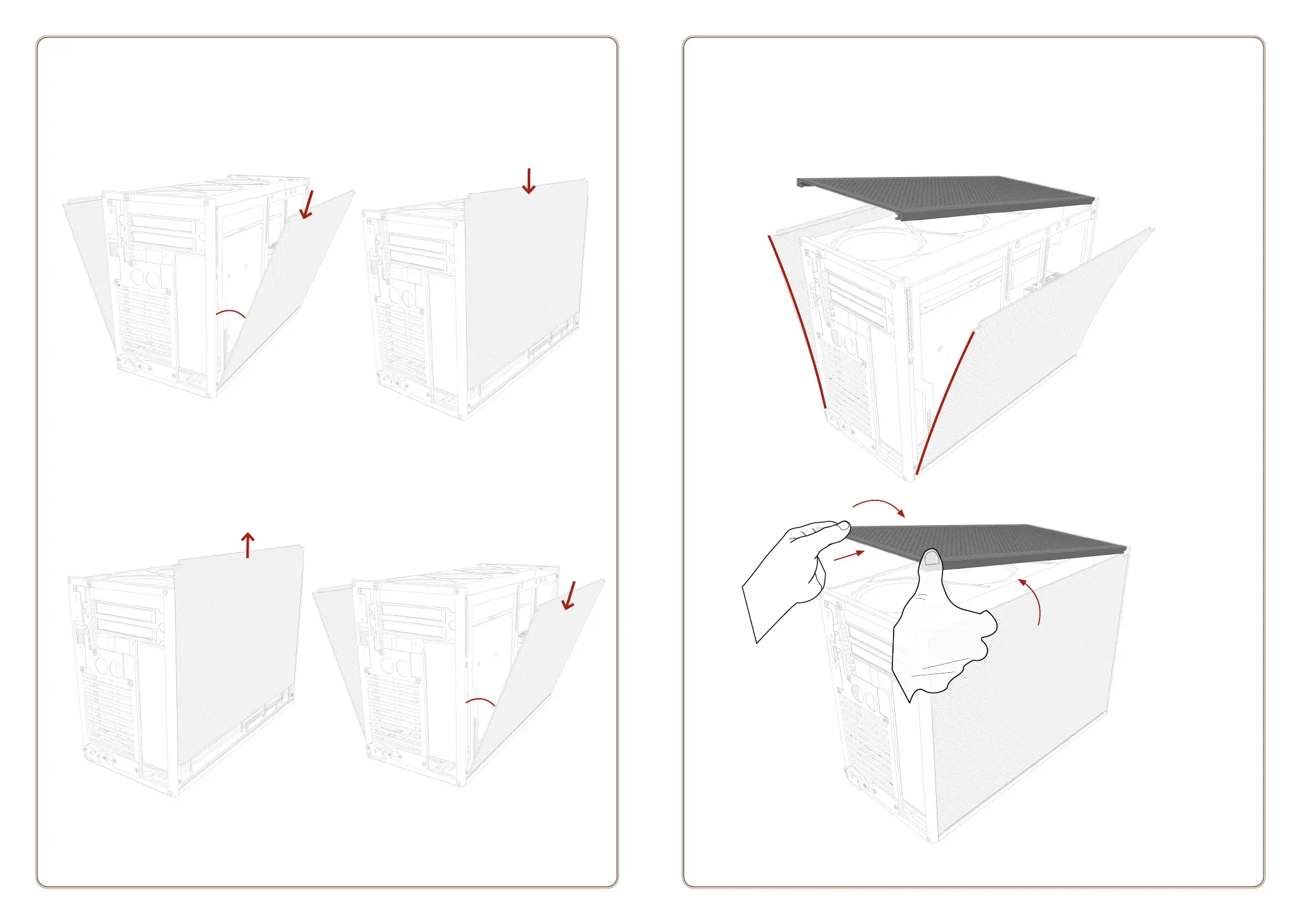

Flatpack Assembly Manual
30°
30°
Install
Remove
Push down
Lift 1mm rst
Flatpack Assembly Manual
The side panels are slightly curved for a tighter t.
Step 1 Side Panel
Step 2 Top Panel
