Panther Fuel Controller Quick Reference Guide - 1651
Cable Routing Process for Models with Two Forecourt
Interface Boards
2
3) Rotate lower board outward
4) Route cables underneath chassis as needed
5) Tie wrap cables as needed
6) Rotate lower board inward
7) Tighten thumb screws
8) Reconnect Power and USB cables to the lower board
4
3

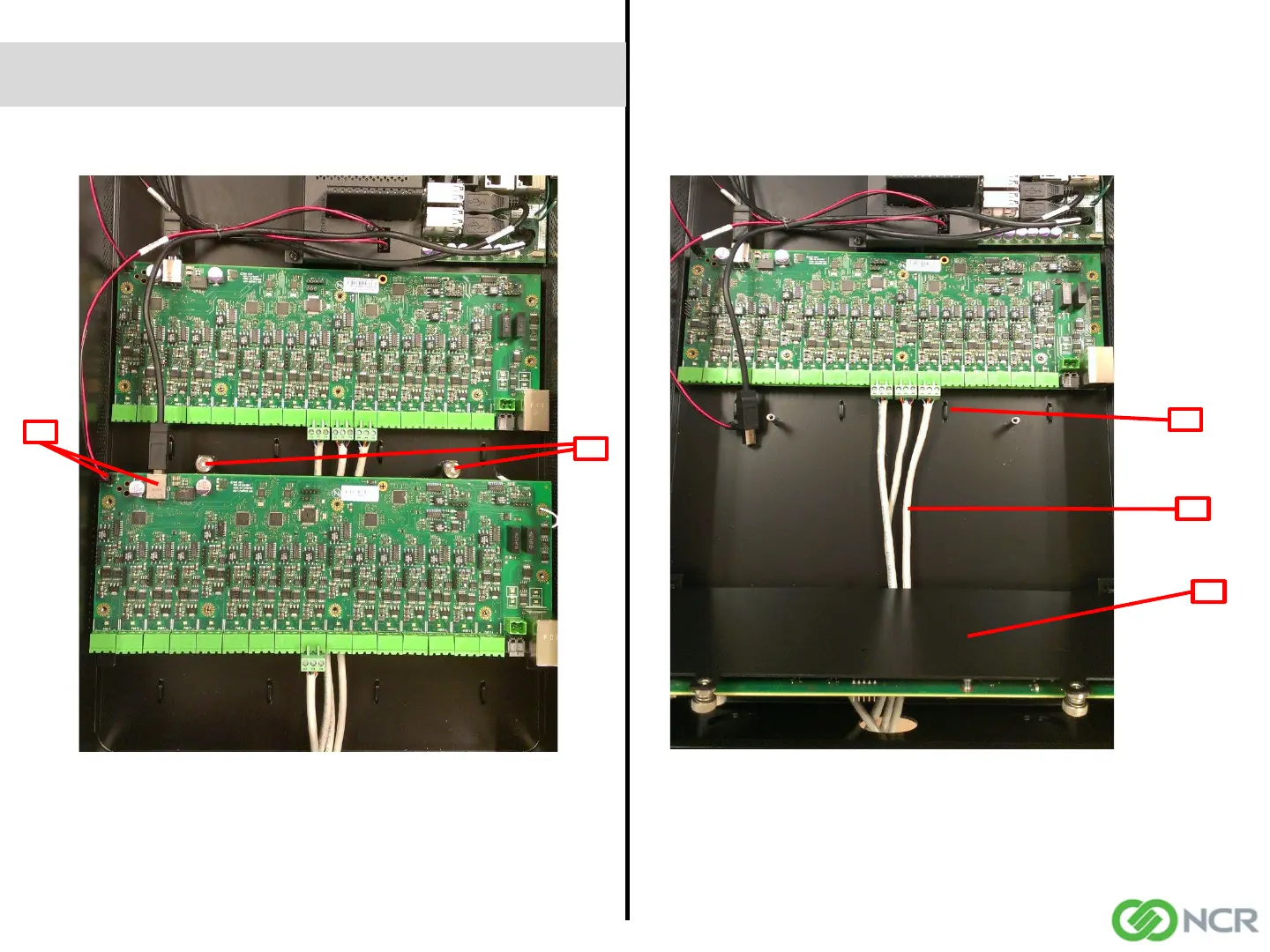

To route cables under the lower Forecourt Interface Board:
1) Remove Power and USB cables from the lower board
2) Loosen thumb screws
1
Page 4
Lower
Board
5
497-0503689 Rev C
