8 Datalogic 1500i Scanner (R1.2andR2.0)

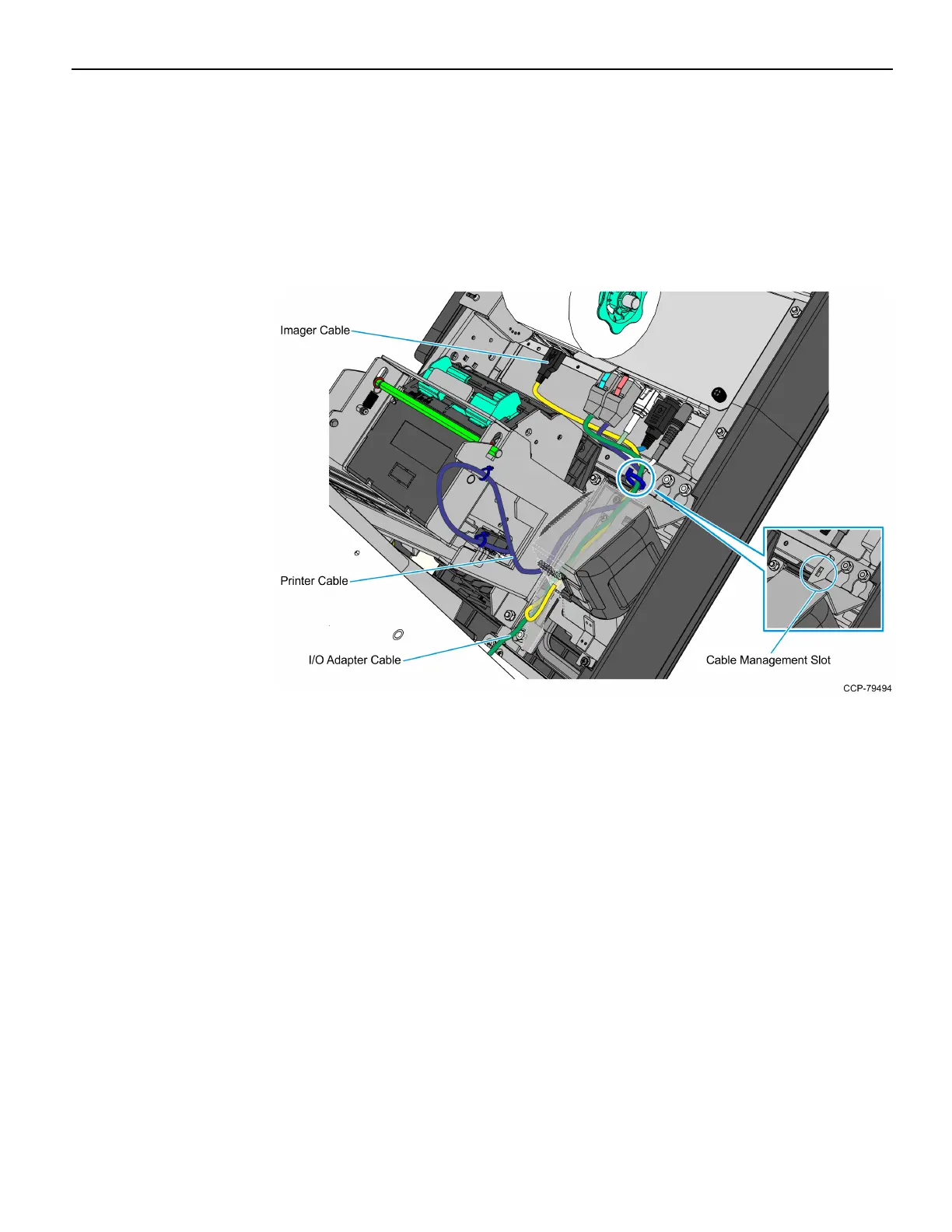

e. Route and tuck the following cables together on the left side of the Imaging
Scanner assembly and use a cable tie to secure the cables to the cable
management slot shown in the following image.
• Imager USBcable
• Printer USB and Power cable
• I/OAdapter Power cable
