Removing the Base
NOTE: Always remove the Base when shipping the LCD.

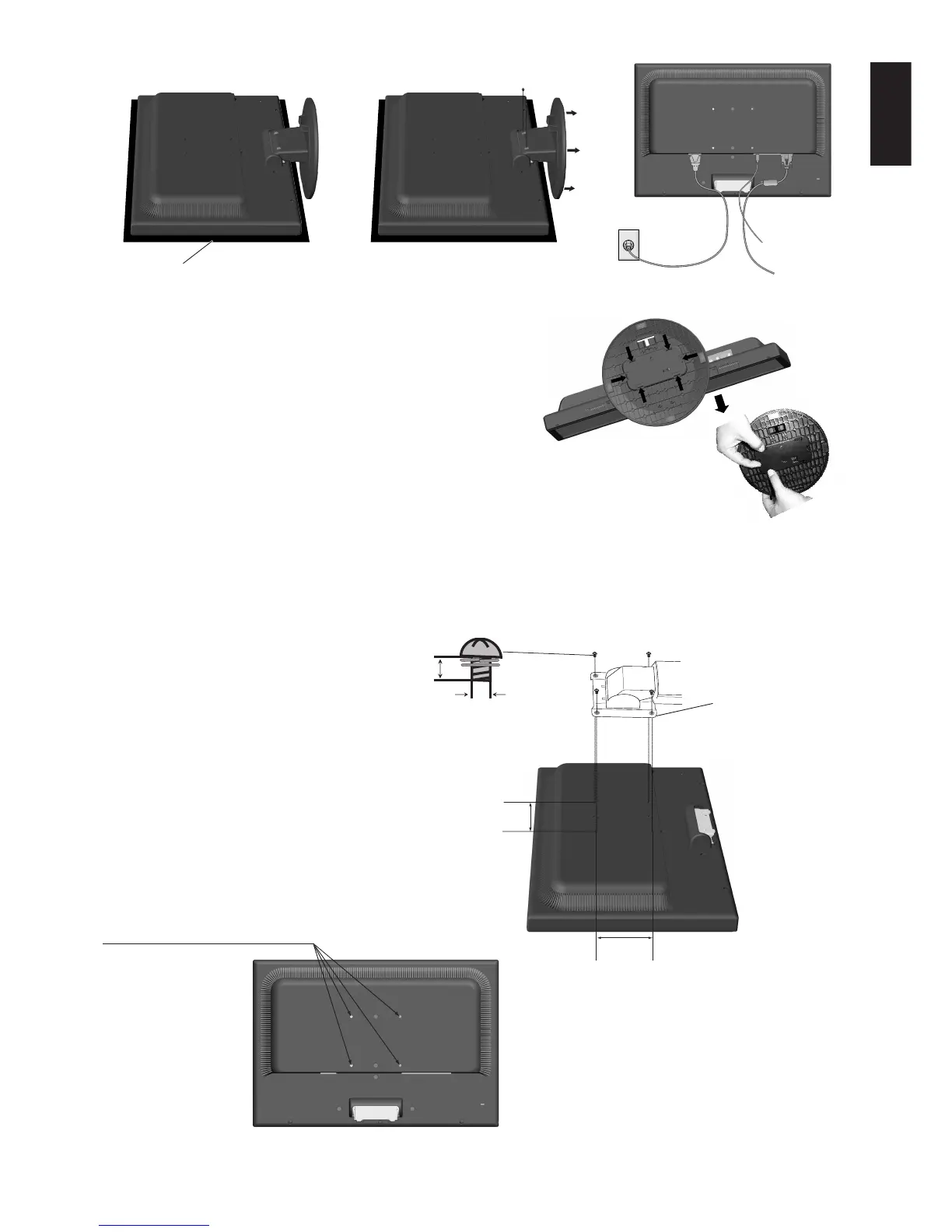

1. Place monitor face down on a non-abrasive surface (Figure R.1).
2. While using your fingers, press the 3 locking tabs of left or right side
at the same time to unlock the Base.
3. While using your fingers, press the 3 locking tabs of another side
at the same time to unlock the Base.
4. Pull out the unlocked Base.
Connecting a Flexible Arm
This LCD monitor is designed for use with a flexible arm.
Please use screws (4pcs) as shown in the picture when installing. To meet the safety requirements, the monitor must be
mounted to an arm which, guaranties the necessary stability under consideration of the weight of the monitor.
The LCD monitor shall only be used with an approved arm (e.g. GS mark).
NOTE: The mounting stand shall be able to sustain at least 21 kg and UL certified.
4-SCREWS (M4)
(MAX depth: 10 mm)
If use other screw,
check depth of hole.
Weight of LCD assembly: 4.8 kg (MAX)
Specifications
Tighten all screws
100 mm
100 mm
Thickness of Bracket
(Arm) 2.0 ~ 3.2 mm
12 mm
M4
4 x 12 mm with lock washer
and flat washer
Locking tabs
