NEC AccuSync LCD24WMCX User Manual

English-6
Connecting to DVD player, Stereo Amplifier
1. Turn off the power to the monitor.
2. For the DVD player with component out: Connect the Component connecter (RCA) on the LCD monitor, use a
separately available RCA connector cable (Figure D).
For the DVD Player with HDMI out: Connect HDMI cable to the DVD player (Figure D).
NOTE: Refer to your DVD player user’s manual for more information.
For the Stereo Amplifier: Connect HDMI cable to the DVD player. Connect the stereo RCA cable to the SPDIF
(COAXIAL) connector on the LCD monitor and the audio input on the amplifier (Figure D).
NOTE: Refer to your amplifier user’s manual for more information.
3. Keep all cables together and attach the Cable Holder into the Base.
4. Connect the power cord to the power outlet.
5. Turn the monitor on using the front power button.
6. Select input source by Source button or Input Select on OSD menu.
NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.
Figure TS.1
Tilt
Grasp both sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).
HDMI Connector
RCA
RCA
To Audio
From HDMI Output
DVD
External Speakers
Amplifier
Left Audio
Right Audio
RCA

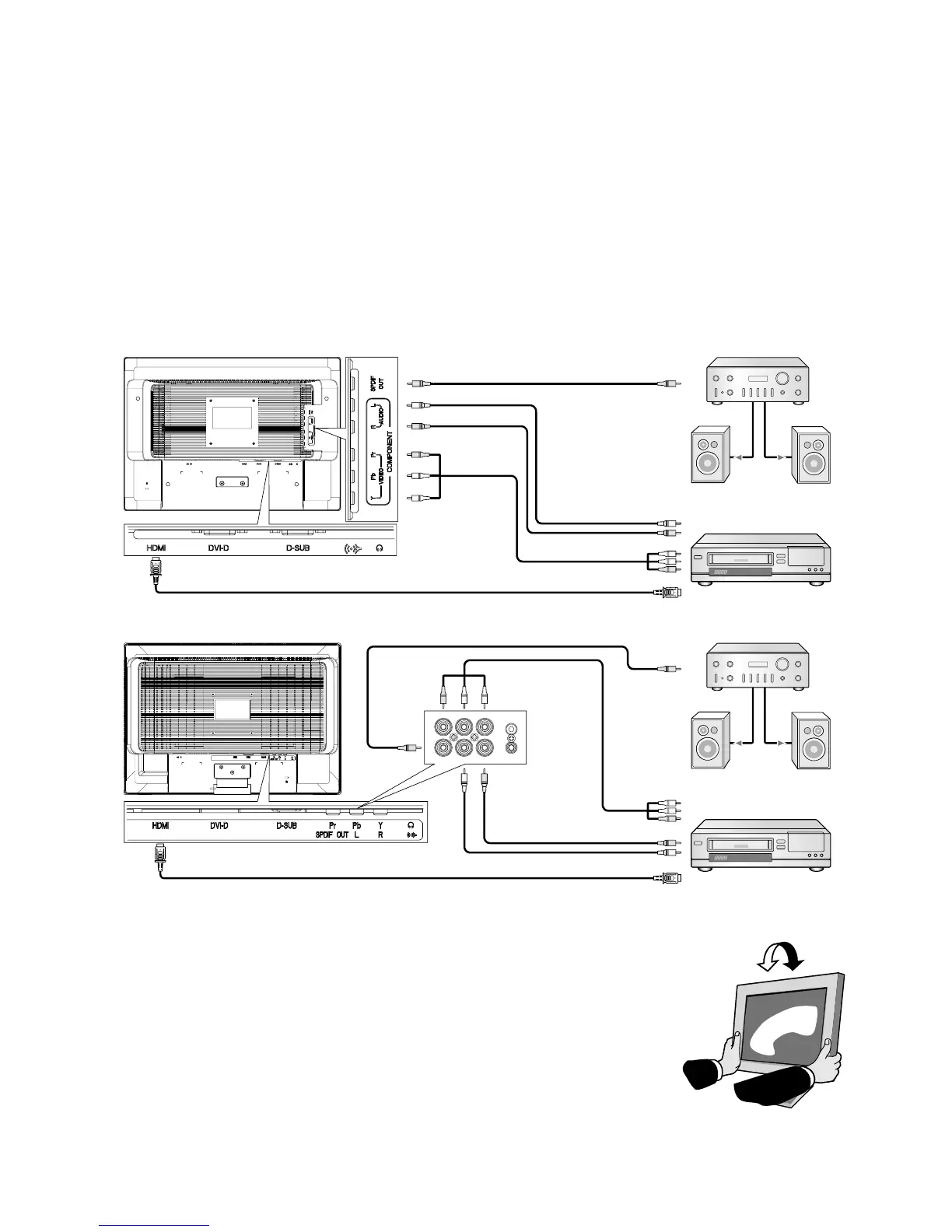

Figure D
LCD22WMGX
HDMI Connector
RCA
To Audio
From HDMI Output
DVD
External Speakers
Amplifier
Left Audio
Right Audio
RCA
LCD24WMCX
RCA
