5.

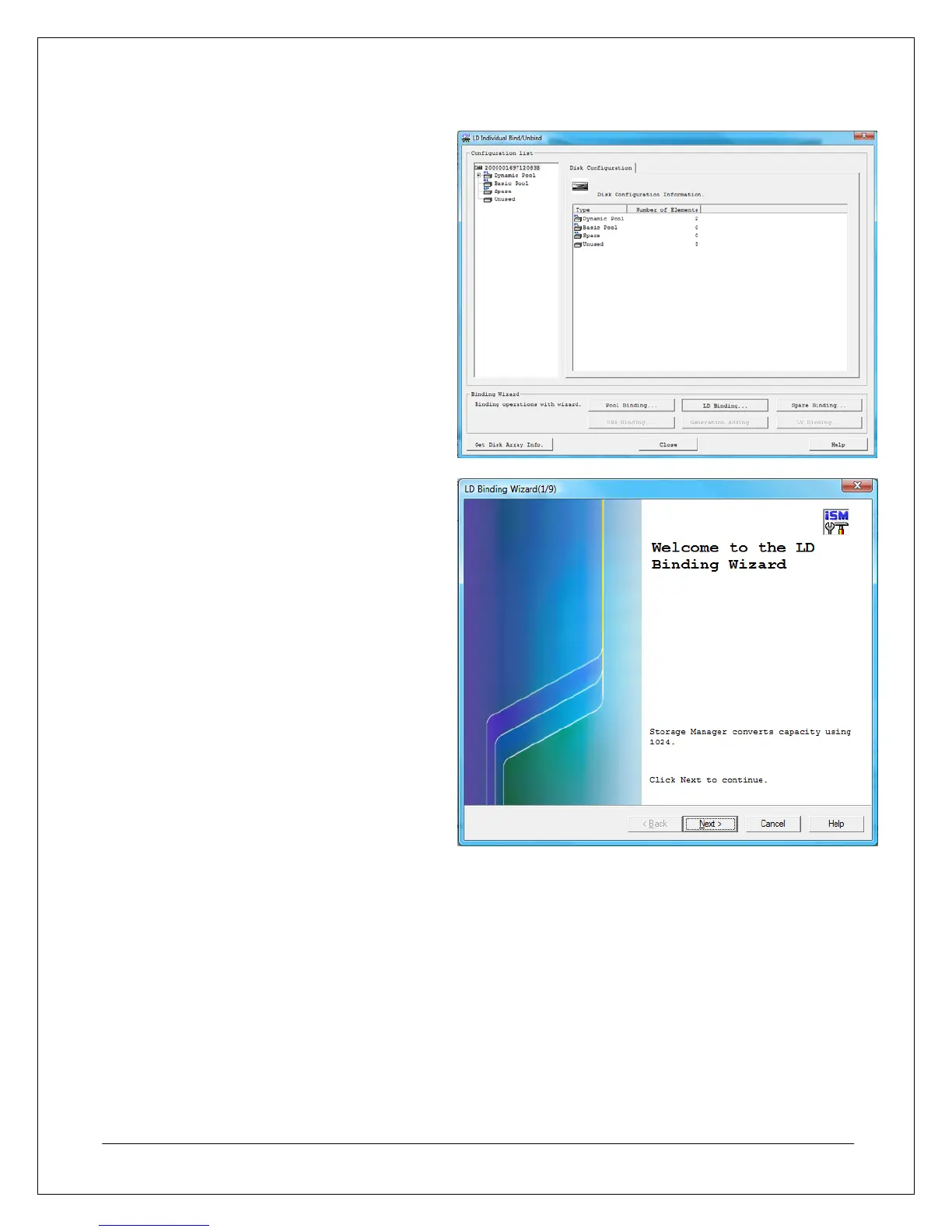

At the LD Individual Bind/Unbind window,
select
LD Binding
under the
Binding
Wizard
section at the bottom.
NEC D3/D4 Quick Start Guide
42
6.
At the LD Binding Wizard Wel
come
window, click
Next
to conti
nue.
