English
E552
AC POWER
6
7
5
4
8
9
2
1

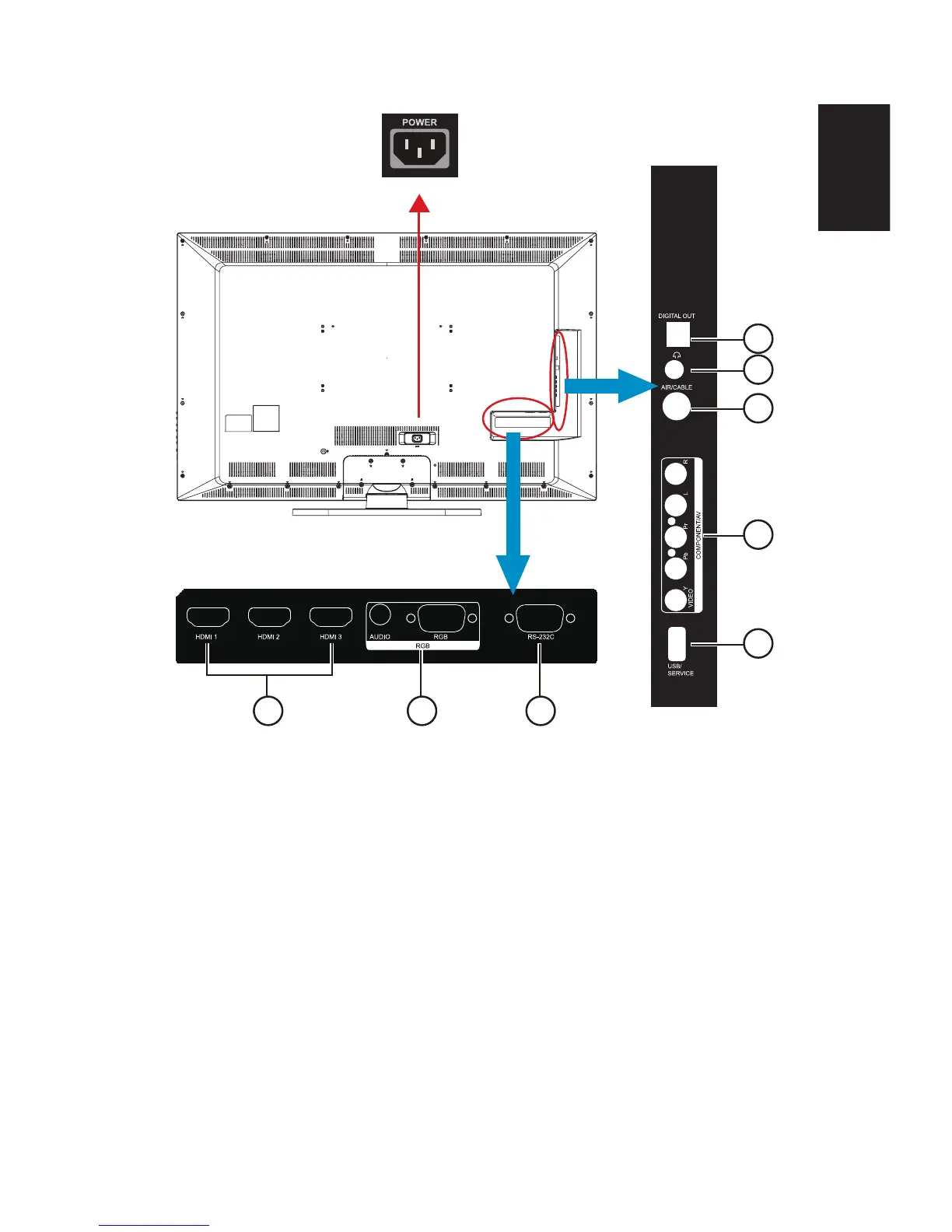

1� HDMI – Connect the primary source for digital video such as a DVD
multimedia player or set top box through this all digital connector�
2� RGB/AUDIO – Connect the video and audio cables from a computer here�
3� AV – Connect the primary source for composite video devices, such as
a VCR or video game� Use the white and red connectors to connect the
external audio from the same source�
4� COMPONENT (Y-PbPr with Audio L/R) – Connect the primary source for
component video devices such as a DVD Player or set top box here� Use
red for Pr, blue for Pb, green for Y, red for right audio (R) and white for left
audio (L) inputs�
5� AIR/CABLE – Connect to an antenna or digital cable (out of-the-wall, not
from Cable Box) for the digital tuner�
6� DIGITAL OUT – When a digital audio signal is associated with the input
selected for viewing, the digital audio will be available on this DIGITAL
OUT connection to your home theater system�
7� Earphone Output – Connect to the headphones� When the headphone is
inserted to the plug, all the speakers will be muted�
