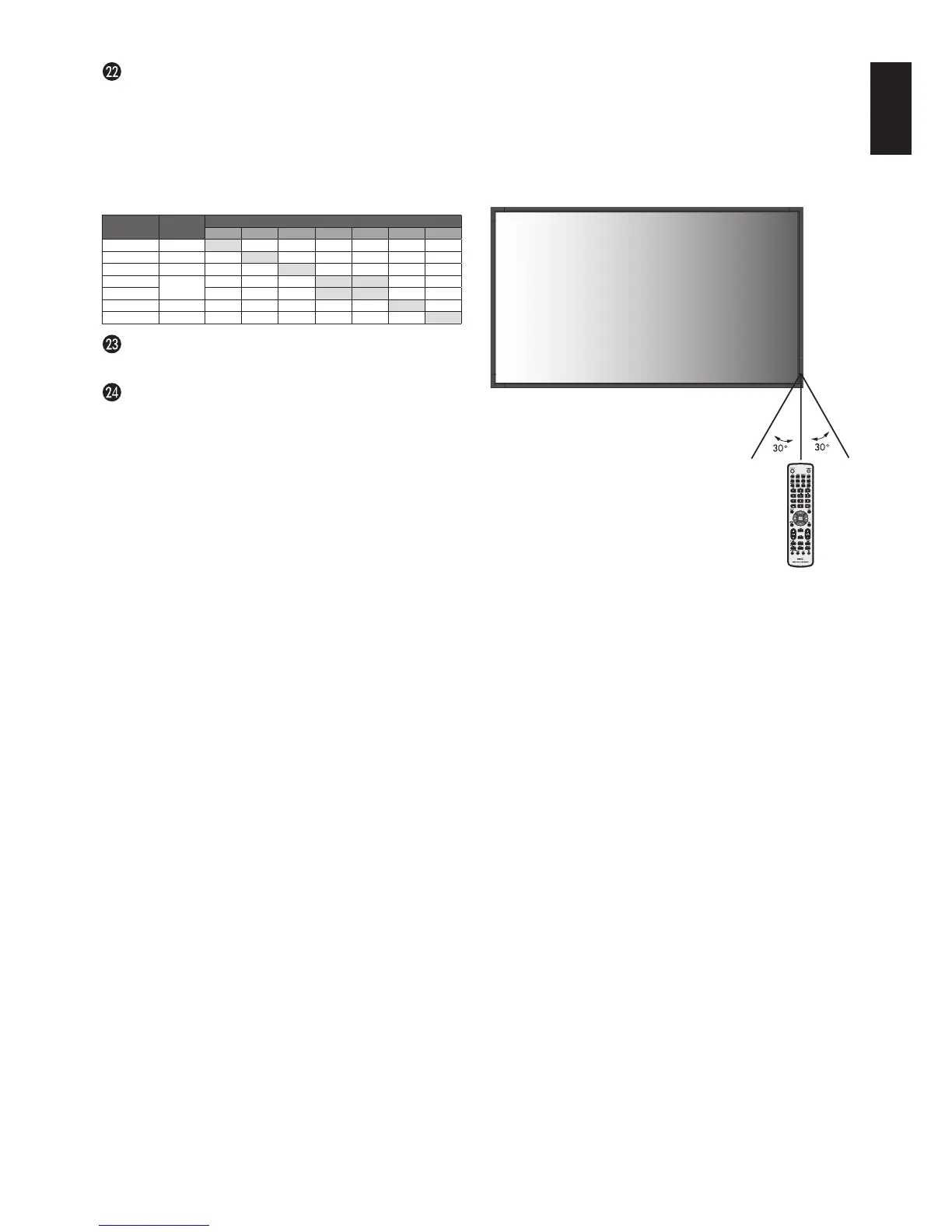

Operating Range for the Remote
Control
Point the top of the remote control toward the LCD monitor’s
remote sensor during button operation.
Use the remote control within a distance of about 7 m (23 ft.)
from remote control sensor or at a horizontal and vertical
angle of within 30° within a distance of about 3.5 m (10 ft.).
PIP (Picture In Picture) button
ON/OFF button: Toggle switches between PIP, POP,
PICTURE BY PICTURE-ASPECT and PICTURE BY
PICTURE-FULL. See page 22.
INPUT button: Selects the “picture in picture” input signal.
CHANGE button: Replaces to the main picture and sub
picture.
NOTE: Enable to change the sub picture size by pressing
SET/POINT ZOOM button during PIP mode.
Main picture Connector
Sub picture
DPORT DVI HDMI VGA
Y/Pb/Pr
OPTION HDMI2
DPORT DisplayPort No Yes Yes Yes Yes Yes Yes
DVI DVI-D Yes No Yes Yes Yes Yes Yes
HDMI HDMI Yes Yes No Yes Yes Yes Yes
VGA
D-Sub
Yes Yes Yes No No Yes Yes
Y/Pb/Pr Yes Yes Yes No No Yes Yes
OPTION Option Yes Yes Yes Yes Yes No Yes
HDMI2 HDMI2 Yes Yes Yes Yes Yes Yes No
REMOTE ID button
Activates REMOTE ID function.
MTS button*
1
*1: This button’s action depends on which option board you use.
Refer to the option board’s manual for further information.
*2: This function depends on which option board you use.
*: Button with no description does not function.
Caution: Important, the remote control
system may not function
when direct sunlight or strong
illumination strikes the remote
control sensor or when there is
an object in the path.
Handling the remote control
• Do not subject to strong shock.
• Do not allow water or other liquid to splash
the remote control. If the remote control gets
wet, wipe it dry immediately.
• Avoid exposure to heat and steam.
• Other than to install the batteries, do not open the remote
control.
