2.4 DTU-16-1 TEL
This digital nondisplay Multiline Terminal has 16 programmable line
keys (each with a 2-color LED), eight function keys, a built-in
speakerphone, headset jack, a large LED to indicate incoming calls
and messages, and compatibility with ADA-U, APA-U, APR-U,
CTA-U, CTU(C)-U, CTU(S)-U, HFU-U, or VDD-U Unit.
The DTP-16-1 TEL can also be used with the Electra Elite 48
system.
A maximum of 31 DTU/DTP-16-1 terminals can be installed in an
Electra Elite 48 system.
The combined total of all Electra Elite Multiline Terminals that can
be installed in an Electra Elite 48 system is 32.

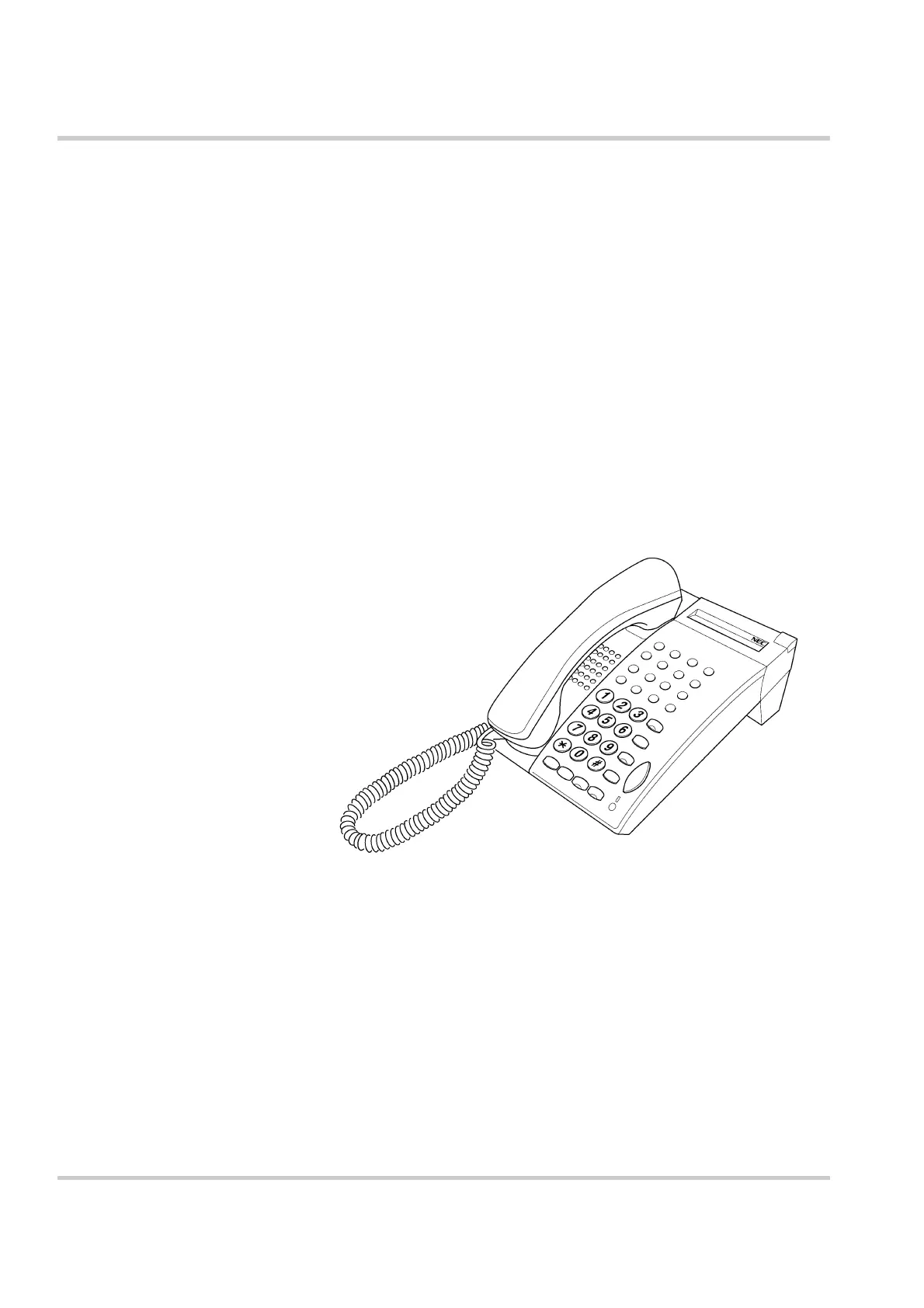

Figure 6-4 DTU-16-1 TEL Multiline Terminal
