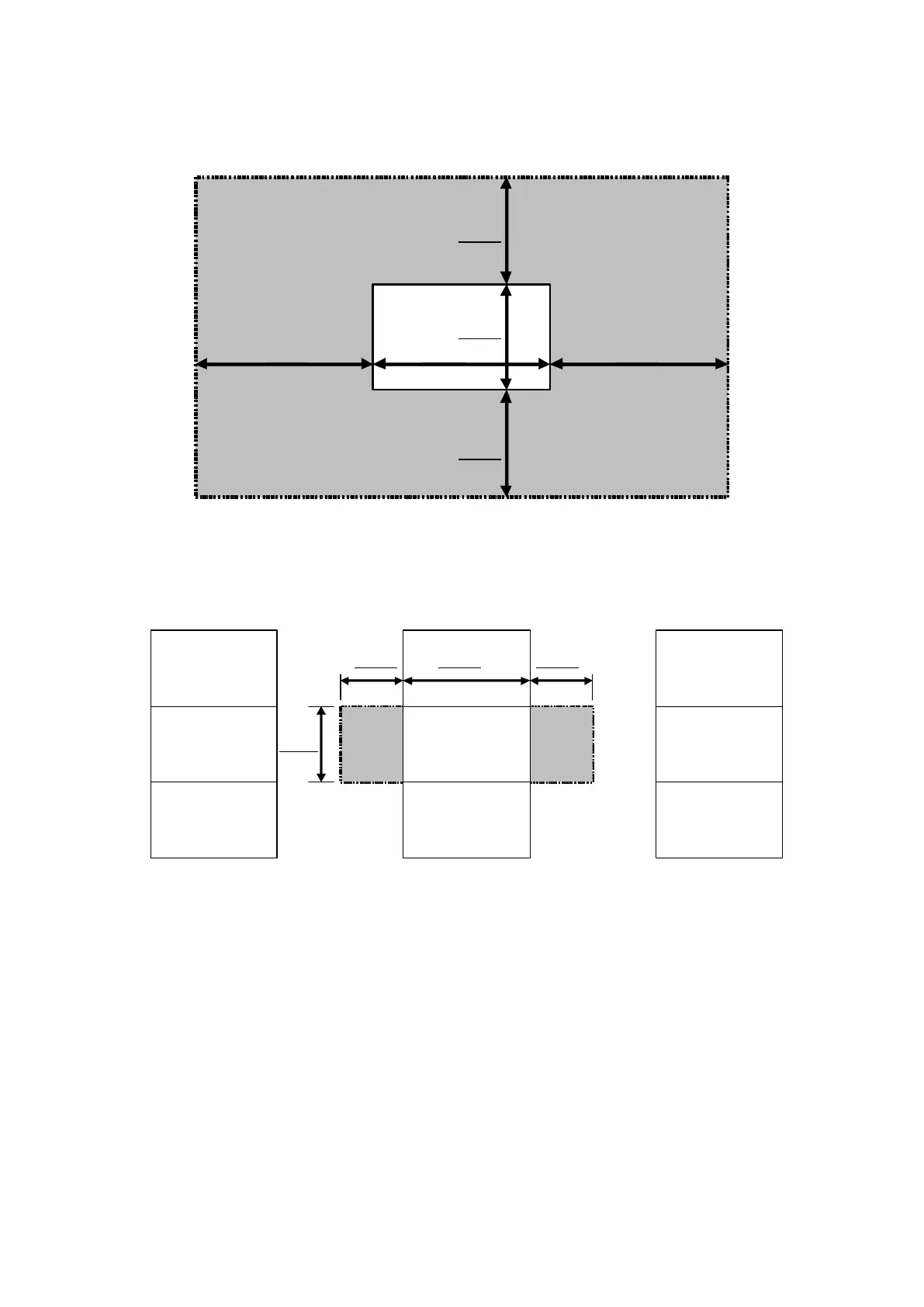

Installation area
・ Area for standalone installation: 5.4 m
2
Figure 5.1.1 Standalone Installation
・ Area for coupled installation: 1.2 m
2
Figure 5.1.2 Coupled Installation
1.0 m
0.6 m
1.0 m 1.0 m
0.6 m
0.6 m
Rack
0.6m
1.0 m 0.5 m 0.5 m
(Rack)
Front
Rear
(Rack)
Front
Rear
(Rack)
Front
Rear
(Rack)
Front
Rear
(Rack)
Front
Rear
(Rack)
Front
Rear
(Rack)
Front
Rear
(Rack)
Front
Rear
