2. M310 Component Selection (2)

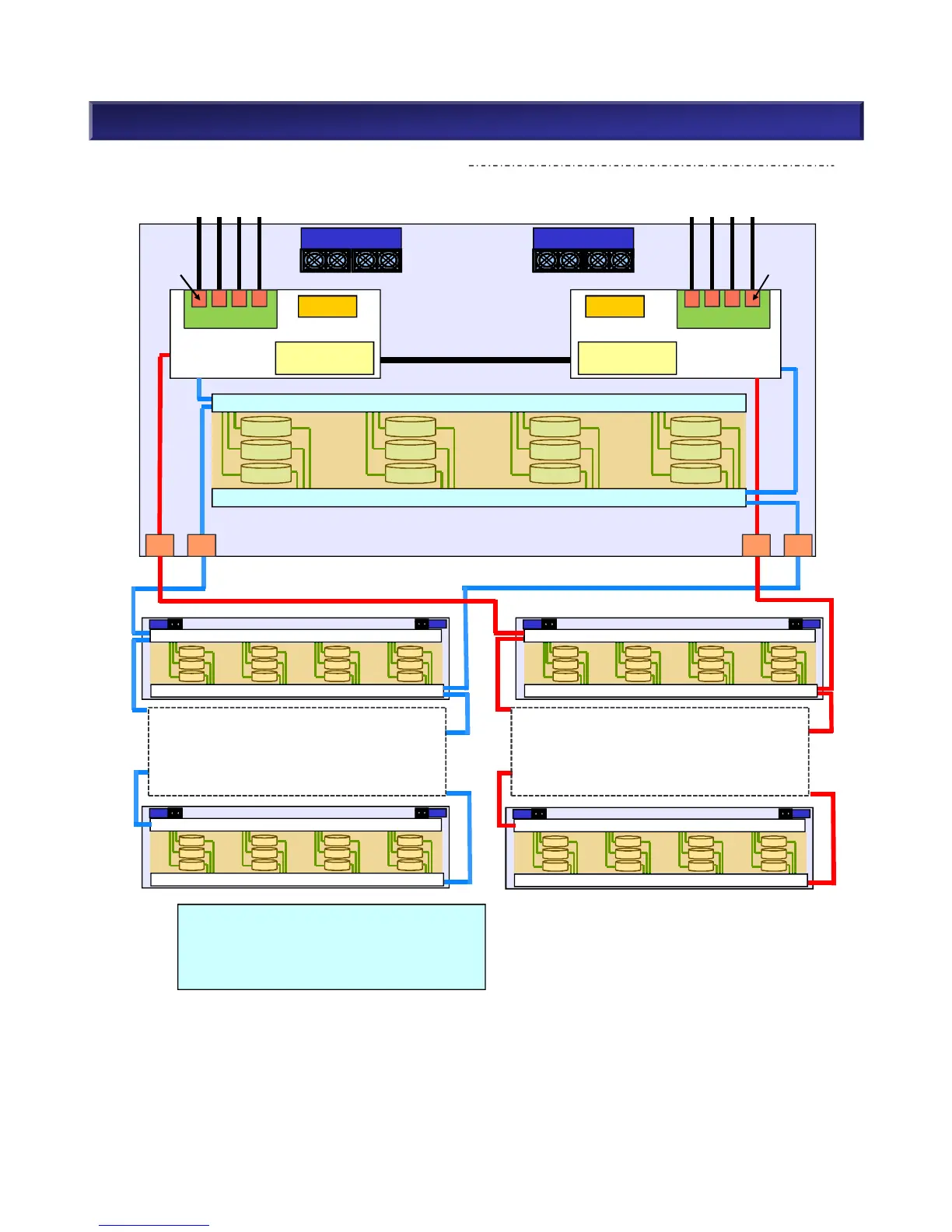

n Overview : M310 Disk Array (3.5”)
32
NEC Confidential
Controller
BBU
Base Unit
NL-SAS HDD/SAS SSD
Controller
Cache
12/24GB
BBU
Cache
12/24GB
DE#00(Build-in)
DISK Port
Switch
Switch
NL-SAS HDD/SAS SSD
Switch
Switch
NL-SAS HDD/SAS SSD
Switch
Switch
NL-SAS HDD/SAS SSD
DE#01 DE#10
・
・
・
DE#09
Switch
Switch
NL-SAS HDD/SAS SSD
・
・
・
DE#19
Host Port Card
Fan
Power Supply
Fan
Power Supply
SFP
SFP
Host Port Card
DISK Port
Max. 240 HDDs supported.
Max. 19 disk enclosures.
Max. 10 disk enclosures per disk
port.
