NEC M282X Installation Guide

NEC Display Solutions of America, Inc.
M282X/M322X/M402X Installation Guide
Ceiling Mounted and Desktop Rev 1.2
www.necdisplay.com M282X, M322X, M402X Page 2 of 6

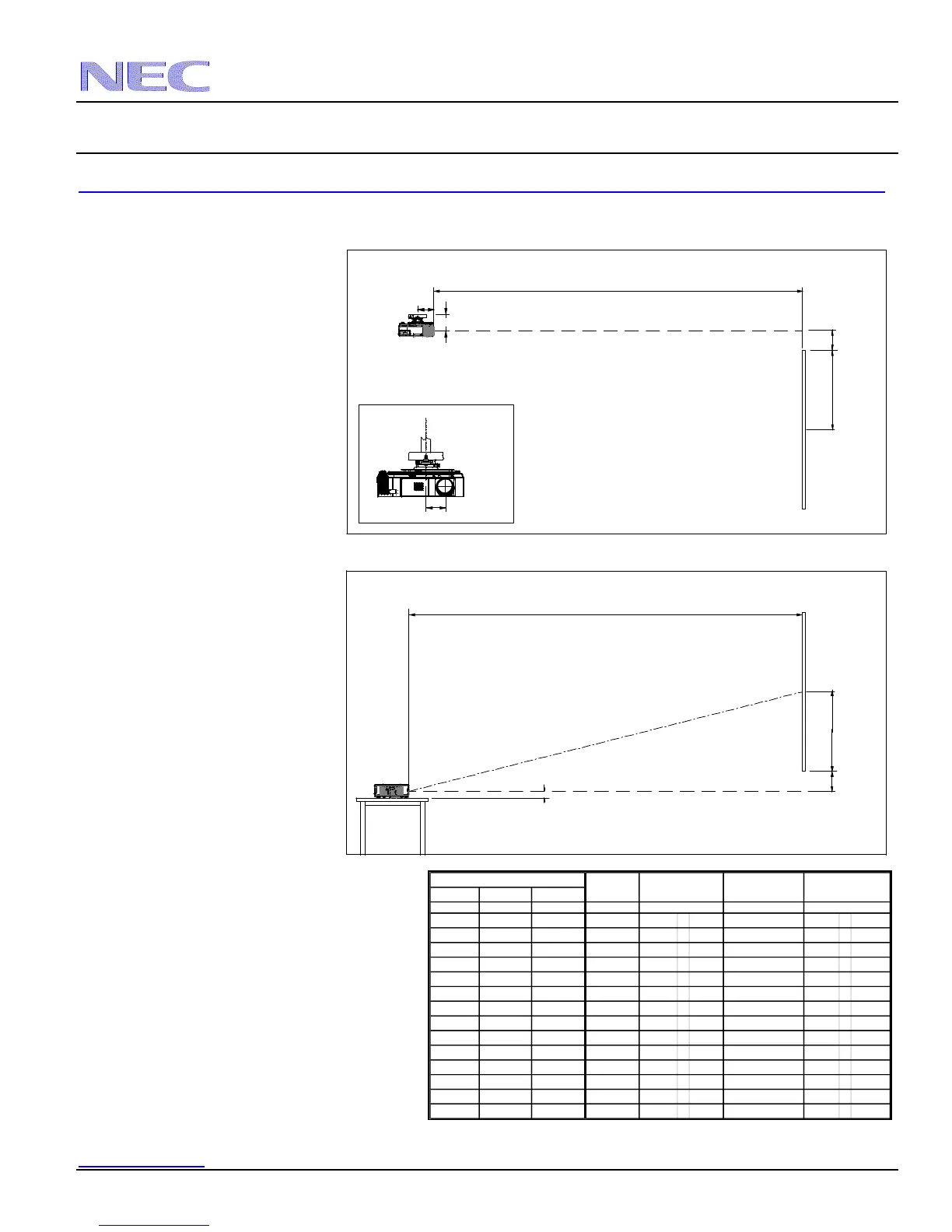

Diagrams and Distance Charts
The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of
installation.
Distances are in inches. For millimeters multiply by 25.4.
Ceiling Mounted
Desktop
Distance Chart for popular 4:3 screens
Note: For screen sizes not indicated on the projection
tables, use the formulas on page 1.
Diagonal Width(W) Height (H)
inches inches inches inches
30 24 18 12 35 - 60 18.2 - 10.9
60 48 36 23 72 - 123 17.8 - 10.7
67 54 40.2 26 81 - 138 17.8 - 10.7
72 58 43.2 28 87 - 148 17.8 - 10.7
84 67 50.4 33 102 - 173 17.8 - 10.6
90 72 54 35 109 - 186 17.7 - 10.6
100 80 60 39 122 - 207 17.7 - 10.6
120 96 72 47 146 - 249 17.7 - 10.6
150 120 90 58 183 - 312 17.6 - 10.6
180 144 108 70 221 - 375 17.6 - 10.6
210 168 126 82 258 - 438 17.6 - 10.6
240 192 144 93 295 - 501 17.6 - 10.6
270 216 162 105 332 - 564 17.6 - 10.6
300 240 180 117 369 - 627 17.6 - 10.6
Screen Size (4:3)
3
inches
B
C
w ide - tele
inches
27
degrees
D
α
w ide - tele
6
6
7
8
8
9
11
14
16
19
22
24
B
C
Lens Ctr
Screen Ctr
Throw Distance
Screen Bottom
2.38"
C
Throw Distance
Screen Top
Lens Offset From
Mount Pipe
D
B
Lens Ctr
Screen Ctr
D
5.43
5.56
3.31

NEC M282X Specifications

General

Native aspect ratio	-
Projection distance	0.9 - 15.97 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	DLP
Contrast ratio (typical)	10000:1
Screen size compatibility	29.9 - 299.2 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	+-30 °
Focus	Manual
Zoom capability	Yes
Focal length range	17.09 - 29.05 mm
Aperture range (F-F)	2.4 - 3.1
Lamp power	257 W
Light source type	Lamp
Lamp power (economic mode)	187 W
Service life of light source	4500 h
Service life of light source (economic mode)	10000 h
3D	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
Composite video in	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	0
Noise level	38 dB
Certification	UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B
Noise level (economic mode)	29 dB
RMS rated power	20 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2.5 W
Power consumption (PowerSave)	0.2 W
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR

Weight and Dimensions

Depth	280 mm
Width	339 mm
Height	90 mm
Weight	3400 g
