NEC M282X Installation Guide

NEC Display Solutions of America, Inc.
M282X/M322X/M402X Installation Guide
Ceiling Mounted and Desktop Rev 1.2
www.necdisplay.com M282X, M322X, M402X Page 3 of 6

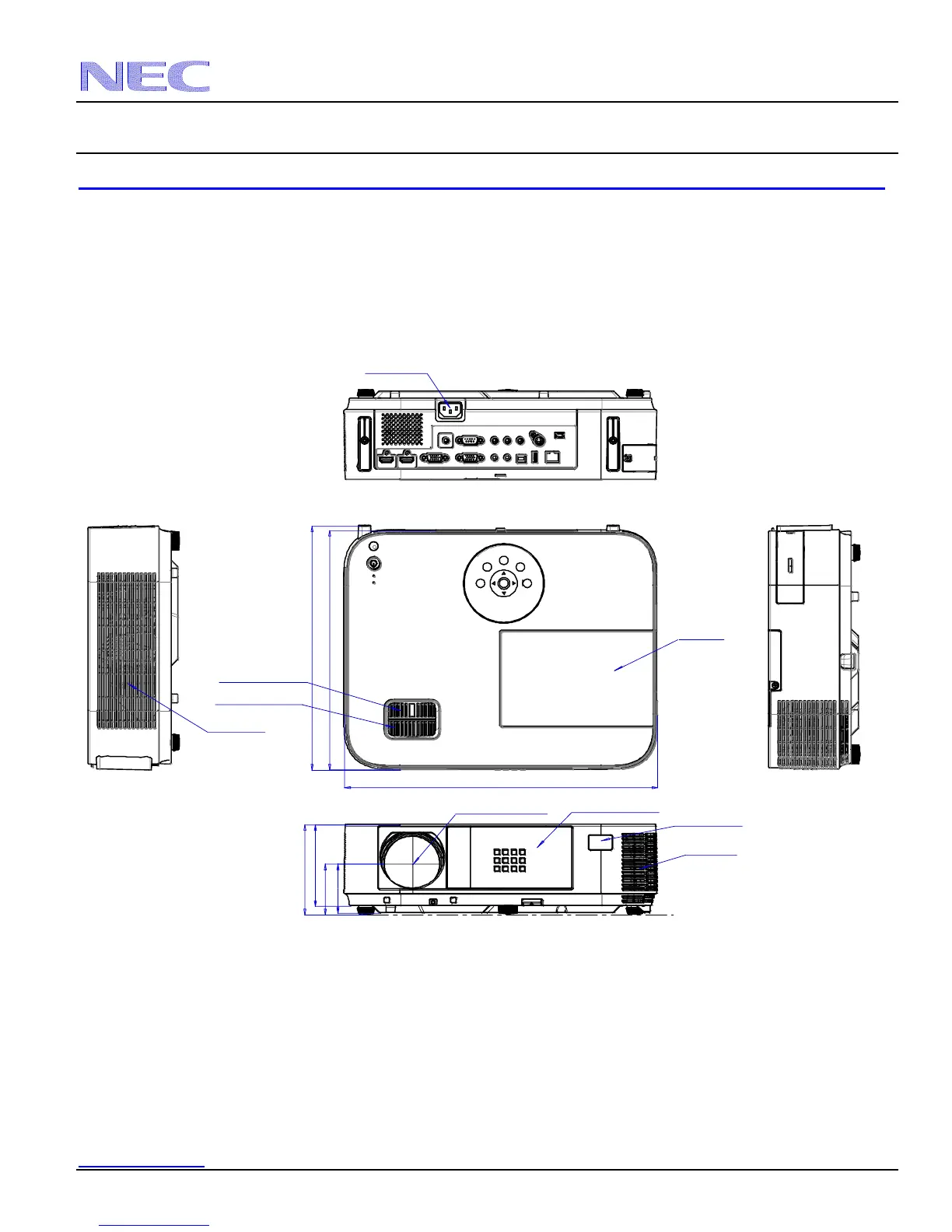

Cabinet Dimensions
The following drawings show the cabinet dimensions.
Dimensions are in inches. For millimeters multiply by 25.4.
2.378
4.232
2.299
3.839
14.5
11.5
11.3
AC INLET
ZOOM LEVER
FOC US LEVER
LENS CENTER
LENS COVER
LAMP
AIR INTAKE
IR REC EIVER
EXHAUST

NEC M282X Specifications

General

Native aspect ratio	-
Projection distance	0.9 - 15.97 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	DLP
Contrast ratio (typical)	10000:1
Screen size compatibility	29.9 - 299.2 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	+-30 °
Focus	Manual
Zoom capability	Yes
Focal length range	17.09 - 29.05 mm
Aperture range (F-F)	2.4 - 3.1
Lamp power	257 W
Light source type	Lamp
Lamp power (economic mode)	187 W
Service life of light source	4500 h
Service life of light source (economic mode)	10000 h
3D	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
Composite video in	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	0
Noise level	38 dB
Certification	UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B
Noise level (economic mode)	29 dB
RMS rated power	20 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2.5 W
Power consumption (PowerSave)	0.2 W
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR

Weight and Dimensions

Depth	280 mm
Width	339 mm
Height	90 mm
Weight	3400 g
