NEC M283X Installation Guide

NEC Display Solutions of America, Inc.
M283X/M323X/M363X/M403X Installation Guide
Ceiling Mounted and Desktop Rev 1.0
www.necdisplay.com M283X, M323X, M362X, M403X Page 3 of 6
Cabinet Dimensions

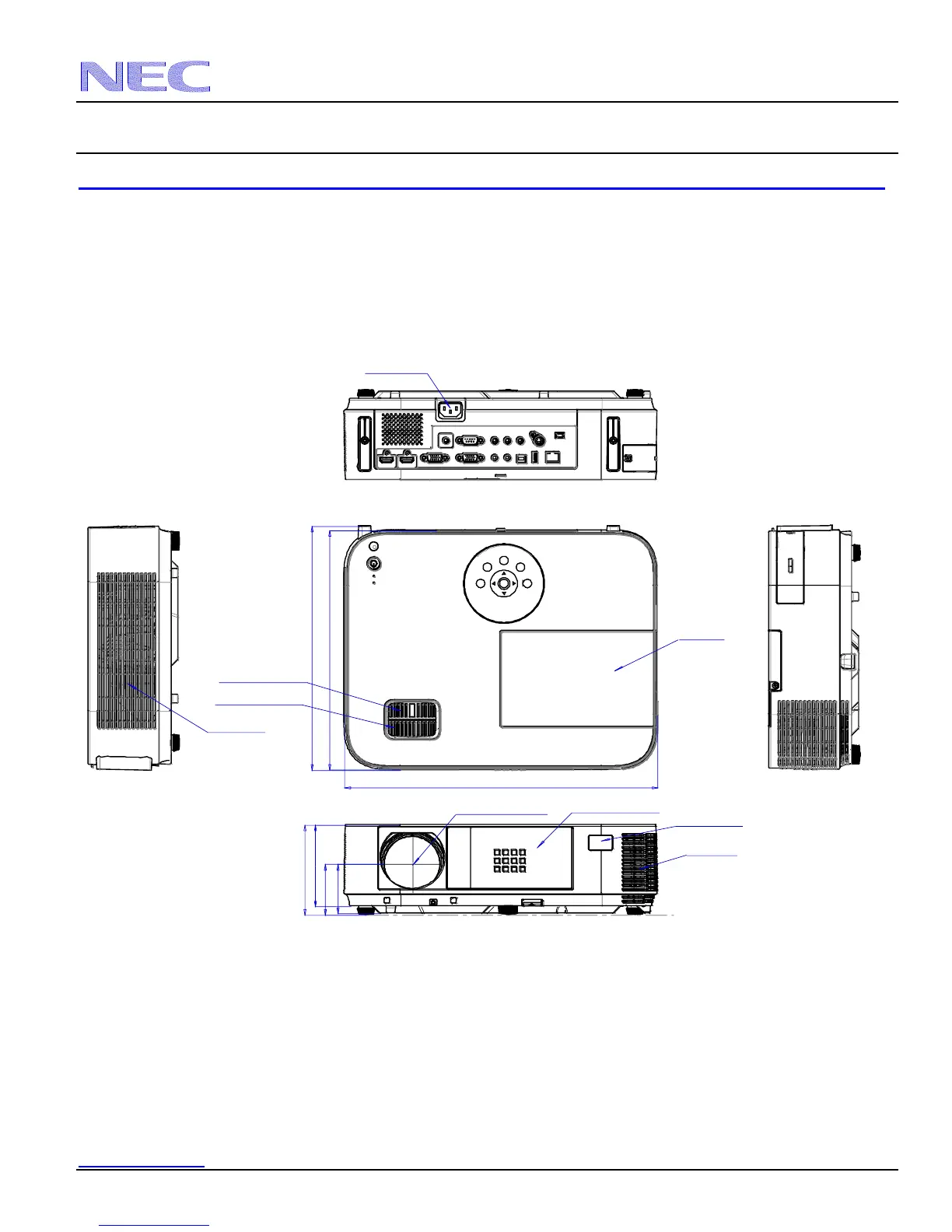

The following drawings show the cabinet dimensions.
Dimensions are in inches. For millimeters multiply by 25.4.
2.378
4.232
2.299
3.839
14.5
11.5
11.3
AC IN LET
ZOO M LEVER
FOC U S LEVER
LENS C EN TER
LENS C O VER
LAMP
AIR IN TAKE
IR R EC EIVER
EXH AU ST

NEC M283X Specifications

General

Brand	NEC
Model	M283X
Category	Projector
Language	English
