NEC M310 - M110 Component Selection Part 8 SFP Module Combinations FC 4 Port

Port
combination
per unit
8Gb FC SFP
[NF5322-SFP08E]
16G FC SFP
[NF5322-SFP16E]
8G FC 2Port 1 0
8G FC 4Port 2 0
8G FC 6Port 3 0
8G FC 8Port 4 0
16G FC 2Port 0 1
16G FC 4Port 0 2
16G FC 6Port 0 3
16G FC 8Port 0 4
8G FC 2Port
16G FC 2Port
1 1
8G FC 2Port
16G FC 4Port
1 2
8G FC 2Port
16G FC 6Port
1 3
8G FC 4Port
16G FC 2Port
2 1
8G FC 4Port
16G FC 4Port
2 2
8G FC 6Port
16G FC 2Port
3 1

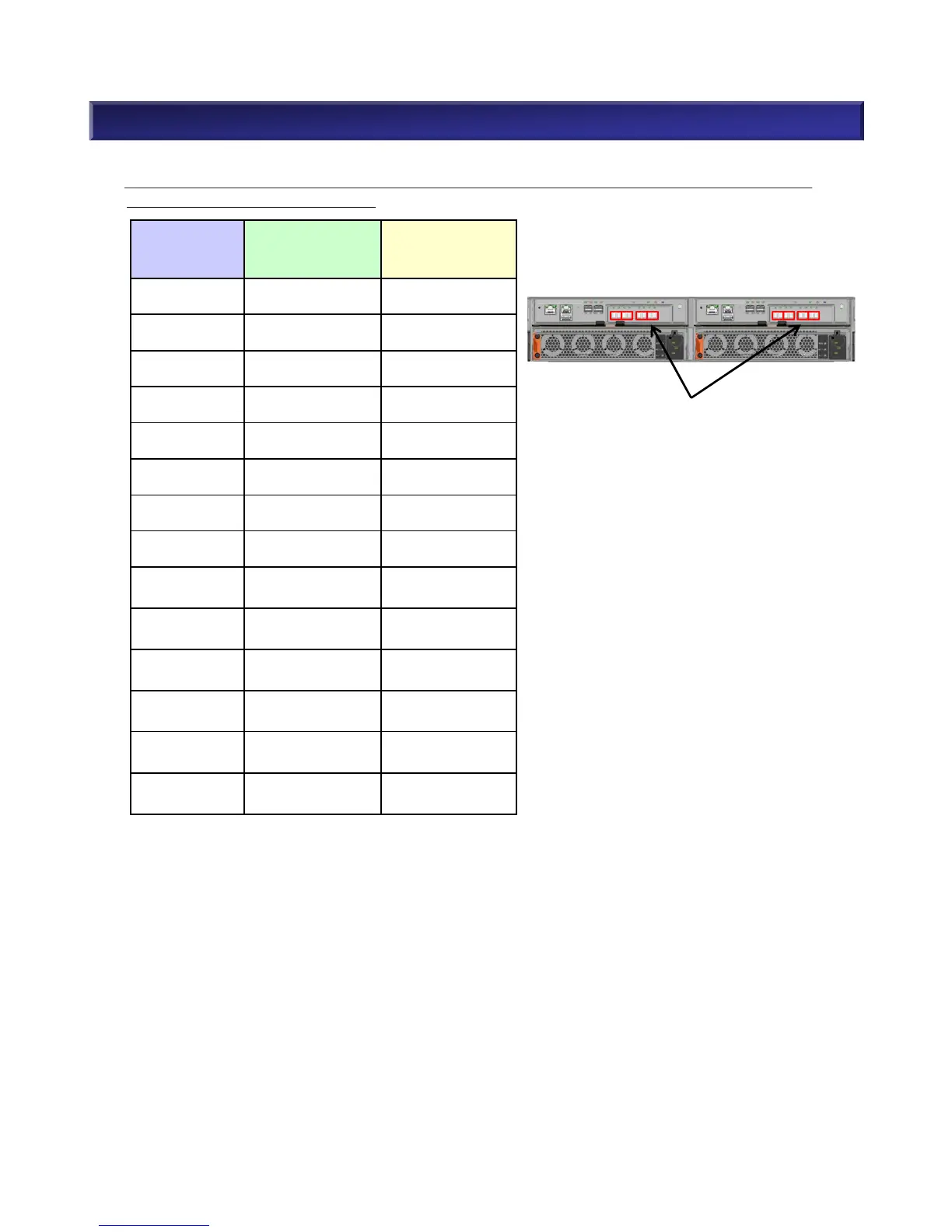

■Available SFP Module combination for Host Port Card (FC 4Port) [NF5322-SF06E]
The following table shows available SFP combination in case of M110 disk array(dual controller)
with two Host Port Card(FC 4Port).
Max 8 SFPs (corresponded to 4-Model
Number) per unit are available.
