NEC M310 - M110 Component Selection Part 23 Disk Enclosure Connection

2. M110 Component Selection (23)
(4-3) DE Connection

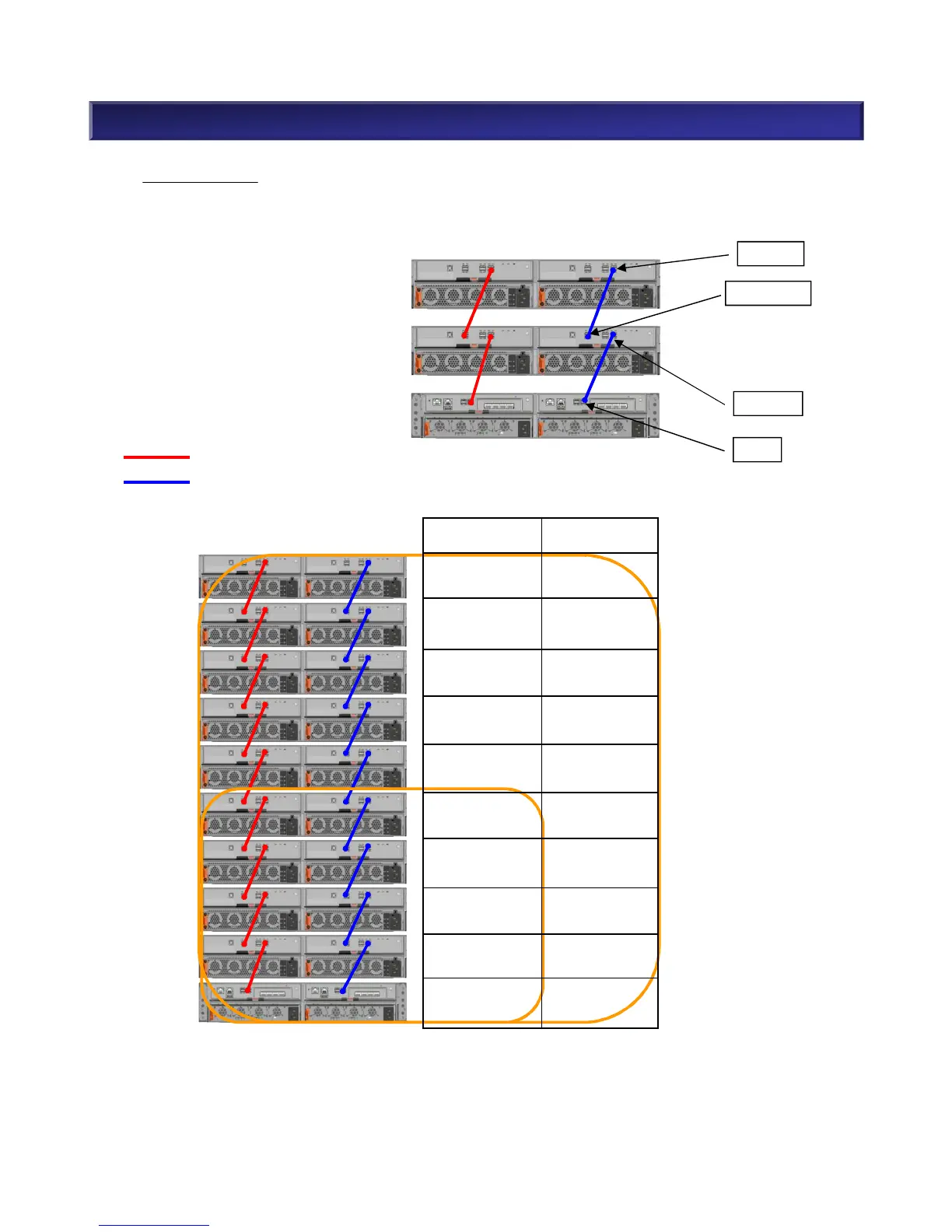

The Disk Array Unit can be connected up to the maximum number of DE shown below. DE starts from
“01” because functionality equivalent to “DE 00” is built into DAC. The figure below shows how to
connect DEs and the DE numbers and PD numbers.
28
NEC Confidential
DP0-OUT
DP0-IN
DP0-IN
DP0
Disk Enclosure ・・・・・・・・
Disk Array Unit ・・・・・・・・
：Mini SAS HD cable
Disk Enclosure ・・・・・・・・
2.5” 3.5”
- DE09
- DE08
- DE07
- DE06
- DE05
DE04 DE04
DE03 DE03
DE02 DE02
DE01 DE01
DAC(DE00) DAC(DE00)
