NEC M420X User Manual

NEC M350XS
SPECIAL CHARACTERISTICS
Auto Eco Mode, Automatic and manual Keystone Correction (V=
+/-20°), Carbon Savings Meter, Colour Management, Content
Transmission via Network, Crestron RoomView, DICOM
Simulation, Direct Power-Off Function, FREE DisplayNote
Presenter, High Altitude Mode, Kensington security slot, Keypad
Lock, Magnify, NaViSet Administrator 2, Optional User Logo,
Optional WLAN, OSD with 27 languages, Password Security
System, Quick On/Off, Remote control and administration via LAN
and RS232, Security Bar, USB Viewer for JPEG, Virtual Remote for
direct PC control, Wall Colour Correction, 100% recyclable
packaging, Auto ECO Mode, Green one touch ECO and AV mute
button, 75% AV mute function, Downloadable manuals, ECO
scheduler, RoHs compliant, ECO packaging, ErP compliant,
Intelligent Power Management, Less consumption, Reduced
power consumption. Only 0.4W stand-by, Software scheduling
Energy
Efficiency
Auto ECO Mode; Green one touch ECO and AV
mute button; 75% AV mute function; ECO
scheduler; Intelligent Power Management; Less
consumption; Reduced power consumption.
Only 0.4W stand-by; Software scheduling
Ecological
Materials
100% recyclable packaging; Downloadable
manuals; ECO packaging
Ecological
Standards
RoHs compliant; ErP compliant

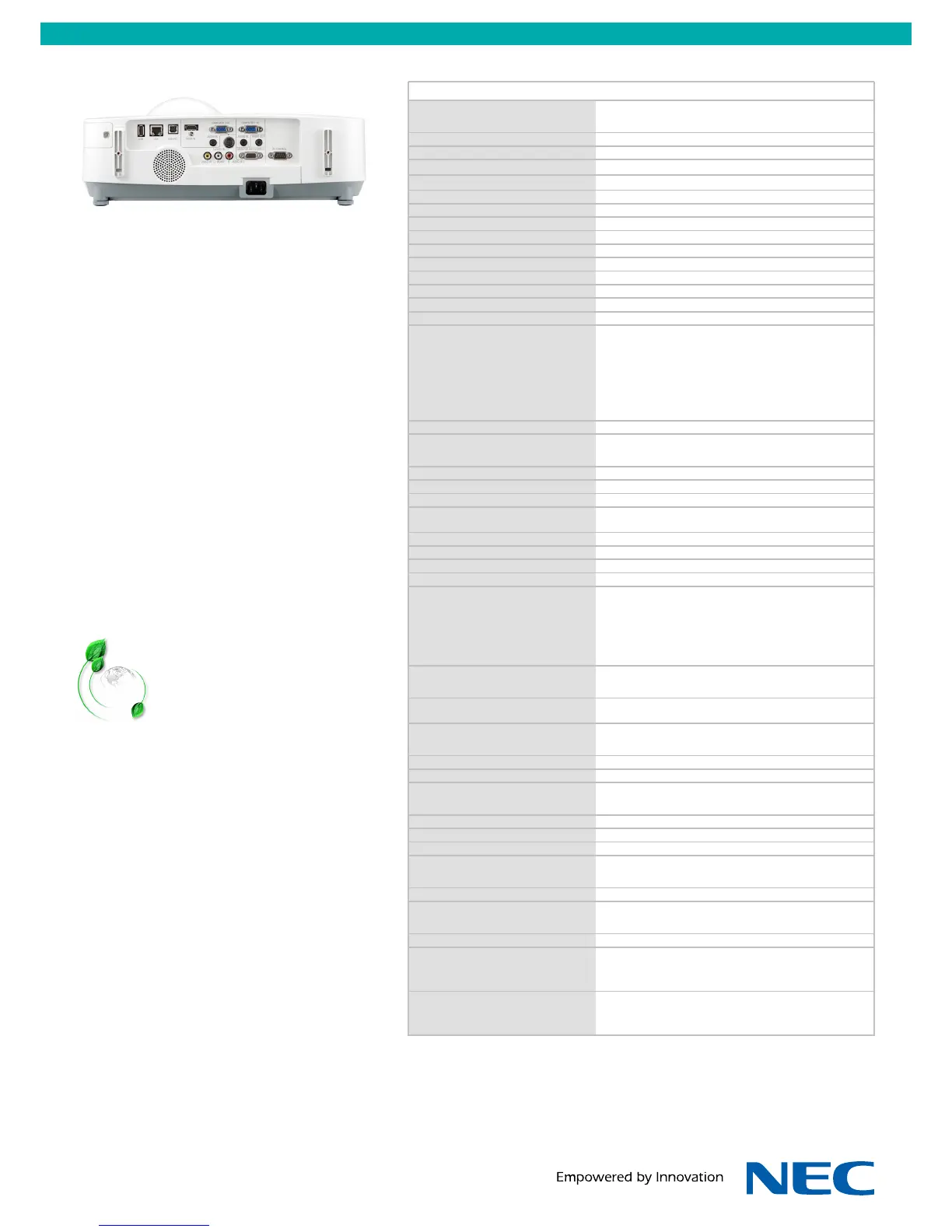

Technical Specification NEC M350XS
Display
3 x 1.6 cm (0.63") p-Si LCD Panel with MLA
Native Resolution
1024 x 768 (XGA)
Aspect Ratio
4:3
Contrast Ratio
1
2000:1
Brightness
1
3500 ANSI Lumen (approx. 75% in Eco Mode)
Lamp
265 W AC (195 W AC Eco Mode)
Lamp Life [hrs]
3000 (3500 Eco Mode)
Lens
F= 2, f= 0 mm
Projection Factor
0.47 : 1
Projection Distance [m]
0.6 – 1.1
Projection Distance: min. / max. [cm]
60 (23.6"); 110 (43.3")
Projection Angle [°]
37.3 - 38.6
Screen Size (diagonal) [cm] / [inch]
Minimum: 152.4 / 60"; Maximum: 279.4 / 110"
Zoom
Digital Zoom
Focus Adjustment
Manual
Supported Resolutions
1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1680 x 1050 (WSXGA+); 1600 x
1200 (UXGA); 1600 x 900 (WXGA++); 1440 x 900 (WXGA+); 1400 x 1050 (SXGA+);
1366 x 768 (WXGA); 1360 x 768 (WXGA); 1280 x 1024 (Maximum resolution of
digital input); 1280 x 1024 (SXGA); 1280 x 1024 (MAC 23"); 1280 x 960 (SXGA);
1280 x 800 (WXGA); 1280 x 768 (WXGA); 1280 x 720 (HDTV 720p); 1152 x 870
(MAC 21"); 1152 x 864 (XGA); 1024 x 768 (XGA); 832 x 624 (MAC 16"); 800 x 600
(SVGA); 720 x 576 SDTV 480p/480i; 720 x 576 (DVD progressive); 720 x 480
SDTV 576p/576i; 720 x 480 (SDTV 480p); 640 x 480 (VGA/MAC 13")
Frequency
Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz
CONNECTIVITY
RGB (analog)
Input: 2 x Mini D-sub 15-pin, compatible to component (YPbPr)
HDMI™
Input: 1 x HDMI™ (Deep Color, Lip sync)
Video
Input: 1 x RCA
S-Video
Input: 1 x Mini DIN 4-pin
Audio
Input: 2 x 3.5 mm Stereo Mini Jack; 2 x RCA Stereo
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
PC Control
Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN
1 x RJ45
USB
1 x Type B; 2 x Type A (USB 2.0 high speed)
Video Signals
PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-M
REMOTE CONTROL
Remote Control
Aspect Ratio; Audio Control; Auto Adjust; Automatic Picture Adjustment; AV
Mute; Digital Zoom; Freeze; Freeze-function; Help Eco Mode; ID set; Lamp Mode
Control; Magnify-function; Optional Presentation and Mouse Control; Picture
Adjust; Picture Mode; Picture Mute; Presentation and Mouse Control; Source
Select
ELECTRICAL
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption [W]
343 Normal Mode; 264 Eco Mode; 8 Network Stand-By Mode; 0.4 Power Savings
Mode
MECHANICAL
Dimensions (W x H x D) [mm]
398 x 140 x 309.5 (without lens and feet)
Weight [kg]
4
Fan Noise [dB (A)]
30 / 36 (Eco / Normal)
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C]
5 to 40
Operating Humidity [%]
20 to 80
Storage Temperature [°C]
-10 to 50
Storage Humidity [%]
20 to 80
ERGONOMICS
Safety and Ergonomics
CE; TÜV GS; RoHS; Gost-R
Speakers [W]
1 x 10 (mono)
WARRANTY
Projectors
3 years pan-European service
Lamp
6 months, max. 1000 hrs
SHIPPING CONTENT
Shipping Contents
IR Remote Control (RD-448E); Mini D-SUB Signal Cable; Power Cord (1.8 m);
Security Sticker; Users Manual on CD-ROM; Quick Setup Guide; Lens Cap
OPTIONAL ACCESSORIES
Optional Accessories
DisplayNote; Lamp (NP17LP); Wall Mount Kit (NP02WK); Wireless LAN module
(NP02LM2)
1
Compliance with ISO21118-2005

NEC M420X Specifications

General

Projection distance	0.6 - 13.8 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	25 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	30 °
Aspect ratio	4:3
RS-232 ports	1
Dimensions (WxDxH)	398 x 282 x 115 mm
Power requirements	100 - 240V, 50 - 60Hz
Focus	Manual
Focal length range	17.5 - 29 mm
Lamp power	265 W
Light source type	Lamp
Lamp power (economic mode)	195 W
Service life of light source	3000 h
Service life of light source (economic mode)	3500 h
Full HD	No
Analog signal format system	NTSC, NTSC 4.43, PAL, SECAM
RMS rated power	10 W
Serial interface type	RS-232
USB 2.0 ports quantity	3
Remote control type	RD-448E
Noise level	36 dB
Certification	CE; ErP; TÜV GS; RoHS; Gost-R
Noise level (economic mode)	30 dB
Power consumption (standby)	0.4 W
Power consumption (typical)	343 W
Power consumption (economy mode)	264 W
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	-20 - 80 %
Operating relative humidity (H-H)	20 - 80 %
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Cable lock slot type	Kensington

Weight and Dimensions

Weight	3600 g
