English-25
English
PICTURE PATTERN Selects split screen mode when MULTI PICTURE is “PBP”. You can select 2 or 4 split
screen types.
ACTIVE PICTURE Selects active picture when set to other than OFF in MULTI PICTURE. A white frame is
displayed on selected picture.
EXPANSION Sets the zoom method.
FULL: The image is expanded to full screen, regardless of the resolution.
ASPECT: The image is expanded without changing the aspect ratio.
OFF: The image is not expanded.
CUSTOM: When CUSTOM is selected as the Expansion mode, it becomes possible to
adjust the H. ZOOM, V. ZOOM, and ZOOM POS.
PIP LEFT/RIGHT
When you select “PIP” in PIP MODE, you can control horizontal position of PIP display area.
PIP DOWN/UP
When you select “PIP” in PIP MODE, you can control vertical position of PIP display area.
PIP SIZE Selects the size of the sub-picture used in PIP MODE.
Tag9 HDMI/DVI SELECT*
1
Selects input source, HDMI X 4 or DVI x 2.
INPUT
CONFIGURATION

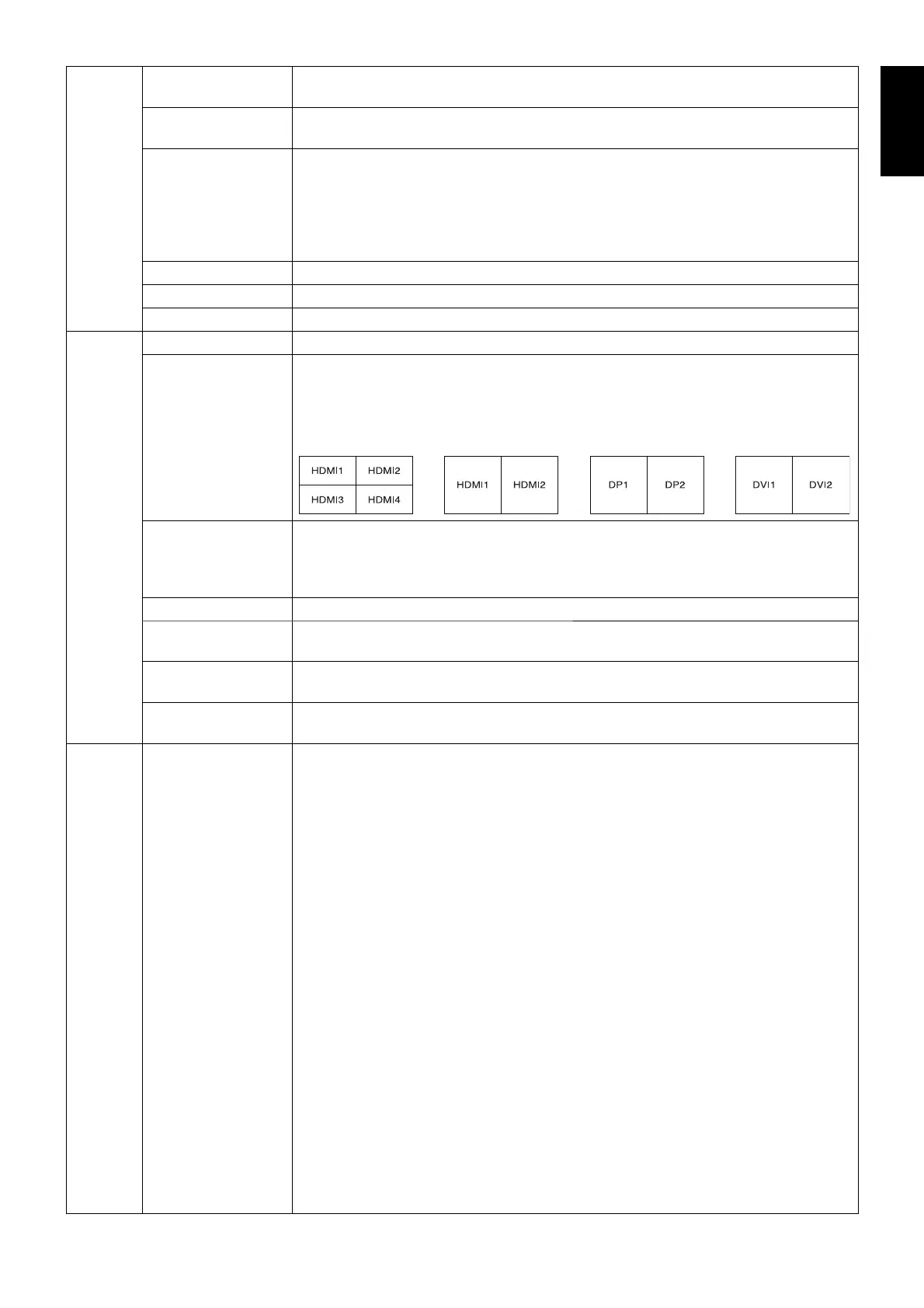

You can show the 3840 x 2160 60 Hz image using multiple input signals.
Selects how many inputs and connector types to use as single input.
NOTE: Before setting INPUT CONFIGURATION, select the desired signal input for
display as the ACTIVE PICTURE. The Monitor will not search the other video input port
unless the monitor is turned on, regardless of VIDEO DETECT setting.
DISPLAY PORT When DisplayPort signals from DISPLAYPORT1 connector, do not optimize on the native
resolution, selects DISPLAY PORT [1.1a].
NOTE: For 3840 x 2160 signal, you cannot select refresh rate to 60 Hz when you
select 1.1a.
BLANK SIGNAL SKIP Skip no signal inputs when you change input signal with INPUT button.
OPTION AUDIO Selects sound input signal ANALOG or DIGITAL.
Selects sound input signal according to slot2 type option’s specifi cations.
SLOT2 CH
SETTING*
2
Selects 1CH or 2CH according to slot2 type option’s specifi cations. This monitor should
be set to AUTO.
SLOT2 CH SELECT*
2
This function is available only when SLOT2 CH SETTING is 1CH. This monitor
automatically sets.
TagA ROTATION OSD:
AUTO: The OSD rotates automatically when the monitor is rotated. OSD ROTATION is
set to AUTO by default.
LANDSCAPE: Display the OSD with landscape mode.
PORTRAIT: Display the OSD with portrait mode.
PICTURE1 (MULTI PICTURE OFF or PICTURE PATTERN 2 only):
AUTO: The left/up side or main window image automatically rotates according to the
orientation of the display.
OFF: The window image is not rotated.
ON: The left/up side or main window image always rotated.
NOTE: Interlace signal does not rotate.
PICTURE2 (MULTI PICTURE OFF or PICTURE PATTERN 2 only):
AUTO: The right/down side or sub window image automatically rotates according to
the orientation of the display.
OFF: The window image is not rotated.
ON: The right/down side or sub window image always rotated.
NOTE: Interlace signal does not rotate. This setting is invalid when MULTI PICTURE is
OFF.
PICTURE* (PICTURE PATTERN is 4 only):
AUTO: The window image automatically rotates according to the orientation of the
display.
OFF: The window image is not rotated.
ON: The window image always rotated.
NOTE: Interlace signal does not rotate. When you show a 3840 x 2160 60 Hz image
using multiple input signals, rotate does not work.
*: 3840 x 2160 60Hz signal does not rotate.
*
1
This item does not reset by FACTORY PRESET (Tag7).
*
2
Turn off and on again the monitor when changing the setting.
