MG-SIP Page 65 of 75 5/8/2009
7.5.7 REBOOT COMMAND
7.5.7.1 REBOOT

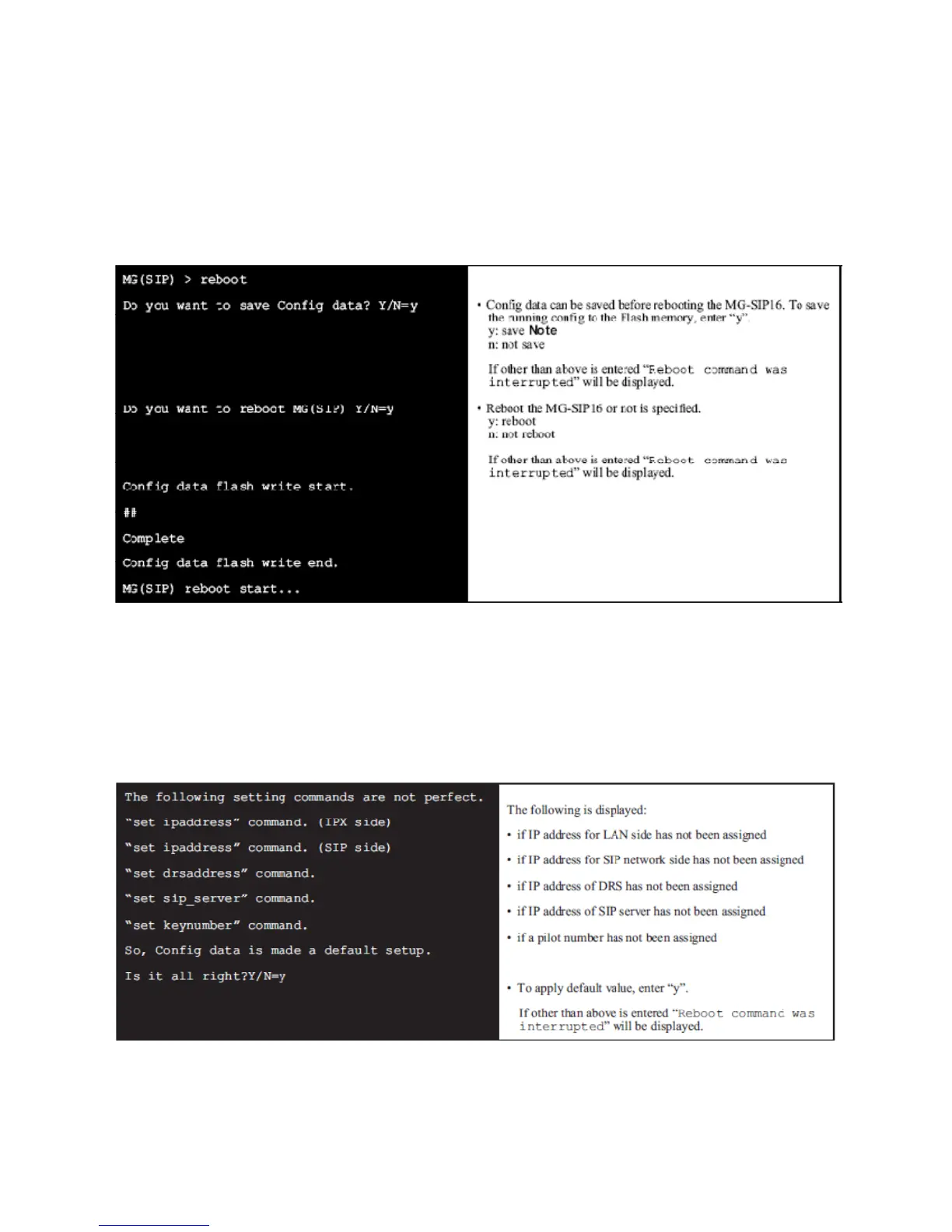

This command is used to reboot the MG-SIP16. Also configuration data can be saved to the Flash memory by using
this command.
Note: Before selecting “Y” to save the running configuration data to the Flash memory, be sure to execute the
following commands:
- set ipaddress (Assign the IP addresses for IPX LAN side and SIP network side.)
- set drsaddress (Assign the IP address of DRS.)
- set sip_server (Assign the IP address of the SIP server)
- set keynumber (Assign a pilot number.)
If any item has not been assigned when saving the running configuration data, the following message will be
displayed.
To Next Page
