7. Reverse this process to re-attach stand.

NOTE: Use only VESA-compatible alternative mounting method.

Handle with care when removing stand.

NOTE: Match “TOP SIDE” mark on stand to top side of the monitor head when

re-attaching stand.

Flexible Arm Installation

This LCD monitor is designed for use with a flexible arm. To mount the monitor to a flexible arm:

1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.

2. Using the 4 screws from the stand removal, attach the arm to the monitor (Figure F.1).

NOTE: 1. When mounting, use ONLY the screws (4 pcs) that were removed from the stand to avoid damage to the

monitor or stand.

2. The LCD monitor should only be used with an approved arm (e.g. GS mark). To meet the safety requirements,

the monitor must be mounted to an arm, which guaranties the necessary stability under consideration of the

weight of the monitor.

3. The mounting stand must be able to sustain at least 13.6 kg and be UL certified.

Thickness of Bracket (Arm)

2.0~3.2 mm

Weight of LCD assembly: 3.4 kg MAX

100 mm

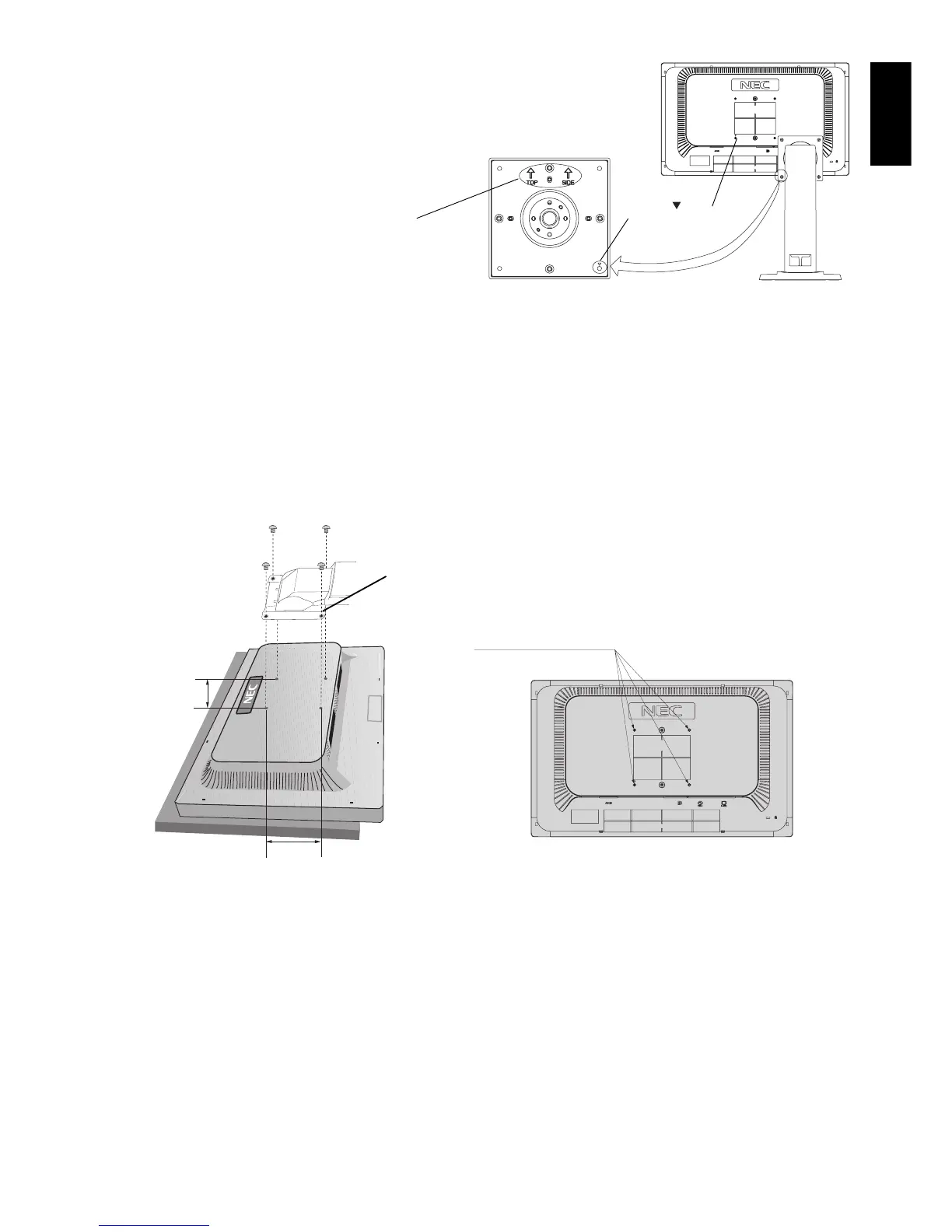

Figure F.1

4 Screws (M4)

(Max Depth: 9.5 mm)

Hole of “

” mark

Please assemble

then together

100 mm

“TOP SIDE” mark

Please match top side

of the monitor

Other manuals for NEC MULTISYNC E201W

Questions and Answers:

Need help?

Do you have a question about the NEC MULTISYNC E201W and is the answer not in the manual?

General

3D	No
Panel type	TN
Pixel pitch	0.267 x 0.267 mm
Aspect ratio	16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	-
Display diagonal	20 \
Display resolution	1600 x 900 pixels
Display technology	LED
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 82.3 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
USB Type-A downstream ports quantity	0
AC input voltage	100 - 240 V
Power consumption (max)	25 W
Annual energy consumption	26 kWh
Power consumption (standby)	- W
Power consumption (typical)	18 W
Power consumption (PowerSave)	0.42 W
Certification	CCC; CE; Energy Star 5.0; ErP; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCT/Gost; TCO 5.0; TÜV Ergonomics; TÜV GS; UL/C-UL, CSA
Product color	Black
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Power consumption (economy mode)	12 W
Pivot angle	0 - 90 °
Tilt angle range	-5 - 20 °
Height adjustment	110 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Cables included	DVI, VGA
Sustainability certificates	EPEAT Gold, ENERGY STAR
