NEC MultiSync E231W User Manual

English-10
Menu
Detects the level of ambient lighting allowing the monitor to make adjustments to various settings
resulting in a more comfortable viewing experience. Do not cover this sensor.
Open OSD main menu.
Exits the OSD controls.
Exits to the OSD main menu.
Moves the highlighted area left/right to select control menus.
Moves the bar left/right to increase or decrease the adjustment.
Direct adjust of BRIGHTNESS if HOT KEY is set to ON.
Enters the OSD menu if HOT KEY is set to OFF.
Moves the highlighted area down/up to select one of the controls.
Direct adjust of CONTRAST if HOT KEY is set to ON.
Enters the OSD menu if HOT KEY is set to OFF.
Enter the OSD sub menu. Active the selected function.
Change the Input source (No OSD condition).
Resets the highlighted control menu to the factory setting. Switches the ECO MODE.
Activates Auto Adjust function if pushed for 3 seconds (No OSD condition and Analog input only).
Turns the monitor on and off.
Button
1 Ambibright Sensor
2 MENU
3 4-Direction-Key Left/Right
Down/Up
4 SELECT
5 RESET/ECO MODE
6 Power

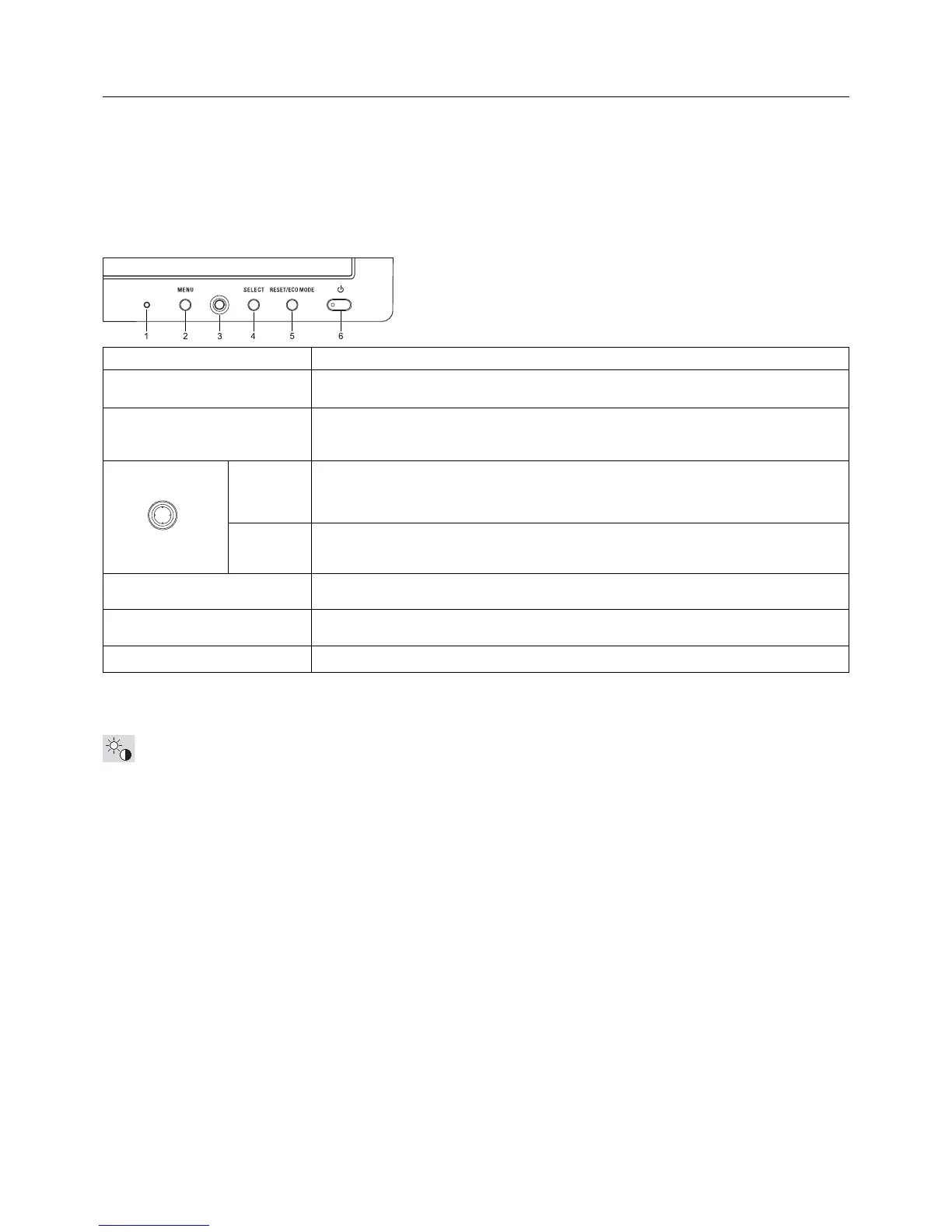

Controls
OSD (On-Screen Display) control buttons on the front of the monitor function
as follows:
To access OSD menu, press any of the control buttons (MENU, Left, Right, Down, Up).
To change signal input, press the SELECT button.
To change ECO MODE, press the RESET/ECO MODE button.
NOTE: OSD must be closed in order to change signal input.
NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the
RESET function by pressing the MENU button.
Brightness/Contrast Controls
BRIGHTNESS
Adjusts the overall image and background screen brightness.
If ECO MODE is set to 1 or 2, a bar for CARBON FOOTPRINT will appear.
CONTRAST
Adjusts the image brightness in relation to the background.
AUTO CONTRAST (Analog input only)
Adjusts the image displayed to optimal settings.
ECO MODE
Decreases the power consumption by reducing the brightness level.
OFF: Sets brightness variable from 0% to 100%.
(ECO MODE) 1: Sets brightness variable range from 0% to 80%.
This setting can adjust brightness to a range in which power is reduced to meet Energy Star measurement
conditions.
(ECO MODE) 2: Sets brightness variable range from 0% to 40%.
This setting can adjust brightness to a range in which power is reduced by 40% compared to the maximum
brightness setting.
When this function is set to ON, a CARBON FOOTPRINT bar will appear alongside the brightness adjustment bar.
NOTE: This function is disabled when DV mode is set for Dynamic.
Up
Down
RightLeft

NEC MultiSync E231W Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Display diagonal	23 \
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
Viewing angle, horizontal	176 °
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 83 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	720 x 480, 1440 x 1050, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
DVI-I ports quantity	0
Power consumption (standby)	0.34 W
Power consumption (typical)	28 W
Power consumption (PowerSave)	23 W
Certification	EPEAT Gold; CE; ErP; TCO 5.0; TÜV; TÜV GS; GEEA/Energy Label; Energy Star 5.0; FCC Class B; PCT/Gost; UL/C-UL or CSA; CCC; ISO 9241-307; MPR II/ MPR III
Product color	White
Market positioning	Business
Power requirements	100-120 V/220-240 V; 0.6 A/0.35 A
Pivot angle	0 - 90 °
Tilt angle range	-5 - 20 °
Height adjustment	110 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Operating altitude	0 - 2000 m
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Bezel width (side)	19.2 mm
Depth (with stand)	381.1 mm
Width (with stand)	550.1 mm
Height (with stand)	213.9 mm
Depth (without stand)	213 mm
Height (without stand)	381 mm
Weight (without stand)	6200 g
