NEC MultiSync EA192M User Manual

English-6
Quick Start

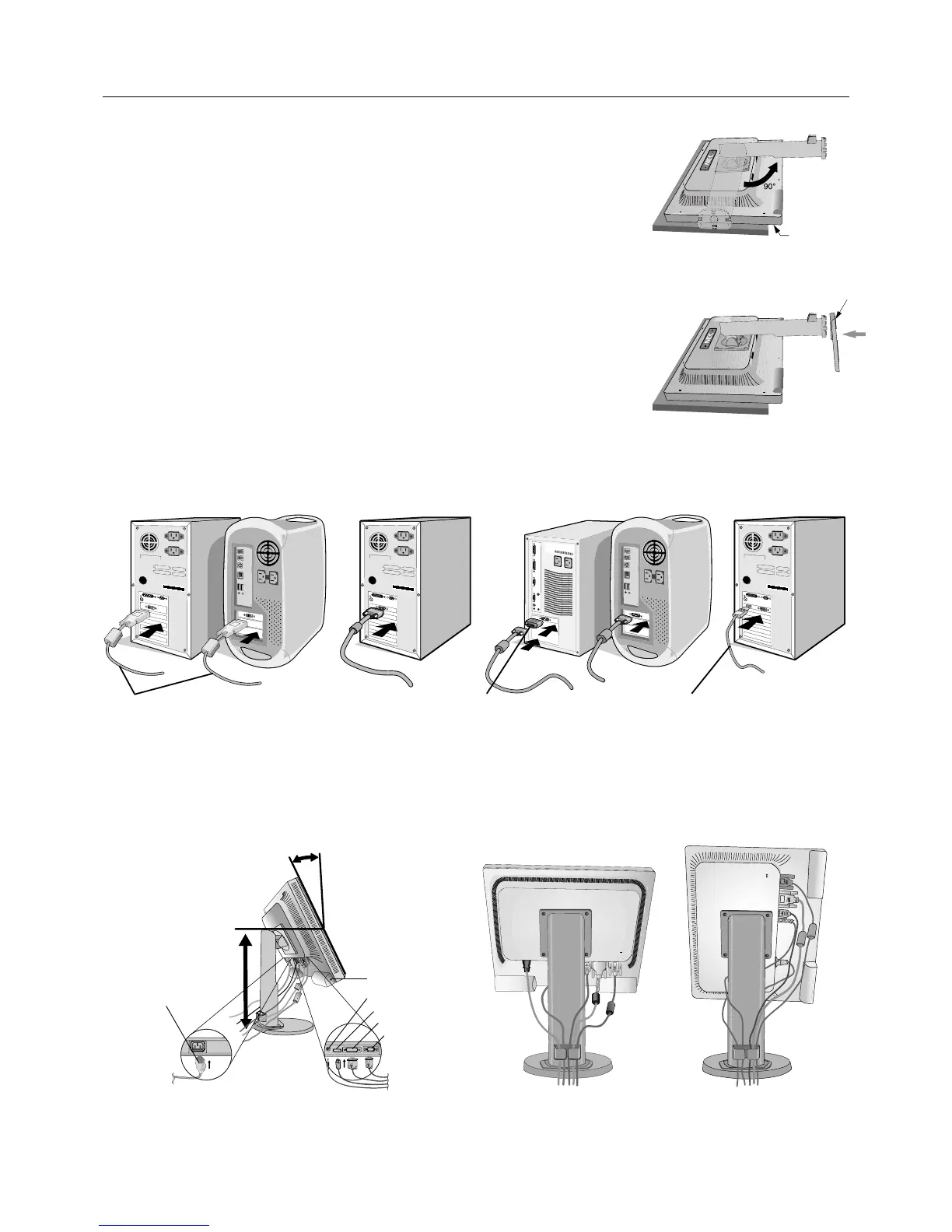

To attach the Base to the LCD stand:
1. Place monitor face down on a non-abrasive surface (Figure 1).
NOTE: Handle with care when monitor facing down, for avoiding damage to the front
control buttons.
2. Please pivot base 90 degrees as shown in Figure 1.
NOTE: Handle with care when pulling the stand.
3. Attach the base stand to LCD monitor and properly lock screw of base stand bottom
(Figure 2).
NOTE: Reverse this procedure if you need to re-pack the monitor.
To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the
connector of the display card in your system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the
connector of the display card in your system (Figure A.2). Tighten all screws.
For the MAC: Connect the Macintosh cable adapter to the computer, then attach the
15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure A.3).
Tighten all screws.
For the PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display card in your system
(Figure A.4).
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
3. Place hands on each side of the monitor to tilt the LCD panel 20-degree angle and lift up to the highest position (FigureB.1).
4. Connect all cables to the appropriate connector on the back of the monitor (Figure B.1). Connect the Headphone (not
included) to the appropriate connector at the left side of the monitor (Figure B.1).
5. Position the Video Signal Cable and power cord between the holes on the Stand, as indicated in Figure B.2/Figure B.3.
Figure B.2
Figure 2
Figure B.3
Figure 1
Control
buttons
Screw
Power Cord Audio Input
Figure B.1
Highest
stand position
20˚ Tilt
Headphone
DVI
D-Sub
Figure A.1
Figure A.3
Macintosh
Cable Adapter
(not included)
Figure A.2
DVI signal cable
Figure A.4
DisplayPort cable
(not included)
NOTE: 1. Please use a DisplayPort cable with a DisplayPort logo.
2. The DisplayPort connector does not supply power to the connected component.
3. When removing the DisplayPort cable, hold down the top button to release the lock.
DisplayPort

NEC MultiSync EA192M Specifications

General

3D	No
HD type	-
Panel type	TN
Pixel pitch	0.29 x 0.29 mm
Aspect ratio	5:4
Backlight type	W-LED
Display surface	Matt
Display diagonal	19 \
Separate H/V sync	Yes
Display resolution	1280 x 1024 pixels
Display technology	LED
Vertical scan range	56 - 75 Hz
Horizontal scan range	31.5 - 81.1 kHz
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	25000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA)
USB Type-A downstream ports quantity	0
AC input voltage	100 - 240 V
Power consumption (standby)	1 W
Power consumption (typical)	26 W
Certification	TCO, RoHS
Product color	White
Panel mounting interface	100 x 100 mm
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, Audio (3.5mm), DVI, VGA
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight and Dimensions

Depth (with stand)	386.4 mm
Height (with stand)	213.9 mm
Weight (with stand)	5500 g
Depth (without stand)	65 mm
Width (without stand)	408 mm
Height (without stand)	338 mm
Weight (without stand)	3500 g
