Installation
For box contents, please refer to the printed sheet provided in the box.
The accessories included depends on the location where the monitor was shipped.
Attach the base to the LCD monitor stand

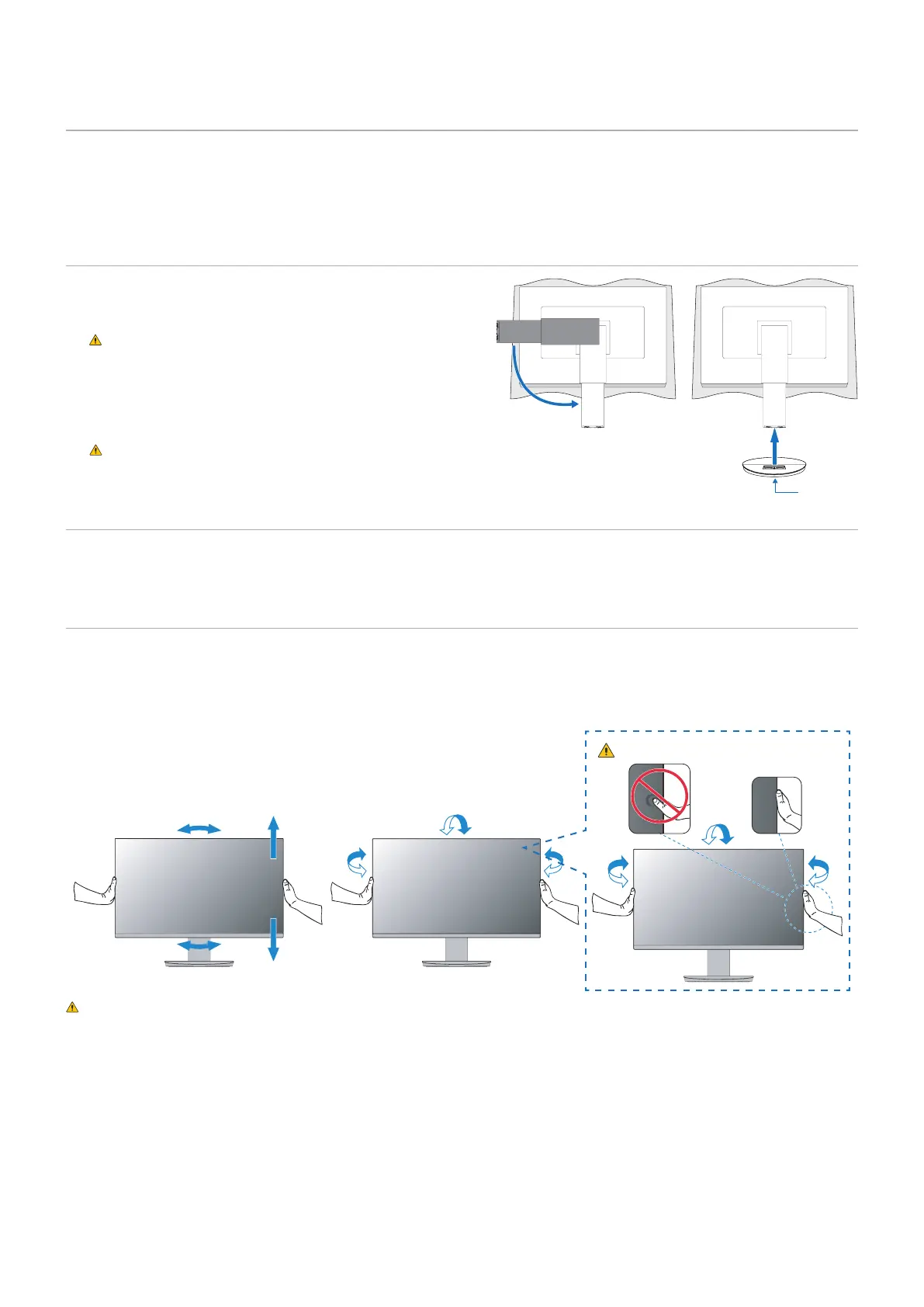

1. Place the monitor face down on a non-abrasive surface (Figure 1).
2. Please rotate the stand 90 degrees as shown in Figure 1.
CAUTION: Please refer to “CAUTION 6”.
3. Attach the base to the stand, then tighten the screw at the
base’s bottom (Figure 2).
NOTE: Reverse this procedure if you need to re-pack the
monitor.
WARNING: Please refer to “WARNING 8”.
Connect the power cord and signal cables
Please connect the power cord and signal cables to the monitor (see page 14).
Adjustable Stand with Pivot Capability
Hold the monitor on each side and adjust the screen position as desired.
For screen rotation (pivot), hold the monitor on each side, lift to its maximum height and turn it from landscape to portrait.
You can adjust the OSD (On-Screen Display) menu rotation to match the screen rotation. Refer to the [OSD ROTATION]
instructions (see page 42).
Tilt and Swivel
CAUTION:
Rotation, Raise and Lower
CAUTION: Please refer to “CAUTION 6” and “CAUTION 9”.
Figure 2
Screw
Figure 1
90°
