Mount Flexible Arm

This LCD monitor is designed for use with a ﬂexible arm.

1. Follow the instructions in how to

Remove Monitor Stand for Mounting.

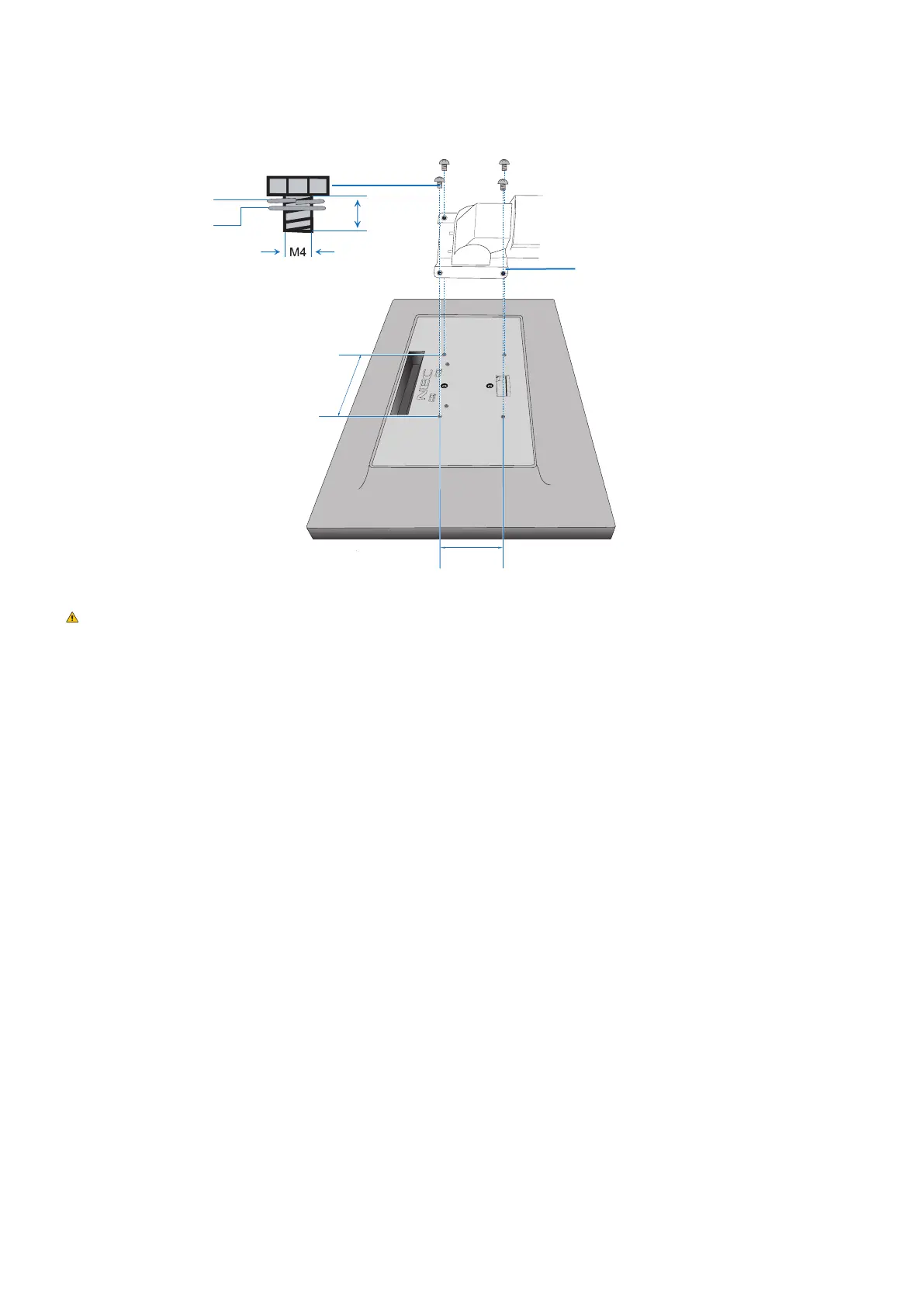

2. Using 4 screws that meet the speciﬁcations listed below, attach the arm to the monitor (Figure F.1).

Figure F.1

100 mm

Thickness of Bracket (Arm)

2.0~3.2 mm

12 mm

Spring washer

Flat washer

CAUTION:฀฀•฀Only฀use฀4฀M4฀sized฀screws฀when฀mounting฀to฀avoid฀damage฀to฀the฀monitor฀and฀stand.฀

•฀To฀fulll฀the฀safety฀requirements,฀the฀monitor฀must฀be฀mounted฀to฀an฀arm,฀which฀guaranties฀the฀necessary฀

stability under consideration for the weight of the monitor. The LCD monitor should only be used with an

approved arm (e.g. TUEV GS mark).

•฀Tighten฀all฀screws฀(recommended฀Fasten฀Force:฀98฀-฀137N•cm).

A loose screw may cause the monitor to fall off the arm.

•฀Attaching฀the฀exible฀arm฀should฀be฀done฀by฀two฀or฀more฀people฀if฀the฀monitor฀cannot฀be฀placed฀face฀down฀on

a ﬂat surface for installation.
