English-22

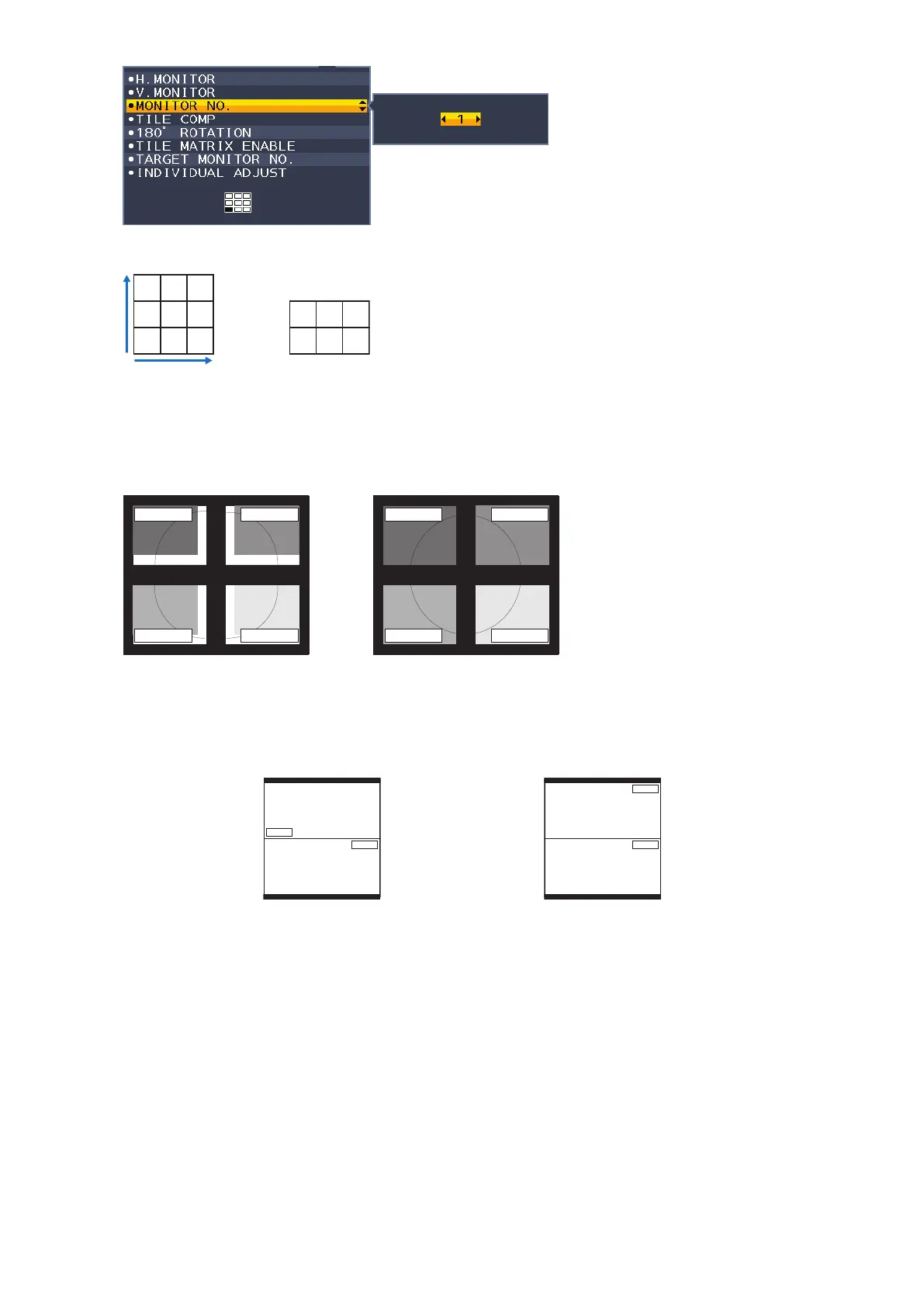

Sets master monitor to 1 then sets the other monitors (sub monitors) by following below order.
Example of installation and monitor number
1 2 3
4 5 6
1 2 3
4 5 6
7 8 9
H MONITOR 3
V MONITOR 3
H MONITOR 3
V MONITOR 2
TILE COMP
Works in tandem with TILE MATRIX to compensate for the width of the tile bezels in order to accurately display the
image.
TILE COMP with 4 monitors (black area shows monitor frames):
TILE COMP ONTILE COMP OFF
Monitor 1 Monitor 2
Monitor 3 Monitor 4
Monitor 1 Monitor 2
Monitor 3 Monitor 4
180° ROTATE
Rotates the image.
NOTE: When installing monitors in two stages, upper monitors can be installed upside down.
The installation method can minimize bezel distance between upper monitors and bottom monitors.
[180° ROTATE: OFF]
[180° ROTATE: OFF]
A
A
Monitor 1
Monitor 2
[180° ROTATE: ON]
A
A
Monitor 1
Monitor 2
[180° ROTATE: OFF]
TILE MATRIX ENABLE
Allows one image to be displayed over multiple screens. This feature can be used with up to 9 monitors (3 vertical and
3 horizontal). Using TILE MATRIX ENABLE requires the PC output signal be sent through a distribution amplifier to
each individual monitor.
TARGET MONITOR NO.
Controls a sub monitor’s OSD by using the master monitor’s control keys.
Sets the sub monitor number that is set at MONITOR NO. By touching the INPUT (SELECT) key, each sub monitor
displays its monitor number.
INDIVIDUAL ADJUST
ON: Controls an individual sub monitor from the master monitor.
Once ON is set, operation at the master monitor reflects to the sub monitor OSD.
To disable INDIVIDUAL ADJUST, please touch SELECT and EXIT keys simultaneously.
NOTE: Please connect monitors with the ControlSync cables.
