Display Setup
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output : Connect the DVI
signal cable to the connector of the display card in your system
(Figure 1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB
signal cable to the connector of the display card in your system
(Figure 2). Tighten all screws.
For MAC setup: Connect the Macintosh cable adapter to the
computer, then attach the 15-pin mini D-SUB signal cable to the
Macintosh cable adapter (Figure 3). Tighten all screws.
NOTE: To obtain the MultiSync Macintosh cable adapter, call
NEC Display Solutions of America, Inc. at (800) 632-4662.

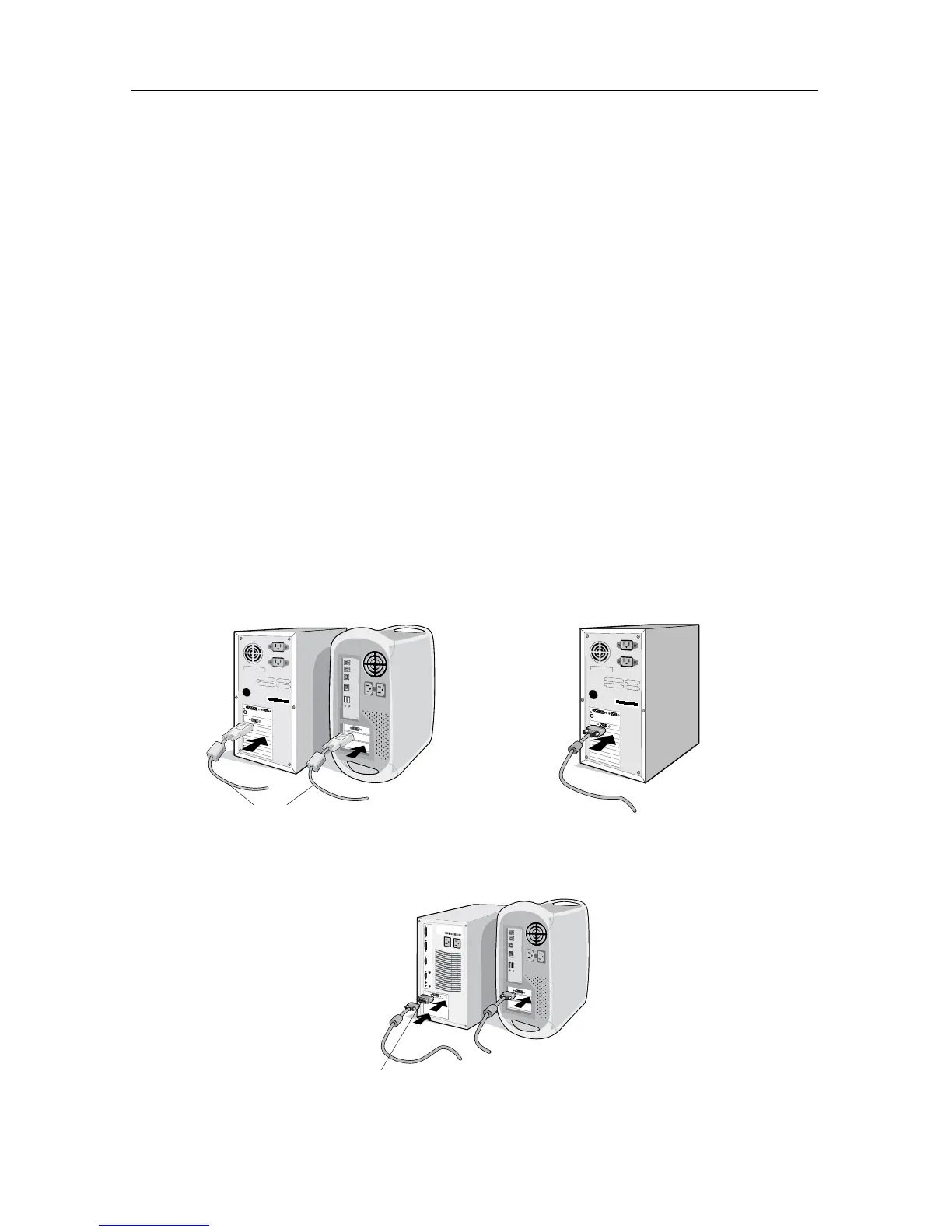

Figure 2Figure 1
DVI Signal Cable
Figure 3
Macintosh Cable Adapter
(not included)
Note: Some Macintosh systems do not
require a Macintosh Cable Adapter
To attach the MultiSync
®
LCD monitor to your system:
