NEC MultiSync V520

To attach the MultiSync V Series monitor to your
system, follow these instruction:
1 Turn off the power to your computer and MultiSync monitor.
2 If necessary, install the display card. For more information, refer to
the display card manual.
3 For the PC: Connect the 15-pin mini D-SUB of the captive signal
cable to the connector of the display card in your system (Figure A.1)
Tighten all screws.
For the Mac: Connect the MultiSync V520 or V720 Macintosh Cable
Adapter (not included) to the monitor connector on the Macintosh
(Figure B.1). Attach the 15-pin mini D-SUB end of the captive signal
cable to the Macintosh cable adapter on the computer (Figure B.1).
Tighten all screws.
4 Connect one end of the power cord to the MultiSync V Series
monitor and the other end to the power outlet (Figure C.1).
5 Turn on the monitor (Figure D.1) and the computer.
6 This completes the installation.
NOTE: If you have any problems, please refer to the
Troubleshooting section of this Users Manual.
Quick Start
E-2

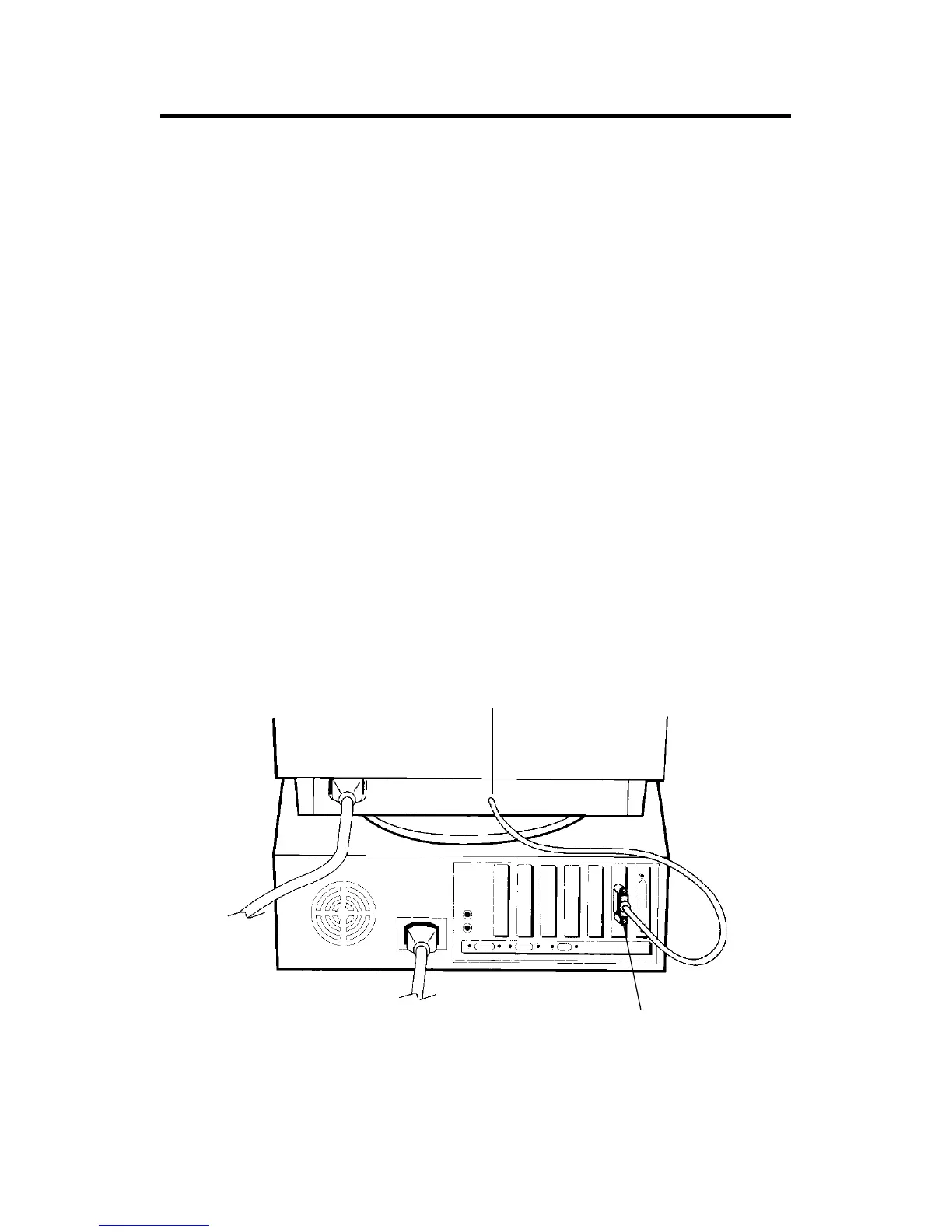

Figure A.1
15 pin mini D-SUB
Captive Signal Cable
