Cabinet Dimensions (continued)

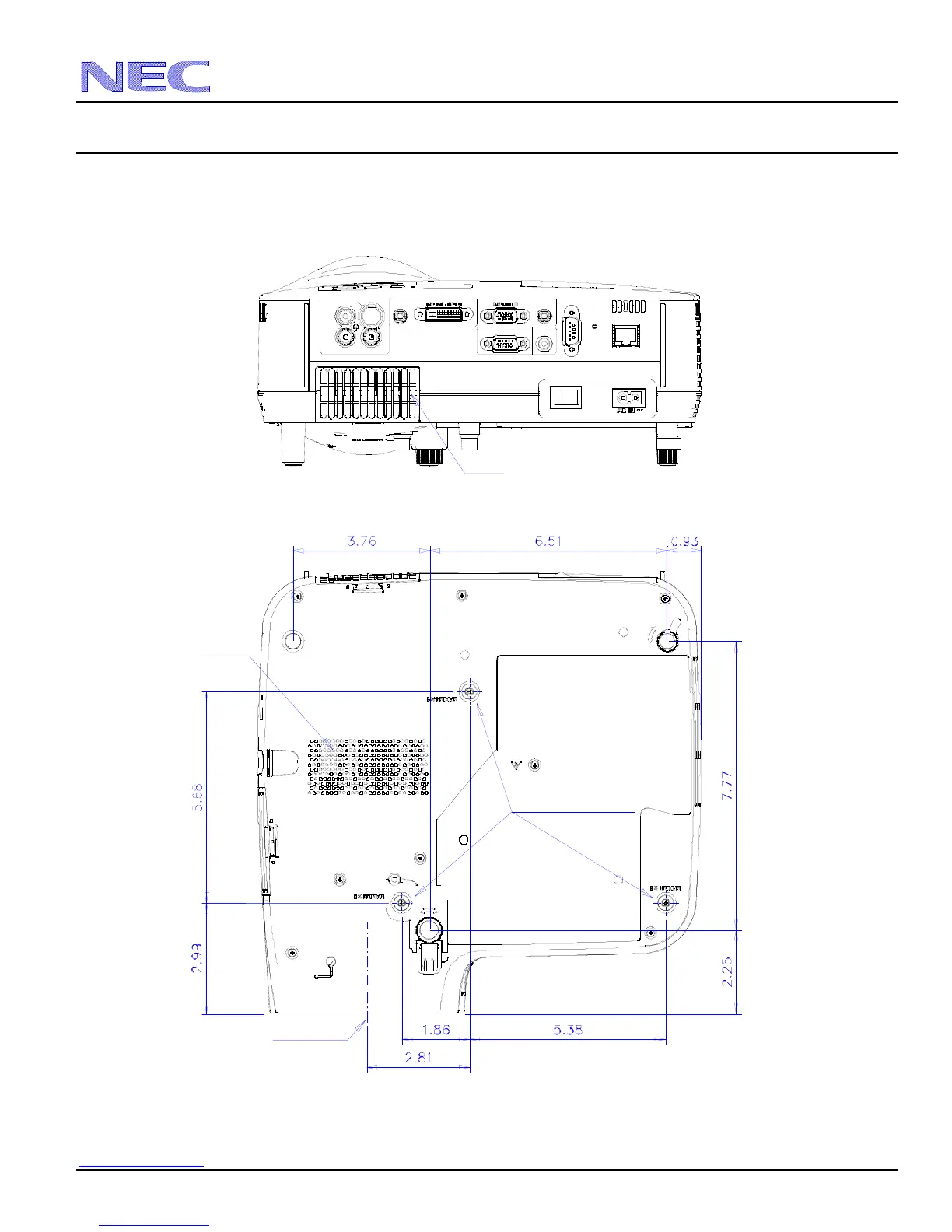

The following drawings show the cabinet dimensions.
Dimensions are in inches. For millimeters multiply by 25.4.
Lens Center
Exhaust
3 - M4*8 Max
for Ceiling Mount Kit
Intake
Filter
