NEC NP510WS - Page 4

NEC Display Solutions of America, Inc.
NP510WS Installation Guide
Ceiling Mounted and Desktop Rev 1.3
www.necdisplay.com NP510WS Page 4 of 7
Cabinet Dimensions (continued)

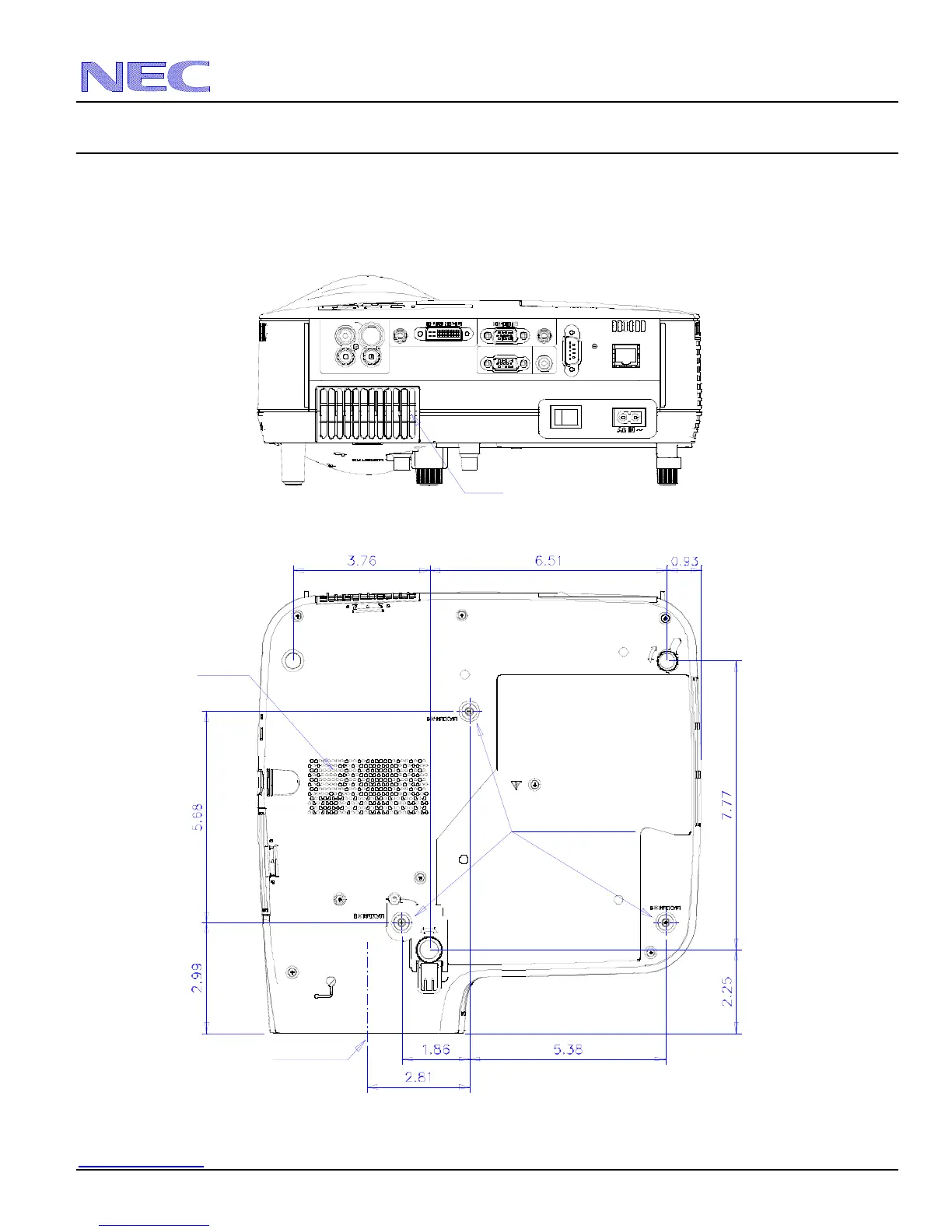

The following drawings show the cabinet dimensions.
Dimensions are in inches. For millimeters multiply by 25.4.
Lens Center
Exhaust
3 - M4*8 Max
for Ceiling Mount Kit
Intake
Filter
