4.
Continue to hold the battery release latch as you slide the battery out of the system.

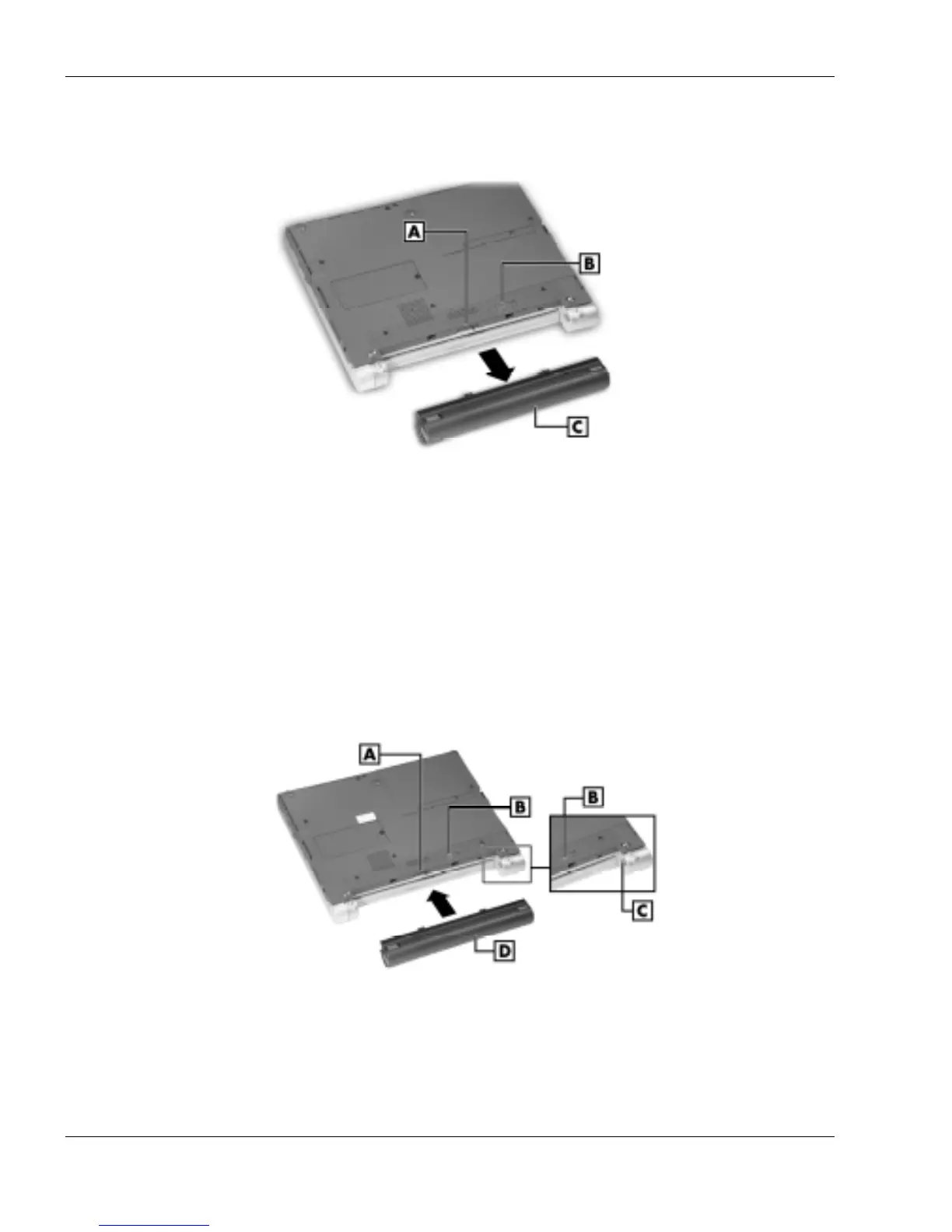

Removing the battery
A – Battery Bay Connectors C – Secondary Li-Ion Battery
B – Battery Bay Release Latch
5. Insert the new battery as follows:
! Locate the alignment grooves on the edge of the battery.
! Locate the alignment grooves inside the battery bay.
! Align the grooves on the battery with the grooves in the bay.
! Slide the battery into the bay until securely locked into place.
Inserting the battery
A – Battery Bay Connectors C – Alignment Grooves
B – Battery Bay Release Latch D – Secondary Li-Ion Battery
6. Turn over the system.
