WIM | QUICK REFERENCE GUIDE
2/4
SAFETY PRECAUTIONS
The following safety precautions must be observed during normal use, service and repair.
• Disconnect the power supply before opening the device.
• The WIM shall only be installed and serviced by qualified and trained personnel.
• The WIM can be powered from a low power, Class 2 power supply, in compliance with local regulations.
• To be sure of safety, do not modify or add anything other than mentioned in this manual or indicated by
NEDAP N.V.
KEY FEATURES

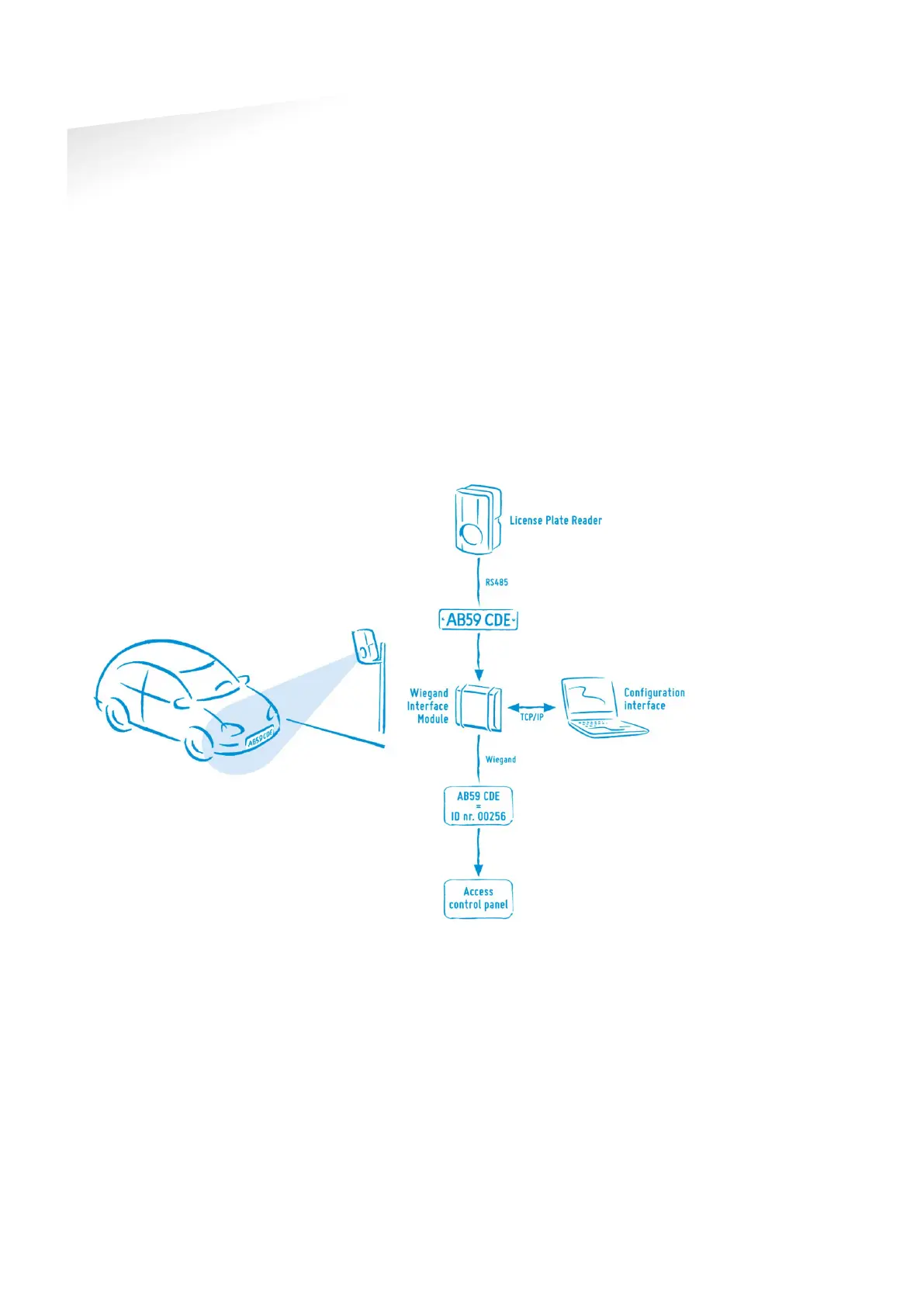

The Wiegand Interface Module (WIM) is developed to be used in combination with the License Plate Reader. The
WIM will convert the license plate string into a Wiegand output message. The Wiegand interface is supported by
many access control systems.
• Converts a license plate into a Wiegand output message.
• Contains a match-list in which license plates and corresponding Wiegand output numbers are found.
• Supports a sophisticated algorithm to convert license plates into "unique" Wiegand output numbers.
• RS485 interface to connect the NEDAP ANPR.
• LAN – TCP/IP interface to configure the device and manage the match-list
