Installation en
15

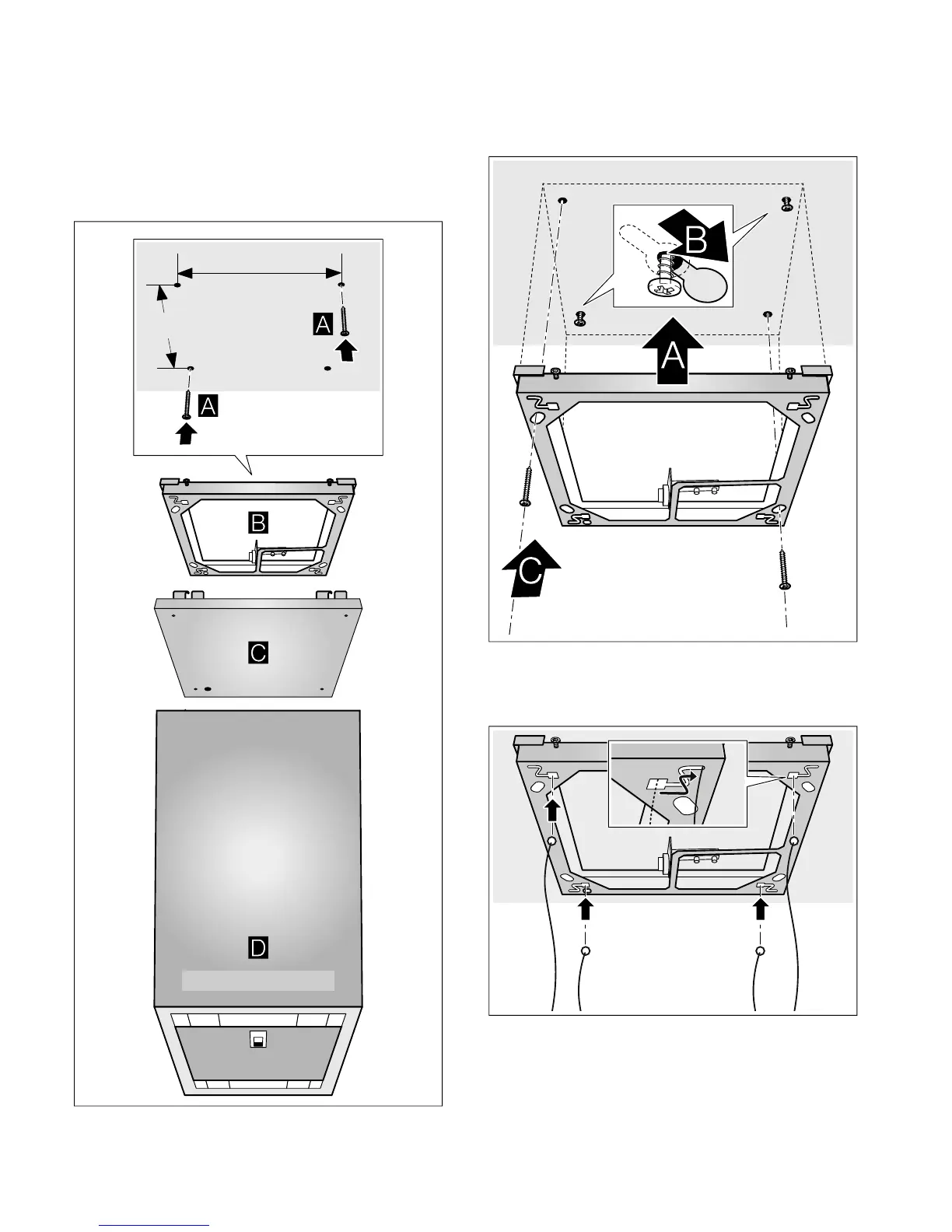

Fitting the frame
1. Screw in the two bolts, leaving them protruding out
of the ceiling by 5 - 9 mm ¨.
Note: Make sure that the bolts ¨, frame ©, frame
cover ª and control « are positioned correctly
relative to one another. The position of the control is
marked on the template.
2. Insert the two bolts on the ceiling through the
openings provided in the frame ¨. Move the frame
to allow the bolts to be screwed into the keyhole
openings ©.
3. Use two more bolts to screw the frame in place. ª
Tighten all the bolts fully.
4. Insert the four cables into the openings provided in
the frame and thread them through the labyrinth.
