Installation en
17

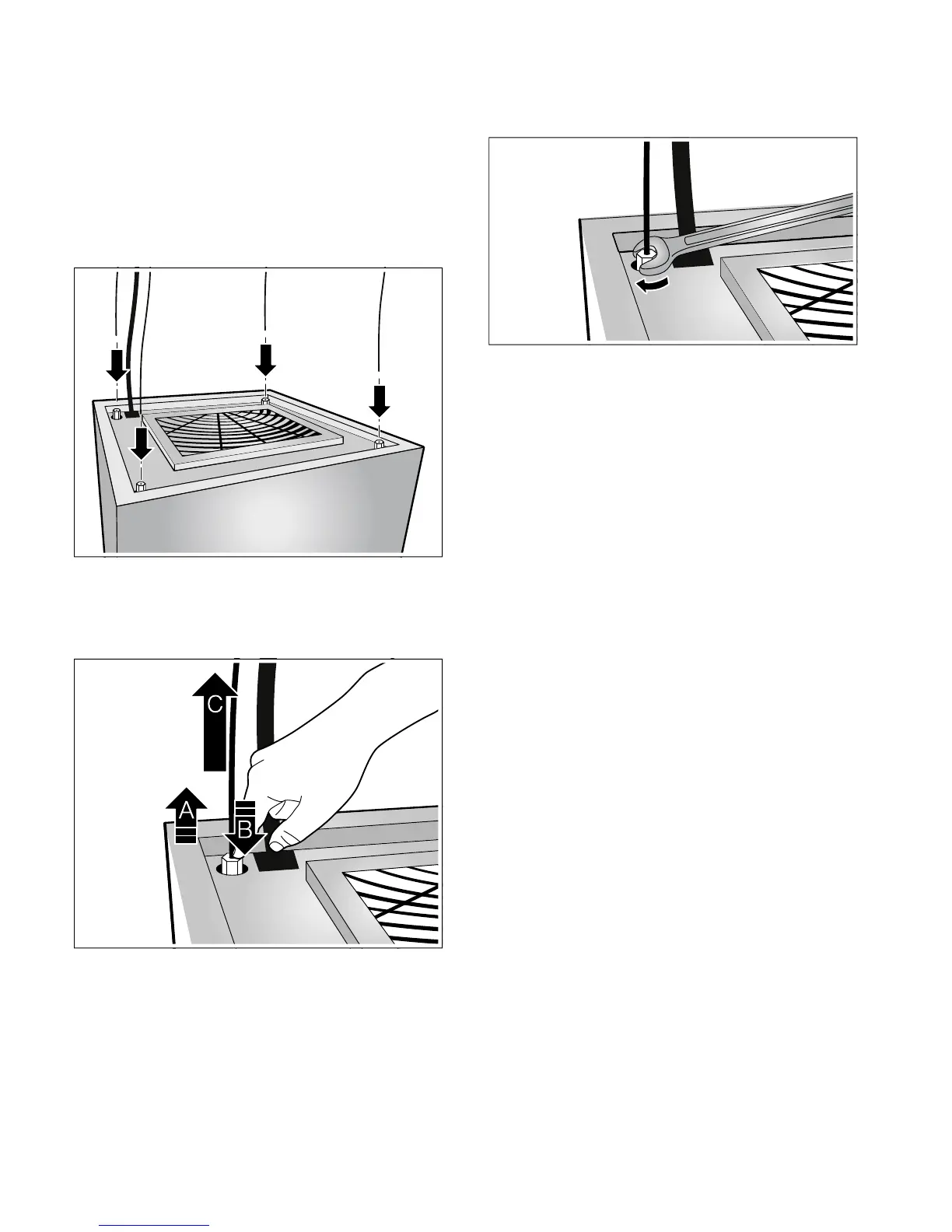

Attaching and aligning the appliance
1. First tighten the turnbuckles with an open-ended
spanner, and then turn them approximately four
times to open them.
Note: Do not open the turnbuckles fully, otherwise
they may fall inside the appliance.
2. Enlist the help of a second person to lift the
appliance and thread the cables into the turnbuckles
on the top of the machine.
Note: Never shorten the cables.
3. Taking care to comply with the safety clearances,
slide the appliance up and level it.
4. If you need to position the appliance lower down, lift
it up ¨, push the turnbuckles down © and pull the
cables back out of the turnbuckles ª.
5. Once you have repositioned the appliance, use an
open-ended spanner (WAF 7) to tighten the
turnbuckles.
