en Positioning and connecting
18
Installing the appliance in a kitchenette
:Warning
Risk of death!
There is a risk of electric shock if you touch live components.
Do not remove the appliance covering plate.
Notes
■ Recess width of 60 cm required.
■ Only install the appliance underneath a continuous worktop that is securely
connected to adjacent cabinets

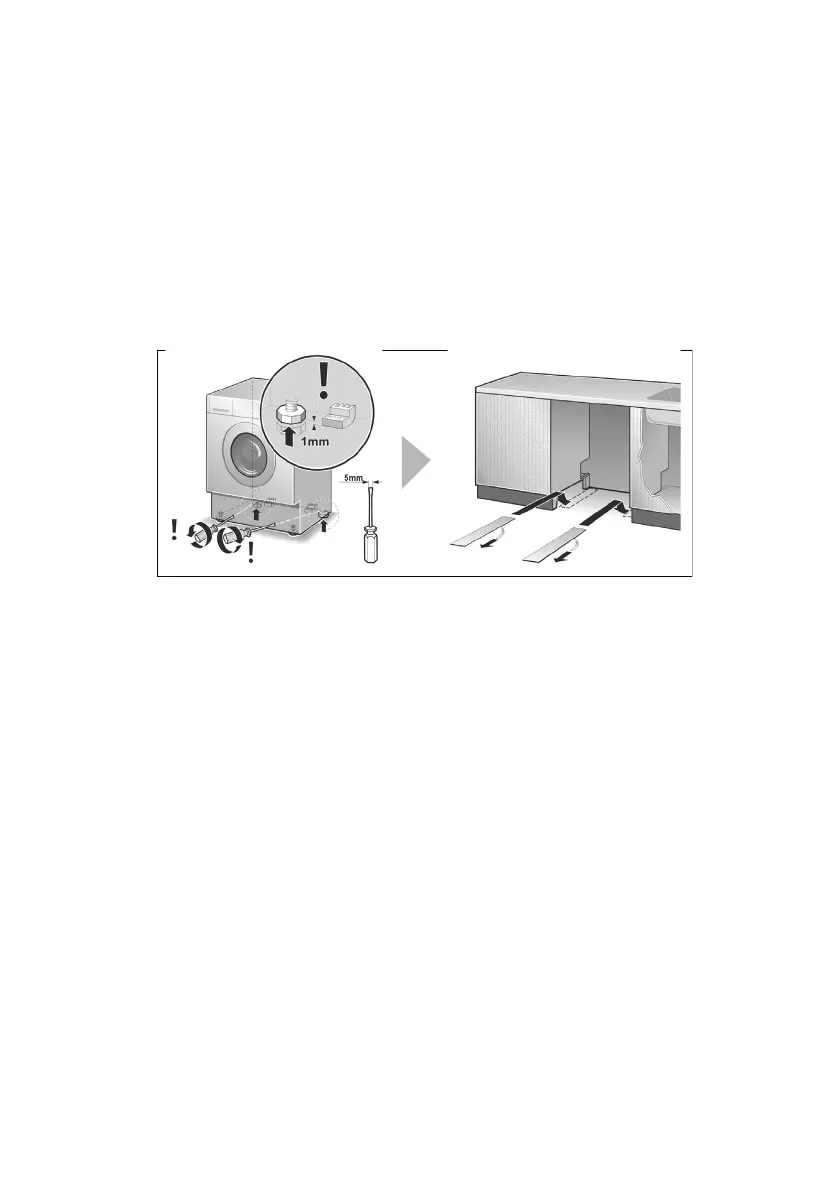

Slide sheets make it easier to slide the washing machine into the installation recess.
Notes
■ Can be ordered from the after-sales service, spare part no. 66 1827.
■ Moisten the slide sheets with a mixture of water and washing-up liquid before
sliding the washer-dryer into place. Do not use grease and/or oil.
