Nelson 760-24 - Installation in Freezing Climates - Protecting Vertical Waterline

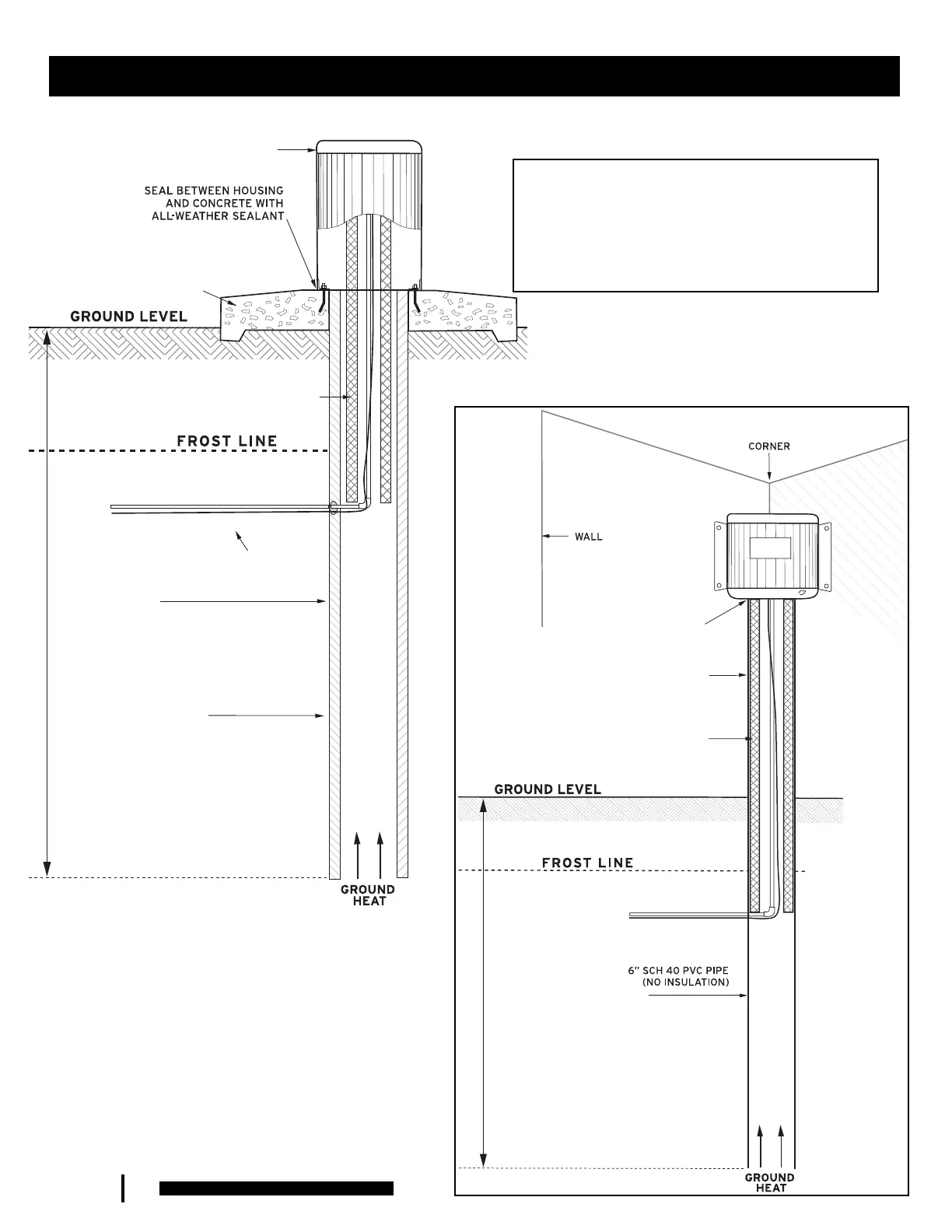

DEPTH OF HOLE BELOW WATERER
DEPENDS ON DEPTH OF FROST LINE.
HOLE SHOULD EXTEND DOWN 4-6 FEET
BELOW THE FROST LINE
WALL
6“ SCH 40 PVC PIPE 6.625” OD EXTEND
NO MORE THAN 1/2” THROUGH
BOTTOM PLATE INTO WATERER
WATER &
ELECTRIC LINES
730-10C
NELSON WATERLINE
INSULATION ACCESSORY #1004.
EXTEND NO MORE THAN 1/2” THROUGH
BOTTOM PLATE INTO WATERER
SEAL AIR GAP BETWEEN
BOTTOM PLATE AND
6” SCH 40 PVC PIPE WITH
ALL-WEATHER SEALANT
DEPTH OF HOLE BELOW
WATERER DEPENDS ON
DEPTH OF FROST LINE.
HOLE SHOULD EXTEND
DOWN 4-6 FEET BELOW
THE FROST LINE
WATER AND ELECTRIC LINES
* DRAIN PIPE:
MODEL 730-24 – 8” ID DRAIN PIPE
MODEL 760-24 – 10” ID DRAIN PIPE
* PVC OR ADS CORRUGATED
NON-PERFORATED PIPE TO KEEP HOLE
FROM FILLING WITH DIRT
.
NO INSULATION BELOW
HORIZONTAL WATERLINE
CONCRETE PAD
NELSON WATERLINE INSULATION
ACCESSORY #1004. LEAVE 2” AIR
GAP BETWEEN INSULATION AND
HEATER ASSEMBLY IN WATERER.
TOP COVER
CASTING
Installation In Freezing Climates - Protecting Vertical Waterline
ALWAYS TURN OFF ELECTRICITY TO WATERERS:
1. after winter season when temperatures are
consistently above freezing.
2. when using a tool to service or maintain waterer.
WALL-MOUNT MODEL
FREE-STANDING MODEL
8
