17

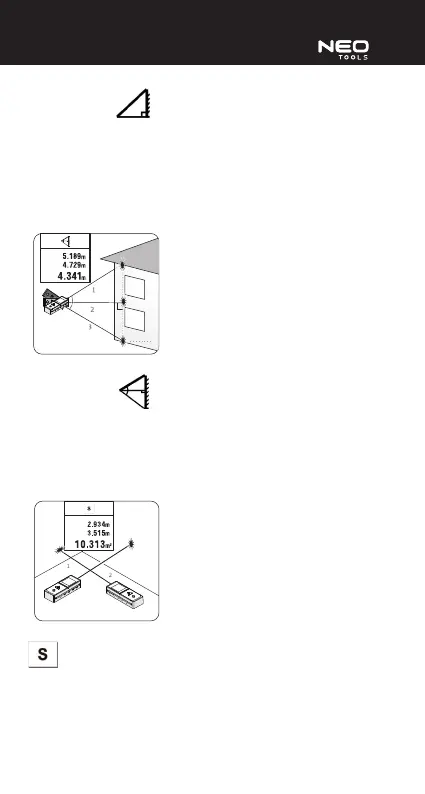

Switch on the device and swipe left/right to choose the indirect height
measurement mode
. Scroll up/down and choose measurement unit and
the measurement reference point.
Determine height by measuring the upper triangle side that is shown in red on the
range nder screen. Press the measurement button (2) to make the measurement.
Next measure the bottom (cathetus) side of the triangle in the same way. The result
given is the distance between abovementioned measurement points.
INDIRECT THREE-POINT HEIGHT MEASUREMENT (USING PYTHAGOREAN
THEROEM)
Switch on the device and swipe left/right to choose the indirect three-point height
measurement mode
. Scroll up/down and choose measurement unit and
the measurement reference point.
Determine height by measuring the upper triangle side that is shown in red on the
range nder screen. Press the measurement button (2) to make the measurement.
Next measure the middle and the bottom side of the triangle in the same way.
The result given is the distance between the rst and the last measurement point.
HOW TO MEASURE AREA
Switch on the device and swipe left/right to choose the area measurement mode
Scroll up/down and choose measurement unit and the measurement
reference point.
The area measurement mode is used to measure rectangular areas. Press the
measurement button (2) to measure one of the sides of a rectangle. Make the
measurement of the second rectangle side in the same way. The result shown is
the rectangle area.
