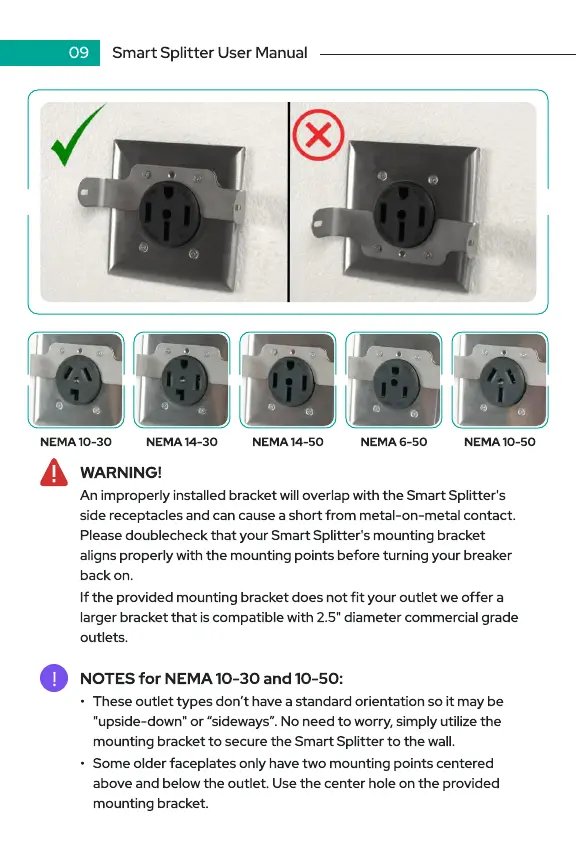

09 smart splitter user manual
!
Notes for NEMA 10-30 and 10-50:
These outlet types don’t have a standard orientation so it may be
"upside-down" or “sideways”. No need to worry, simply utilize the
mounting bracket to secure the Smart Splitter to the wall.
Some older faceplates only have two mounting points centered
above and below the outlet. Use the center hole on the provided
mounting bracket.
An improperly installed bracket will overlap with the Smart Splitter's
side receptacles and can cause a short from metal-on-metal contact.
Please doublecheck that your Smart Splitter's mounting bracket
aligns properly with the mounting points before turning your breaker
back on.
If the provided mounting bracket does not fit your outlet we offer a
larger bracket that is compatible with 2.5" diameter commercial grade
outlets.
WARNING!
NEMA 10-30 NEMA 14-50 NEMA 6-50 NEMA 10-50NEMA 14-30
