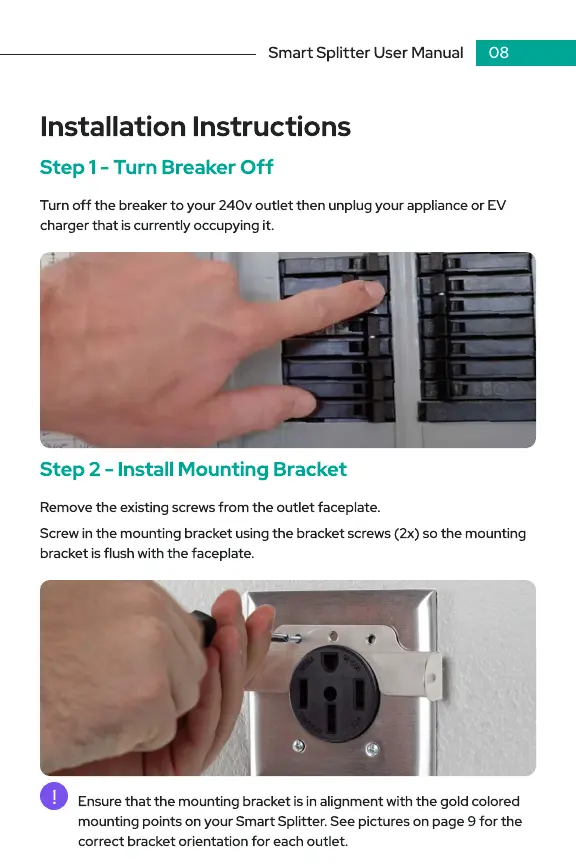

Installation Instructions
smart splitter user manual 08
Step 1 - Turn Breaker Off
Turn off the breaker to your 240v outlet then unplug your appliance or EV
charger that is currently occupying it.
Step 2 - Install Mounting Bracket
Remove the existing screws from the outlet faceplate.
Screw in the mounting bracket using the bracket screws (2x) so the mounting
bracket is flush with the faceplate.
Ensure that the mounting bracket is in alignment with the gold colored
mounting points on your Smart Splitter. See pictures on page 9 for the
correct bracket orientation for each outlet.
!
