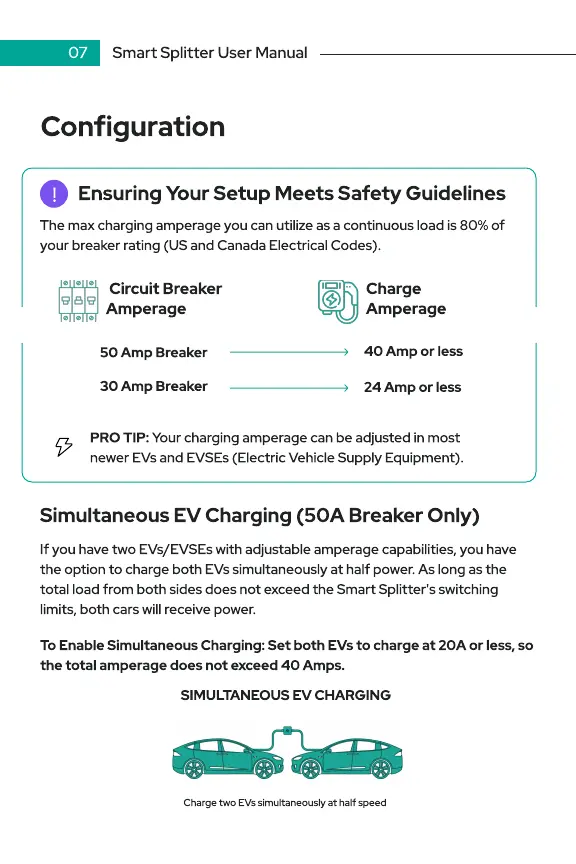

07 smart splitter user manual
The max charging amperage you can utilize as a continuous load is 80% of
your breaker rating (US and Canada Electrical Codes).
Ensuring Your Setup Meets Safety Guidelines
Simultaneous EV Charging (50A Breaker Only)
If you have two EVs/EVSEs with adjustable amperage capabilities, you have
the option to charge both EVs simultaneously at half power. As long as the
total load from both sides does not exceed the Smart Splitter's switching
limits, both cars will receive power.
To Enable Simultaneous Charging: Set both EVs to charge at 20A or less, so
the total amperage does not exceed 40 Amps.
Charge two EVs simultaneously at half speed
SIMULTANEOUS EV CHARGING
Circuit Breake
Amperage
50 Amp Breaker
30 Amp Breaker
40 Amp or less
24 Amp or less
Charg
Amperage
!
Configuration
P
RO TI
P
:
Y
our charging amperage can be adjusted in most
newer EVs and EVSEs (Electric Vehicle Supply E
q
uipment)
