BS Plug Wiring
Wiring Instructions: Should it be necessary to change the plug please note
the wires in the mains lead are coloured in accordance with the following
code:
BLUE - NEUTRAL
BROWN - LIVE
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
plug, proceed as follows:
1. The BLUE wire is the NEUTRAL and must be connected to the terminal
that is marked with the letter N or coloured BLACK.
2. The BROWN wire is the LIVE and must be connected to the terminal that
is marked with the letter L or coloured RED.
3. Neither wire is to be connected to the terminal which is marked with the
letter E or earth symbol , coloured GREEN or GREEN/YELLOW.
4. Always ensure that the cord grip is positioned and fastened correctly.
If a 13A (BS 1363) fused plug is used it must be fitted with a 13A (BS 1362)
fuse. If in doubt consult a qualified electrician.

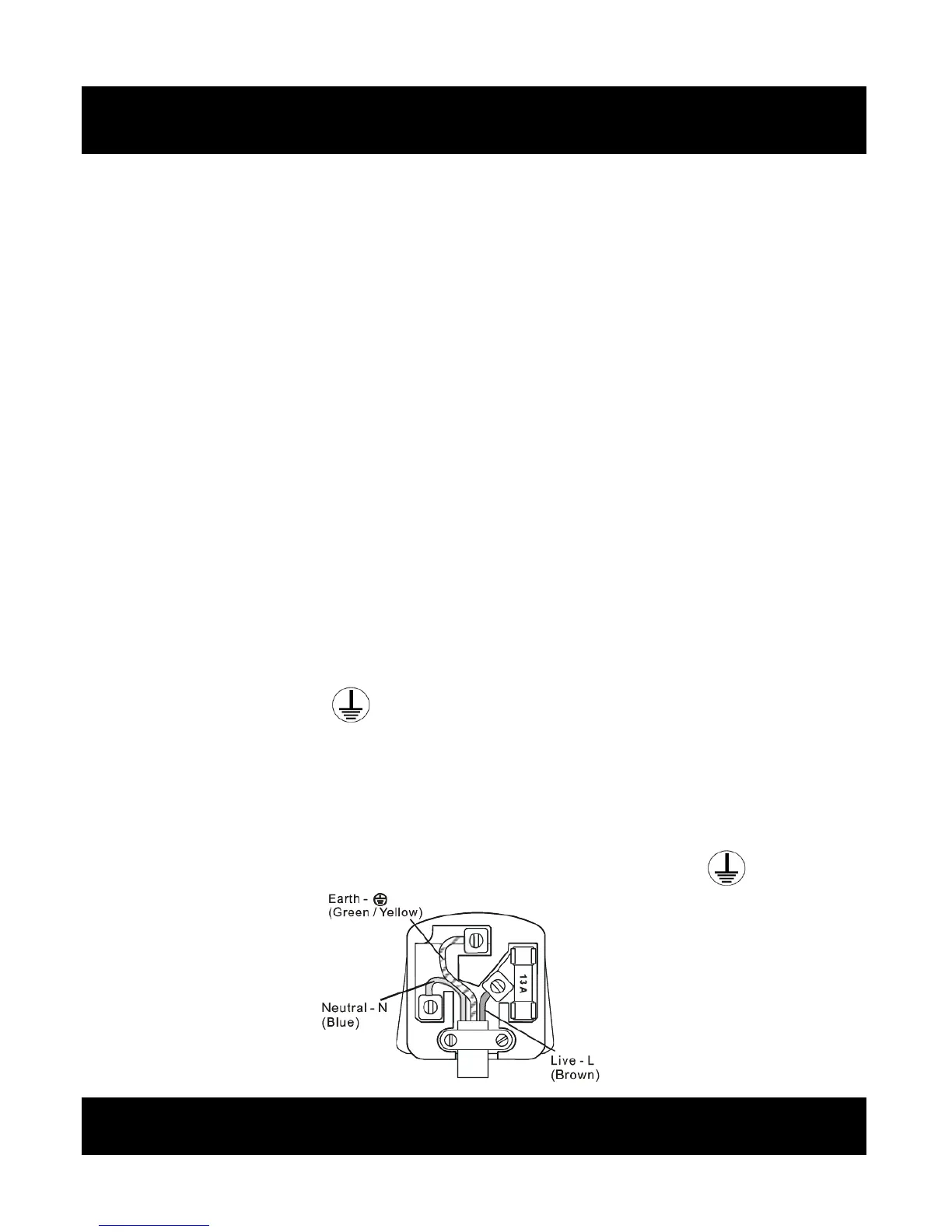

Wiring for a 13 Amp plug (BS 1363)
The Earth Terminal is marked with the letter E or Earth Symbol
