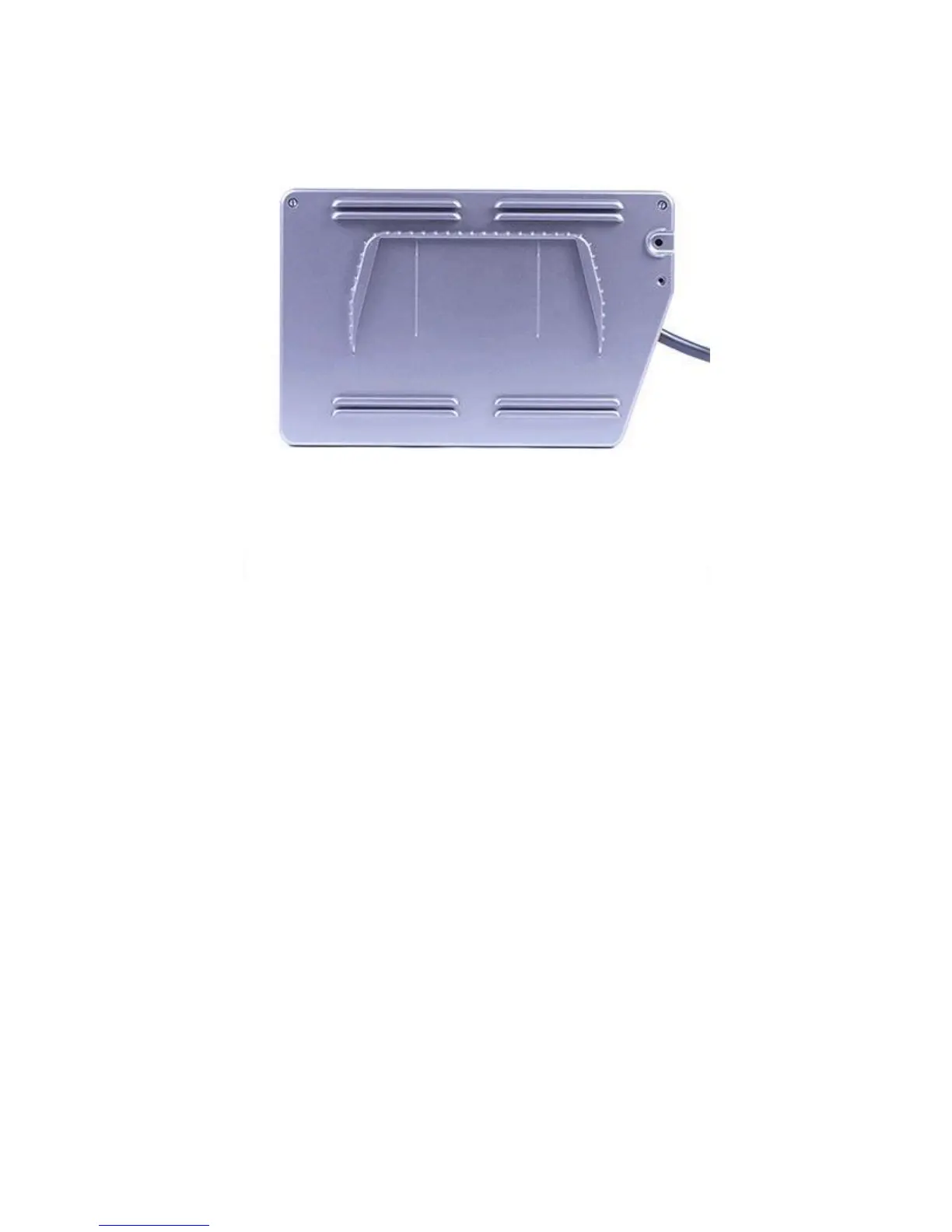

Mounting the Energy Bar (EB832)
Align the mounting bracket template.
Mark the holes and attach the mounting bracket.
Template & Tips
Allow approximately 1″ or more clearance above the EB832 to have the the
ability to install and remove the Energy Bar from its mount. Allow 3″ on the
left lower corner of the EB832 for connecting AquaBus and other cables.
Leave 1-2″ of space for the fan on the right side of the EB832
If mounting the EB832 into sheetrock or concrete, please use the proper
mounting hardware (not supplied)
