Assembly Instructions
CAUTION
Installing the Seat incorrectly will result
in lack of data pickup during rowing.
Rear Leg
Seat Rail

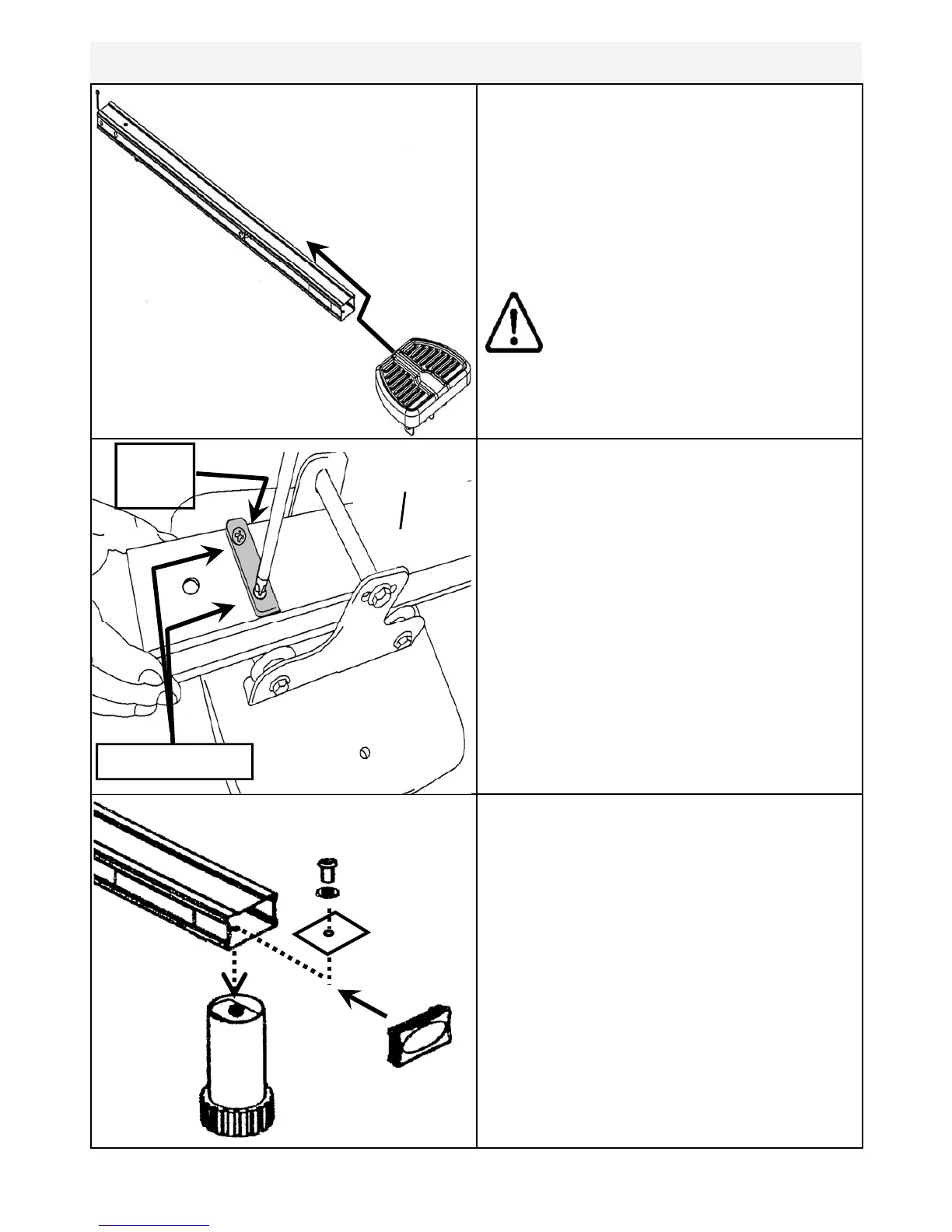

Install Rower Seat[2] onto Seat Rail[3],
with widest part of seat rearward.
Turn Seat Rail over, and install the Rear
Rubber Bumpstop[20] using 2x
M6x10mm screws[21] with beveled
edge facing forward.
Using the M10x25mm Bolt[19],
11x21x2T Washer[9], Seat Rail Internal
Support Bracket[22] and Rear Leg[17],
install as shown. Once Rear Leg is tight-
ened, install the Rear Rubber End Cap
[18].
Rower Seat
Underside of
Seat Rail
Beveled
edge
M6x10mm Bolts
To Next Page
