3. Twist the register approximately ¼ turn counter-clockwise and remove it from the meter.

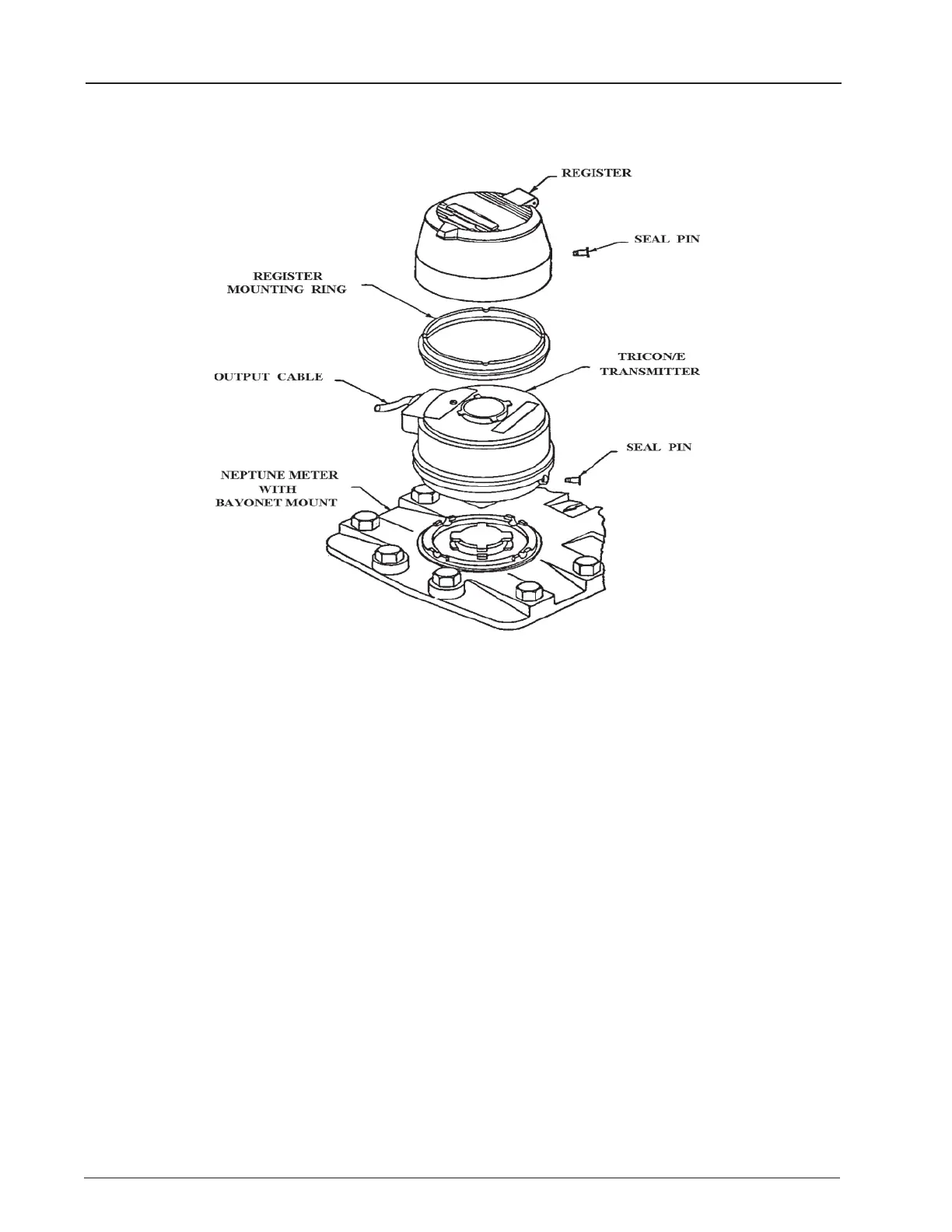

Figure 6 – Mounting the TRICON
®
Transmitter
4. Position the TRICON transmitter on the meter and twist it clockwise until it locks into place.
5. Place the register mounting ring on top of the TRICON transmitter with the four rounded
grooves facing upward.
6. Align the notch in the base of the register mounting ring with the terminal cover of the
TRICON and snap the ring into place. When properly oriented, the register mounting ring
should sit flush on top of the TRICON transmitter.
7. Position the register on top of the TRICON transmitter and register mounting ring, and
twist it clockwise until it locks into place.
8. Drive the new seal pins into the register base and TRICON base to secure the installation
and prevent tampering.
14 TRICON
®
E/E2/E3 Installation and Maintenance Guide
Chapter 3: Installing the Transmitter
