6.6 MOTOR FAN REMOVAL AND REPLACEMENT
Switch-off the oven and disconnect it from the electrical network before replacing the motorfan.
Replace the motorfan with one having the same voltage and electrical power characteristics.

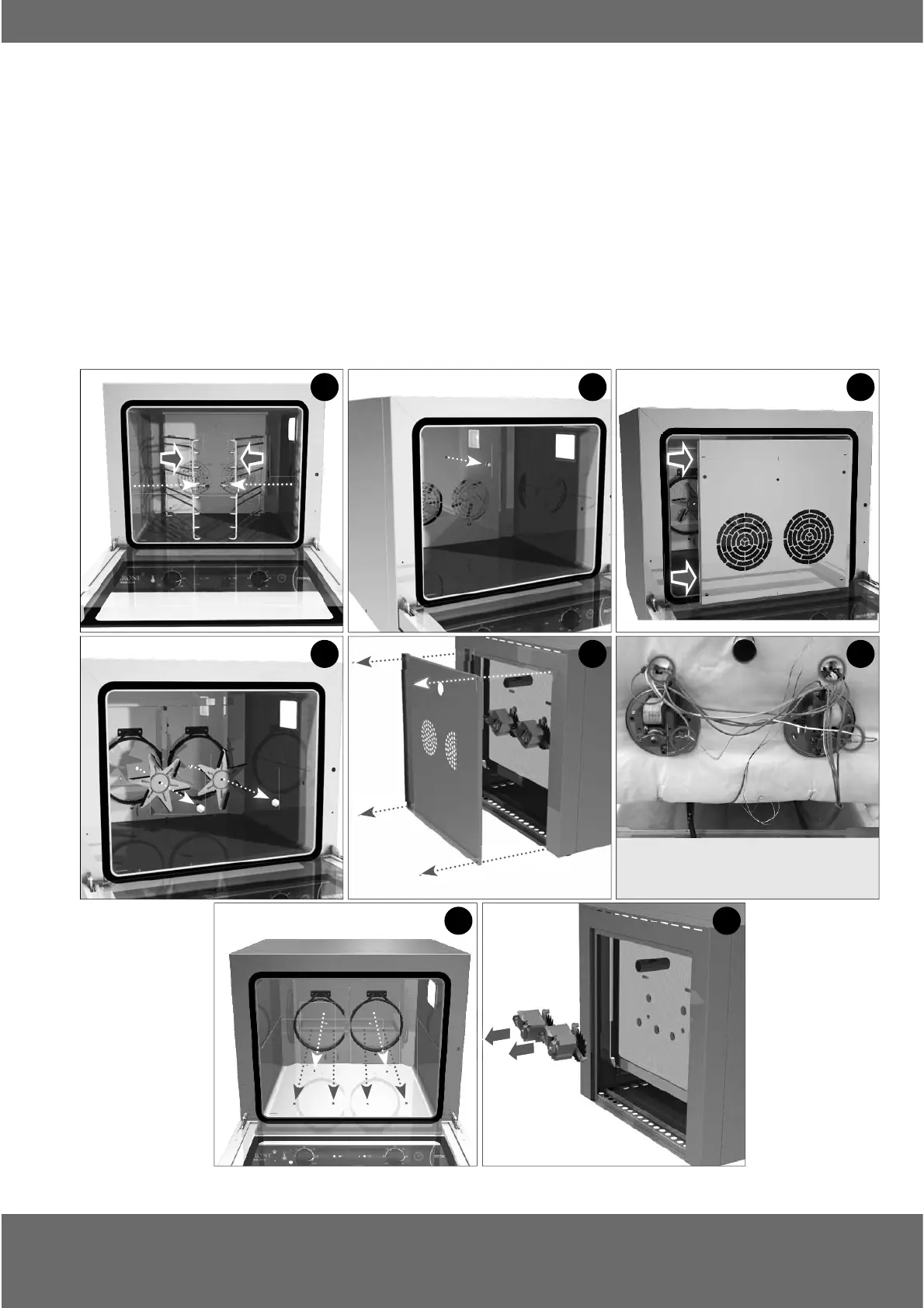

1) Unscrew manually the 2 mounting pawls of the internal baking pans supports and extract them delicately.
2) With an Allen wrench No. 5 unscrew the central screw that fi xes the fans protection.
3) Remove delicately the fans protection (fan casing).
4) Unscrew the 2 nuts fi xing the fans to the 2 motors and extract the 2 fans.
5/6) Remove the rear back of the oven and disconnect the wires that connect the resistances and the motors.
7/8) Unscrew the 3 fi xing screws, for each motor, located inside the cooking chamber and extract it delicately
from the rear.
Replace the motor and reassemble the oven components by carrying out inversely the procedure described above.
