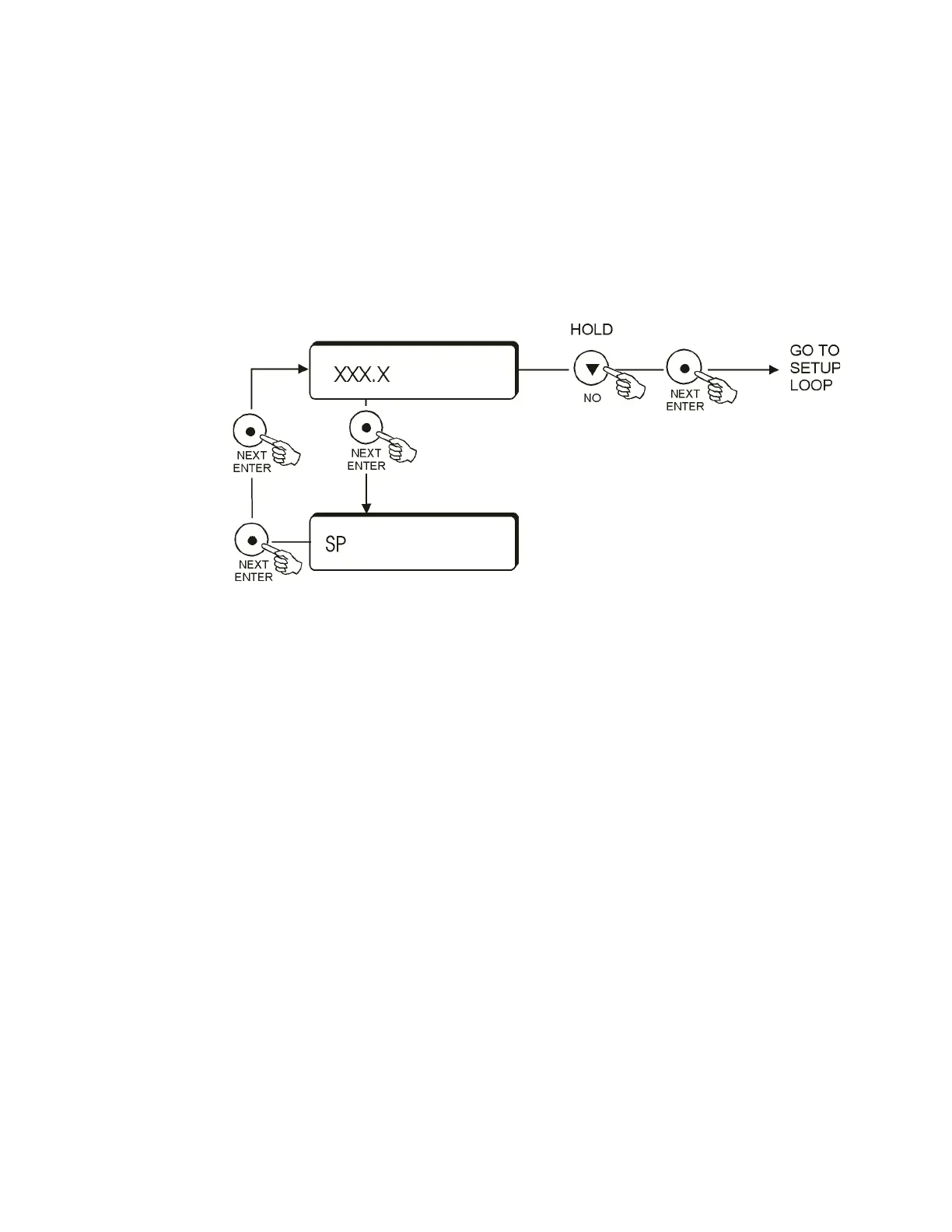

Figure 1 Operator's Loop
XXX.X = Reservoir Fluid Temperature
SP = Setpoint
Operator's Loop
When the controller is first powered up it enters the Operator's Loop, displaying
reservoir fluid temperature. Press the NEXT ENTER key to view the setpoint.
SP displays the controller setpoint. The display will flash between SP and the
actual setpoint number. Use the YES/NO keys to change the setpoint value.
Once the desired setpoint is displayed, press the NEXT ENTER key twice.
NOTE: If the bath is controlled via RS232 communications, the setpoint can
not be changed from the keypad.
To Next Page
