- 23 -

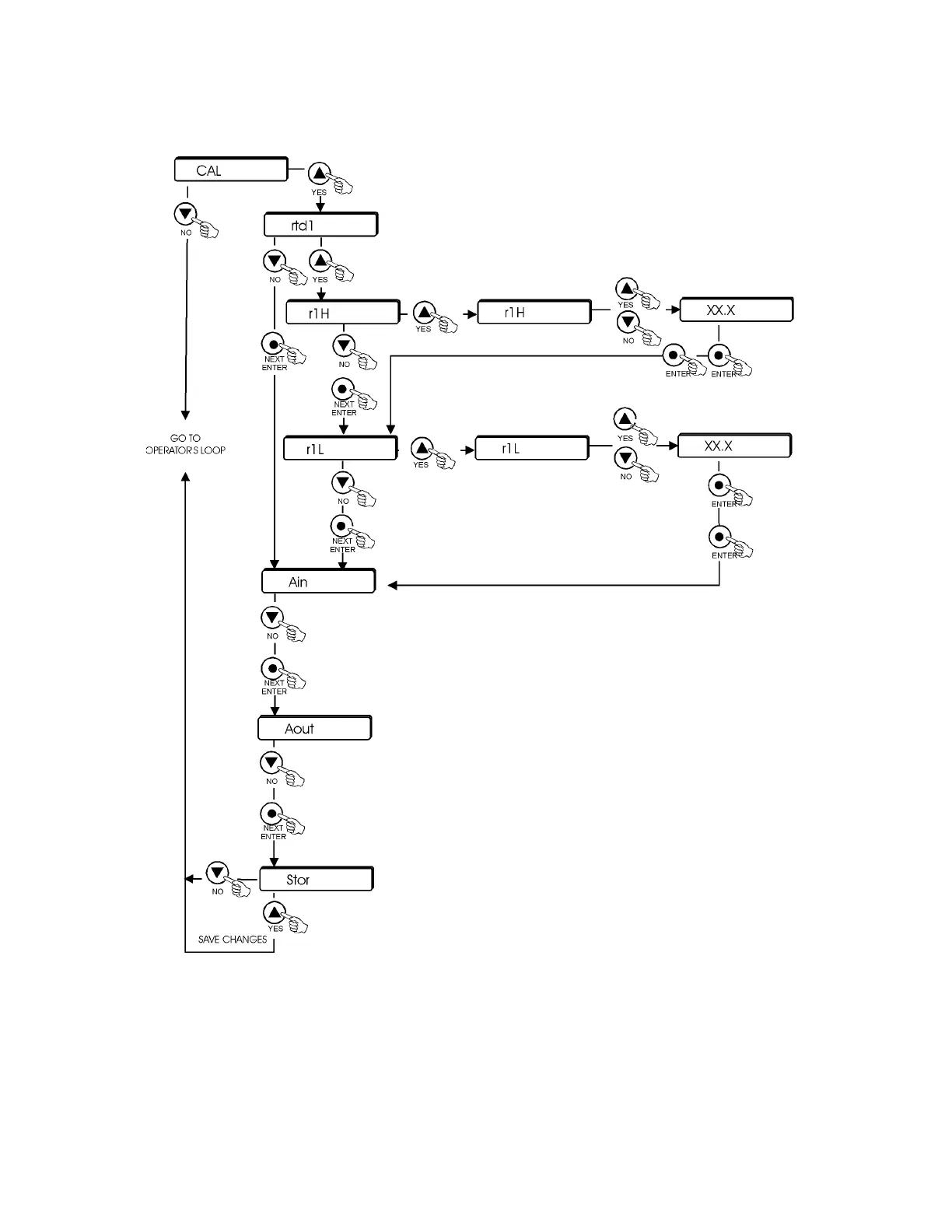

Figure 4 Calibration Loop
rtd1 = Internal sensor
rtd2 = remote sensor
r1H = High temperature
r1L = Low temperature
Ain = NA for this unit
Aout = NA for this unit
Stor = Store
