User’s Manual
17
JOG/SHUTTLE

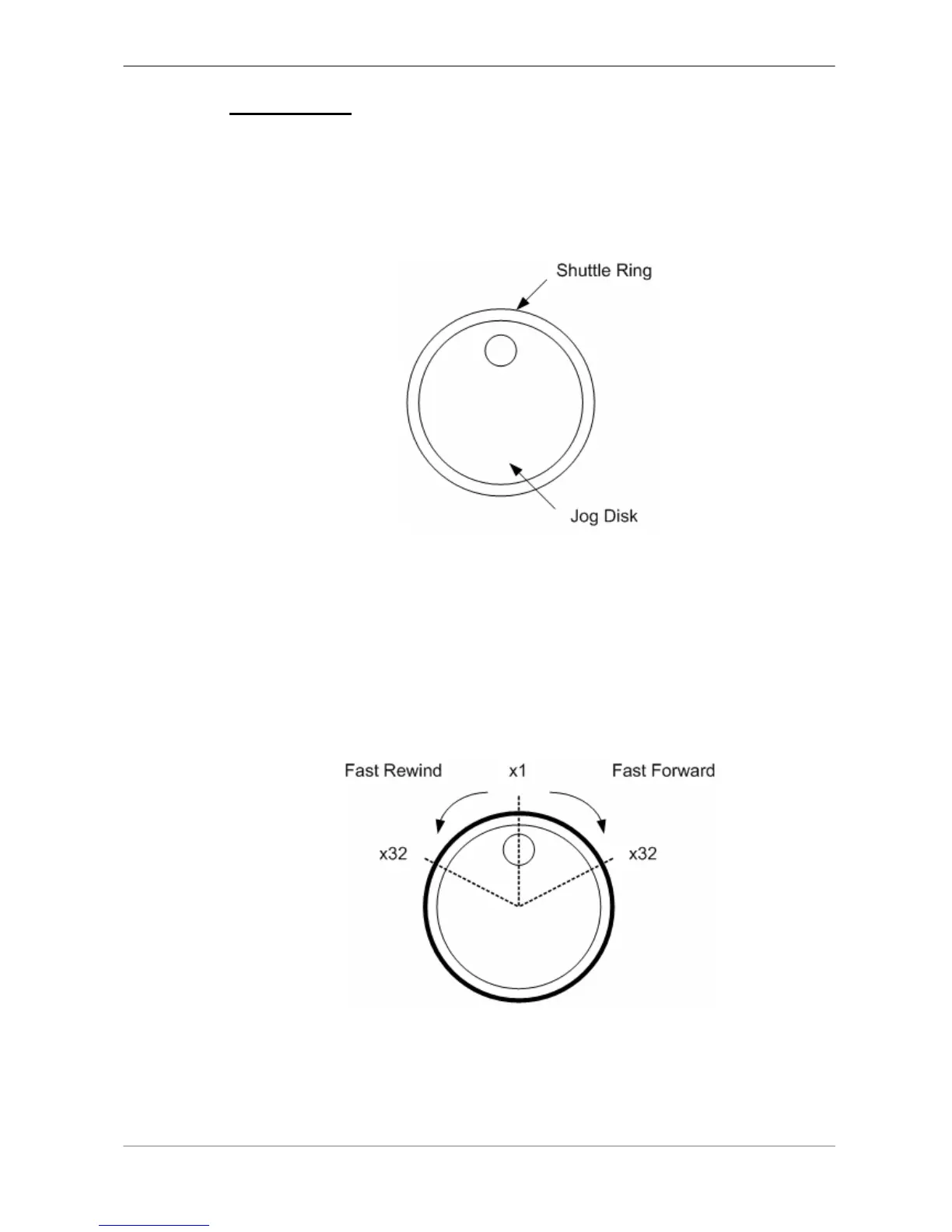

The jog/shuttle knob, shown as below figure, is a combination of a shuttle ring
with an embedded jog disk, which is used to provide wide latitude in playback
control. Note that the jog/shuttle knob is active only when the DVR unit has
been in Playback mode.
y While playing back video, you can use the shuttle ring to select different
speed of forward and backward playing. Rotating the shuttle ring
counterclockwise causes the unit to playback into faster forward/
backward playing speed. According to the angle you rotate the shuttle ring,
you can choose the playing speed from 1×, 2×, 4×, 8×, 16×, and 32×, in
both forward and reverse directions, shown as below figure:
