Netafim Arkal 2” Spin-Klin Compact Stand Alone Filter User Manual

2” Spin Klin
Seasonal Maintenance – Cleaning the Discs
When manual cleaning of the discs is required, please follow the steps described below:
Make sure that system is not under
pressure! Release the clamp and remove
the cover. (Figure 1)
Unscrew the butterfly-nut on the
filtration element. (Figure 2)
Remove the tightening cylinder. (Fig. 3)
Remove the discs (for convenience we
recommend using a plastic bag) (Figure 4,
5). Tie each set on a string and place
them in a cleaning solutions (HCL,
Chlorine, or other) refer to “Cleaning
Recommendations Clogged Filtration
Discs”. Thoroughly wash the discs with
fresh water and then reassemble the
discs on the spines. (Figure 6)
Check that the correct quantities of discs
are assembled on the spine: when the
discs are pressed with two hands, the top
disc should be level with the imprinted
circle on the outside of the spine (Figure
7). Put on the tightening cylinder and
tighten the butterfly-nut, (Figure 8, 9)
Reassemble the filter cover and tighten
the clamp. (Figure 10, 11)

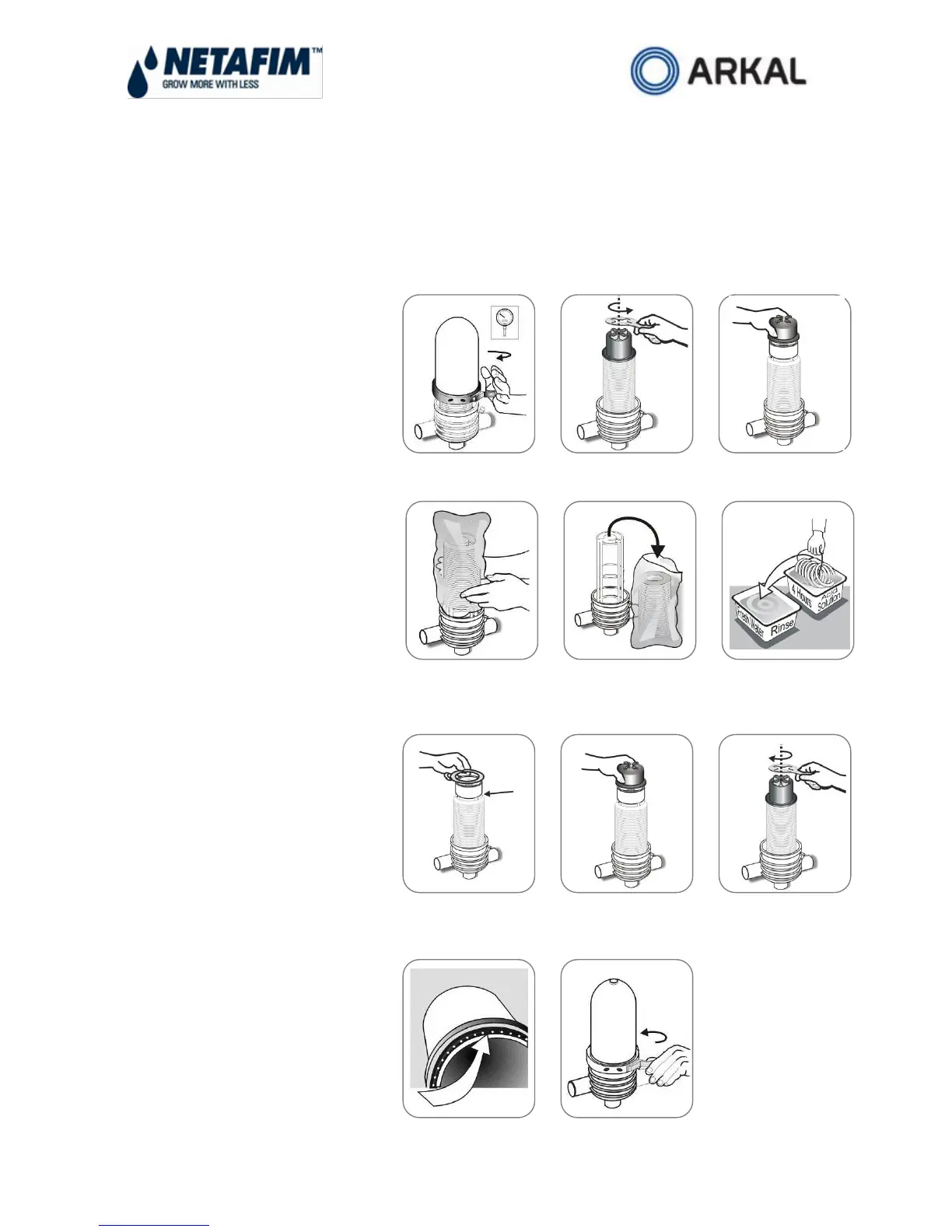

Figure 1
